Запчасти Case IH 9240 (41.200.AT[02]) - HYDRAULIC SYSTEM, STEERING (41) - STEERING

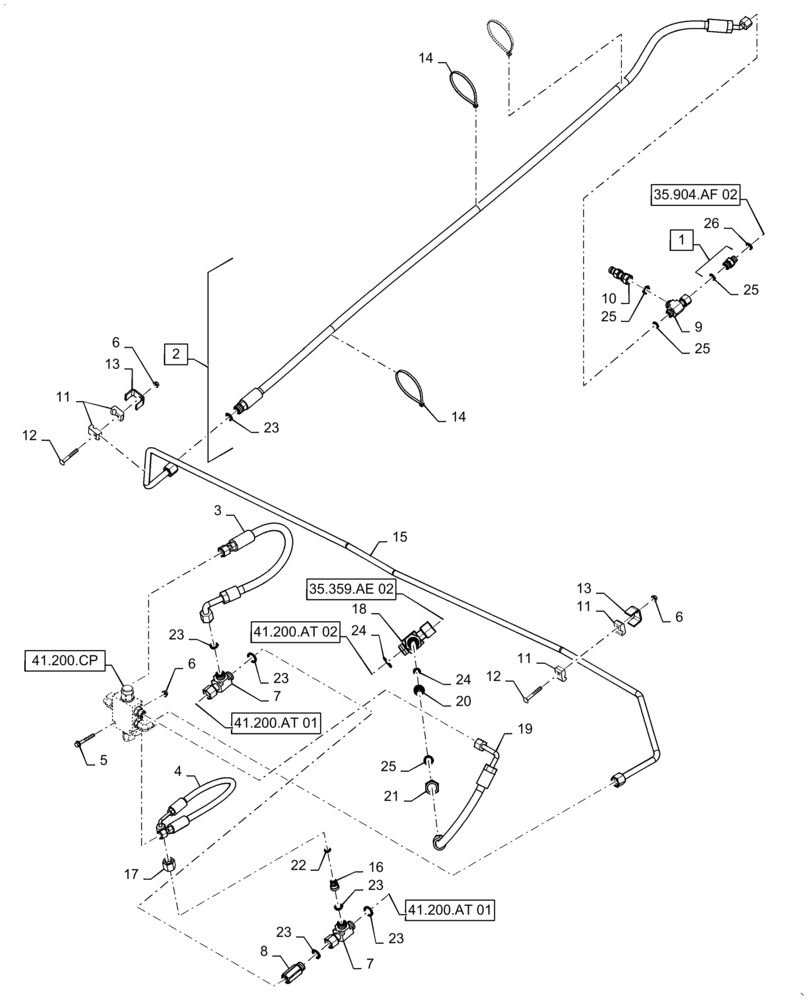

Схема запчастей Case IH 9240 - (41.200.AT[02]) - HYDRAULIC SYSTEM, STEERING (41) - STEERING
23
41.200.at 02
9
4
25
14
6
11
3
41.200.cp
25
23
10
19
7
14
23
11
24
26
17
6
2
25
35.904.af 02
35.359.ae 02
15
13
22
13
12
23
21
16
8
1
23
20
23
12
41.200.at 01
25
24
7
18
6
12
11
41.200.at 01
5

Артикул

Название

Примечание

Количество

1

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 25

1шт.

2

47686200

HOSE,1880mm OAL

Hydraulic, Power Off Supply, Incl 23

1шт.

3

47609464

HOSE,500mm OAL

Hydraulic, Power Off Pressure

1шт.

4

47623182

HOSE,500mm OAL

Hydraulic, Power Off Pilot

1шт.

5

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

2шт.

6

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

7

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

2шт.

8

47607759

CHECK VALVE

Inline, 5 PSI

1шт.

9

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

1шт.

10

243670A1

COUPLING

Nipple, Diagnostic Check

1шт.

11

433008

CLAMP

Hydraulic Hose,6.5mm ID x 31mm L x 20mm Thk

4шт.

12

811-6050

CARRIAGE BOLT,M6 x 1.0 x 56.6, Cl 8.8

2шт.

13

442340

SUPPORT

Clamp

2шт.

14

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

15

47619269

TUBE

Hydraulic Assy, Power Off Supply, 8mm ID x 12mm OD x 1635mm L

1шт.

16

87388776

ADAPTER,13/16" - 16

1шт.

17

85802628

HYD CONNECTOR,1/2"

ORFS, Nut, 12mm

1шт.

18

84989850

3 WAY CONNECTION

ORFS, Swivel, 16mm

1шт.

19

47685787

HOSE

Hydraulic, Power Off Drain

1шт.

20

87610706

REDUCER,1"-14 UNF-2A - 11/16-16 UNF-2A

ORFS, 5/8" to 3/8"

1шт.

21

85802819

TUBE NUT,1"-14 x 24mm L

16mm

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

24

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

26

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 26
