Запчасти Case IH 9240 (36.100.AK[09]) - VAR - 722525 - PRESSURE RELIEF VALVE, AIR COMPRESSOR AND RESERVOIR (36) - PNEUMATIC SYSTEM

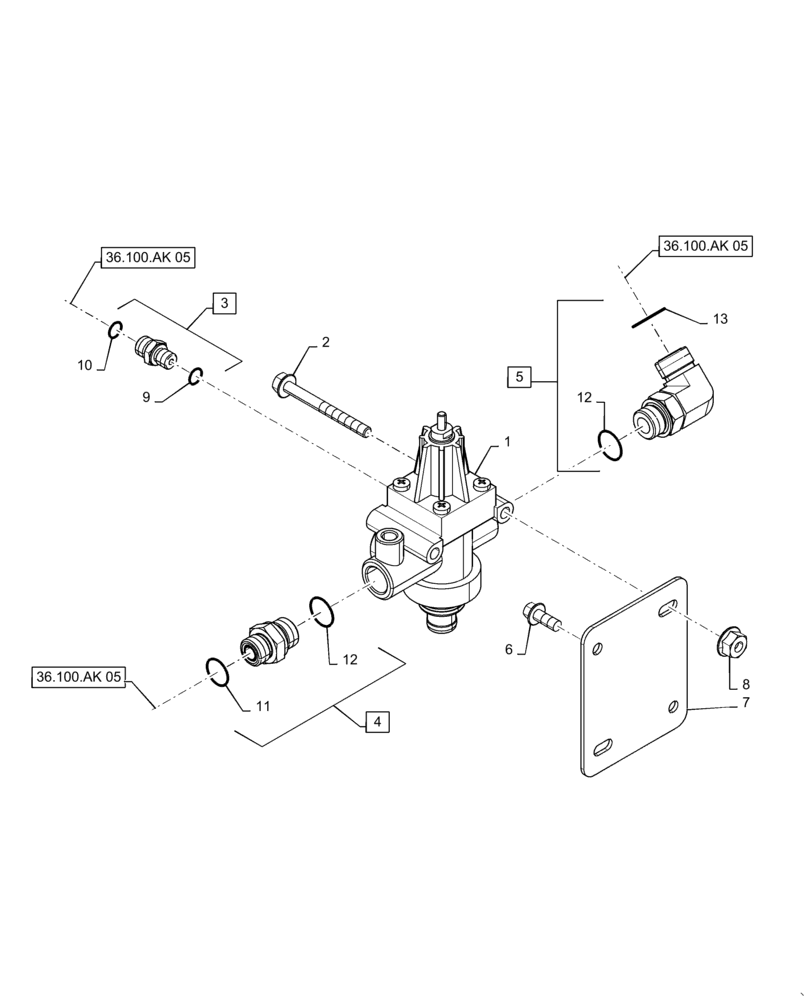

Схема запчастей Case IH 9240 - (36.100.AK[09]) - VAR - 722525 - PRESSURE RELIEF VALVE, AIR COMPRESSOR AND RESERVOIR (36) - PNEUMATIC SYSTEM
9
3
5
6
12
36.100.ak 05
8
4
13
36.100.ak 05
1
36.100.ak 05
10
12
11
7
2

Артикул

Название

Примечание

Количество

1

84440618

VALVE PRESSURE RELIE

Max Volume of Air, 0.06L

1шт.

2

87695420

BOLT,Hex, M8 x 80mm, Cl 10.9

2шт.

3

82019386

HYD CONNECTOR

Incl 9 - 10

1шт.

4

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

Incl 11 - 12

1шт.

5

5194728

90 ELBOW

Incl 12 - 13

1шт.

6

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

2шт.

7

84162800

BRACKET, SUPPORTING

Pressure Relief Valve, 127mm L x 102.5mm W

1шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

9

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

M12 x 1.5mm Thk

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 13
