Запчасти Case IH 9240 (35.518.AC) - VAR - 425070 - HYDRAULIC SYSTEM, FEEDER, HEADER (35) - HYDRAULIC SYSTEMS

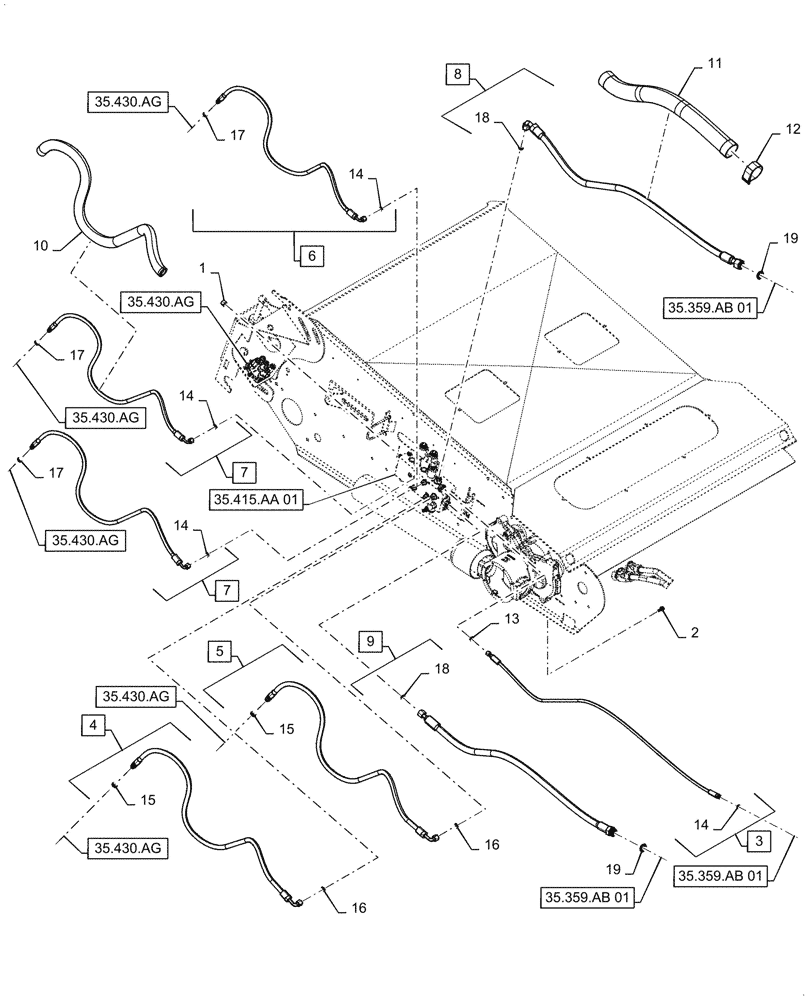

Схема запчастей Case IH 9240 - (35.518.AC) - VAR - 425070 - HYDRAULIC SYSTEM, FEEDER, HEADER (35) - HYDRAULIC SYSTEMS
35.359.ab 01
2
13
7
5
4
11
14
6
15
15
17
19
14
17
14
18
1
3
16
7
16
12
8
17
10
14
9
18
35.430.ag
35.430.ag
35.430.ag
35.430.ag
35.430.ag
35.430.ag
35.415.aa 01
19
35.359.ab 01
35.359.ab 01

Артикул

Название

Примечание

Количество

1

9625546

CAP,11/16" - 16 ORFS

2шт.

2

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

3шт.

3

87109105

HOSE

Feeder Valve, Incl 13, 14

1шт.

4

87109346

HOSE,13mm ID x 1845mm L

Reel Pressure, Incl 15, 16

1шт.

5

87109347

HOSE,13mm ID x 1905mm L

Reel Return, Incl 15, 16

1шт.

6

87109348

HOSE,10mm ID x 1830mm L

Reel Lift, Incl 14, 17

1шт.

7

87109349

HOSE,10mm ID x 1765mm L

Reel Fore/Aft, Incl 14, 17

2шт.

8

87280151

HOSE,19mm ID x 1530mm L

Feeder Valve Pressure, Incl 18, 19

1шт.

9

87281674

HOSE,19mm ID x 1380mm L

Feeder Valve Return, Incl 18, 19

1шт.

10

87106154

SLEEVE

Protection

1шт.

11

87106239

SLEEVE

Feeder Hose to Valve Stack

1шт.

12

87108048

SECURING STRAP

Cinching

1шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

19

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

Выбрано товаров: 19
