Запчасти Case IH 9240 (35.300.BC[03]) - HYDRAULIC SYSTEM, ENGINE 16L (35) - HYDRAULIC SYSTEMS

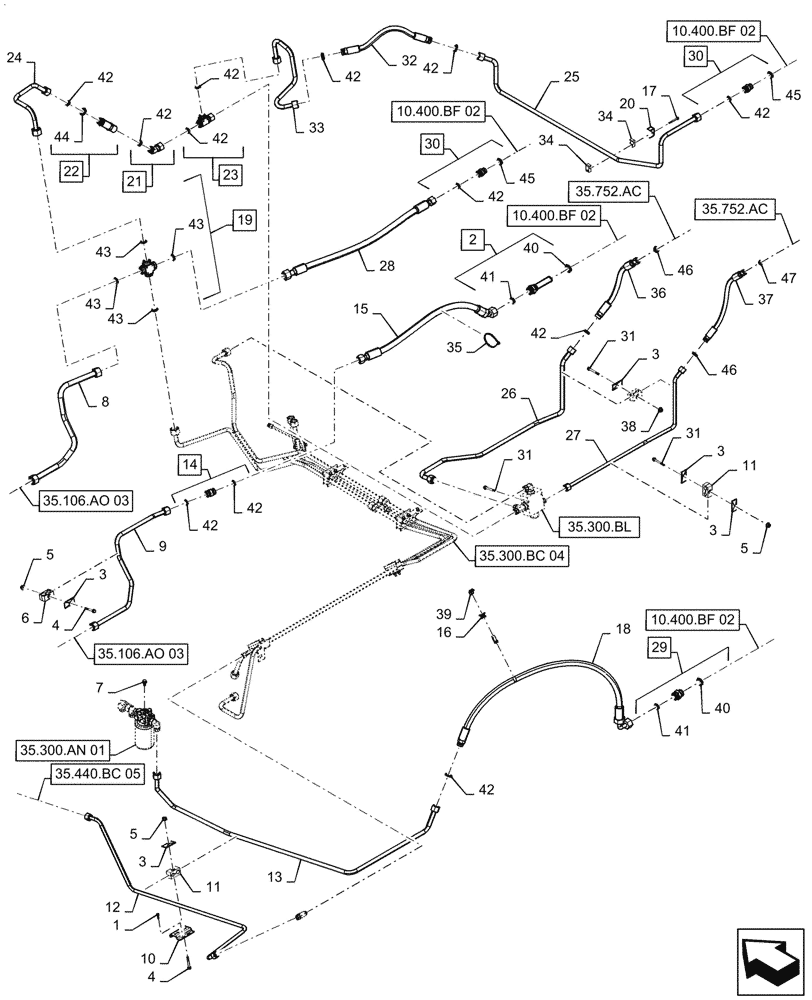

Схема запчастей Case IH 9240 - (35.300.BC[03]) - HYDRAULIC SYSTEM, ENGINE 16L (35) - HYDRAULIC SYSTEMS
35.440.bc 05
1
29
44
45
5
18
40
22
15
43
3
8
2
42
30
4
13
42
42
42
47
24
41
17
28
21
12
3
46
32
25
3
34
10
31
30
7
6
45
43
20
42
3
42
42
33
5
4
39
11
34
3
16
46
42
11
19
42
26
5
42
42
42
35
31
43
23
40
43
38
27
9
41
36
14
37
31
35.300.bc 04
35.300.bl
35.106.ao 03
35.106.ao 03
10.400.bf 02
10.400.bf 02
10.400.bf 02
10.400.bf 02
35.752.ac
35.752.ac
35.300.an 01

Артикул

Название

Примечание

Количество

1

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

4шт.

2

87360480

OIL COOLER FILTER

Incl 40, 41

1шт.

3

87000230

PLATE

Clamp Cover

6шт.

4

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

6

87000146

CLAMP

Hydraulic Tube

1шт.

7

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

8

47380555

TUBE

Aux Cooler Return

1шт.

9

47380557

TUBE

Main Cooler Return

1шт.

10

87109755

BRACKET

Tube Clamp

2шт.

11

87000144

CLAMP

Hydraulic Tube

4шт.

12

48035863

HYD TUBE

Drain, Bulkhead to Tee

1шт.

13

47633815

TUBE

Main Cooler Inlet

1шт.

14

84100407

UNION,1-3/16"-12 ORFS

Incl 42

1шт.

15

47513485

HYDRAULIC HOSE

Main Cooler Return

1шт.

16

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

17

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

18

47633817

TUBE

Main Cooler Supply

1шт.

19

47394380

UNION CROSS

Incl 43

1шт.

20

433100

SUPPORT

Hydraulic Tube

2шт.

21

84214051

45 ELBOW,1-3/16"-12 ORFS x 14mm

Incl 42

1шт.

22

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Incl 42, 44

1шт.

23

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

Incl 42

1шт.

24

47380564

TUBE

Aux Cooler Bypass

1шт.

25

47513961

TUBE

Aux Cooler Supply 2

1шт.

26

47628785

TUBE

SAS Motor Return 1

1шт.

27

47692289

TUBE

SAS Motor Supply 1

1шт.

28

47513534

HYDRAULIC HOSE

Aux Cooler Return

1шт.

29

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 40, 41

1шт.

30

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 42, 45

2шт.

31

87656138

BOLT,M8 x 78.1mm, Cl 10.9

4шт.

32

47634759

HOSE

Aux Cooler Supply

1шт.

33

47634725

TUBE

Aux Cooler Supply 1

1шт.

34

433007

CLAMP

Hydraulic Tube

4шт.

35

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

36

47515741

HOSE

SAS Motor Return 2

1шт.

37

47692303

HYDRAULIC HOSE

SAS Motor Supply 2

1шт.

38

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

39

84266050

CABLE TIE,384mm L, Polyamide

2шт.

40

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

41

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

42

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

12шт.

43

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

45

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

46

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

47

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Выбрано товаров: 47
