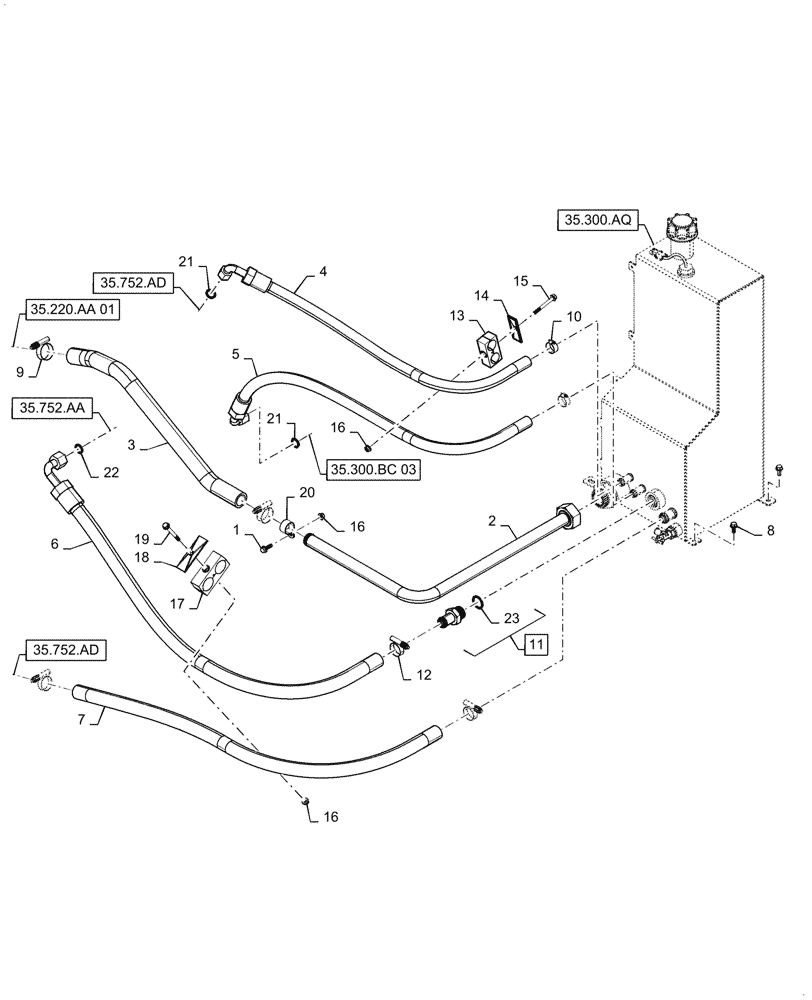

Запчасти Case IH 9240 (35.300.AD[02]) - HYDRAULIC SYSTEM, HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

2

48073119

Triple Gear Pump Suction

HYD TUBE

1шт.

3

48073118

Triple Gear Pump Suction

HYDRAULIC HOSE

1шт.

4

47497057

HYDRAULIC HOSE

Low Pressure Drain

1шт.

5

48035821

HYDRAULIC HOSE

Cleaning Fan Case Drain

1шт.

6

47596215

HYDRAULIC HOSE

Engine Fan Drive Return 1

1шт.

7

47497078

HYDRAULIC HOSE

PFC Inlet

1шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

9

86625019

HOSE CLAMP,44mm - 67mm

2шт.

10

87016721

HOSE CLAMP,17.5mm - 31.7mm

2шт.

11

84161356

ADAPTER

Incl 23

1шт.

12

86536660

HOSE CLAMP,25mm - 44mm

3шт.

13

4148516

CLIP

Hydraulic Hose

1шт.

14

1186005

PLATE

Cover

1шт.

15

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

17

87000923

HOSE CLAMP

Hydraulic

1шт.

18

87000231

PLATE

Cover

1шт.

19

87695420

BOLT,Hex, M8 x 80mm, Cl 10.9

1шт.

20

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
