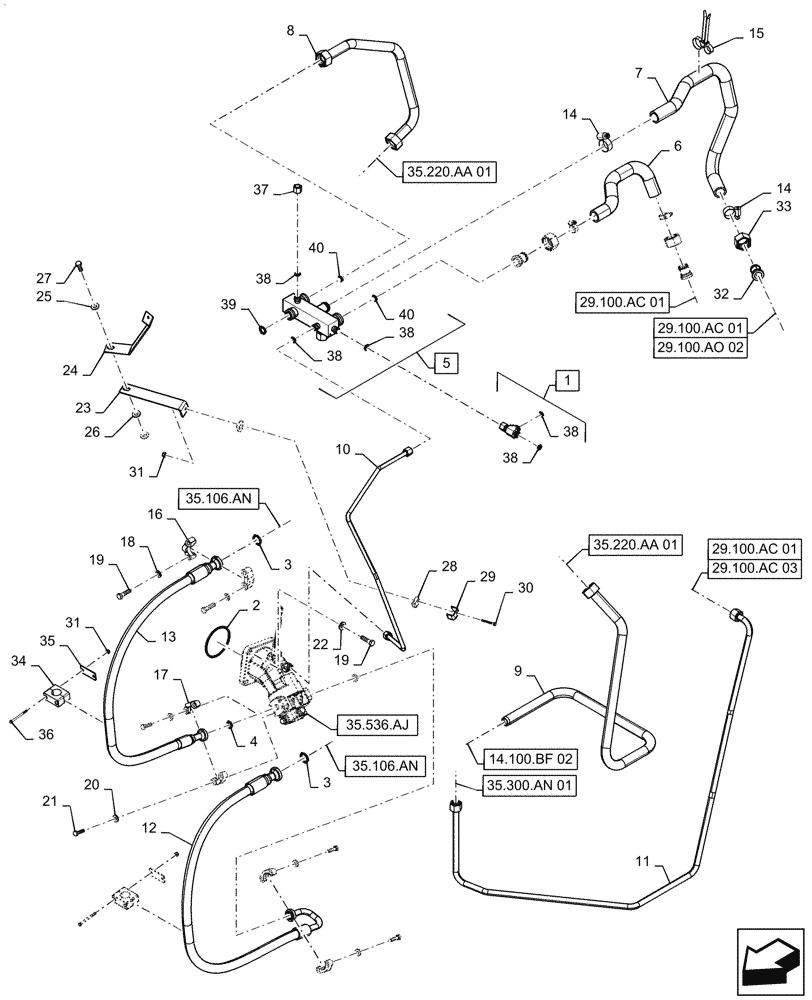

Запчасти Case IH 9240 (35.106.AO[05]) - HYDRAULIC SYSTEM, PTO 1 (35) - HYDRAULIC SYSTEMS

1

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 38

1шт.

2

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

3

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

4

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

5

84317035

HYDRAULIC MANIFOLD

Return, Incl 38 - 40

1шт.

6

47487298

HOSE

Ground Drive Pump Drain

1шт.

7

48056763

HYDRAULIC HOSE

Lube Pump Supply

1шт.

8

48056762

HYD TUBE

Charge Pump Supply

1шт.

9

48035861

HYD TUBE

PTO Oil Pan Suction

1шт.

10

84317298

HYD TUBE

Rotor Motor Drain

1шт.

11

47392844

HYD TUBE

Lube to Filter

1шт.

12

84370076

HYDRAULIC HOSE,19.05mm ID x 1600mm L, SAE 100R15

Rotor Drive A

1шт.

13

84370077

HYDRAULIC HOSE,19.05mm ID x 1500mm L, SAE 100R15

Rotor Drive B

1шт.

14

86634187

HOSE CLAMP,50.8mm ID - 26.9mm ID, Lined

6шт.

15

84386243

CLAMP,489mm L

2шт.

16

86980732

CLAMP

Split Flange

4шт.

17

86980731

CLAMP

Split Flange

4шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

19

87022684

BOLT,Hex, M12 x 45mm, Cl 10.9

12шт.

20

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

21

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

8шт.

22

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

23

87324916

BRACKET

Lower, Rotor Drain

1шт.

24

87324918

BRACKET

Upper, Rotor Drain

1шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

26

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

28

433008

CLAMP

Hydraulic Tube

4шт.

29

442340

SUPPORT

Tube Clamp

2шт.

30

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

31

353308

NUT,M6 x 1.0, Cl 8

6шт.

32

84322357

SLEEVE

Hydraulic Connector

5шт.

33

86639098

TUBE NUT,1-11/16'-12 x 27.5mm Thk

5шт.

34

84190470

CLAMP

Hydraulic Tube

2шт.

35

2978702

PLATE

Clamp Cover

2шт.

36

11030421

BOLT,Hex, M6 x 75mm, Cl 8.8

4шт.

37

9840575

CAP,13/16" - 16 ORFS

1шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

39

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

40

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.
