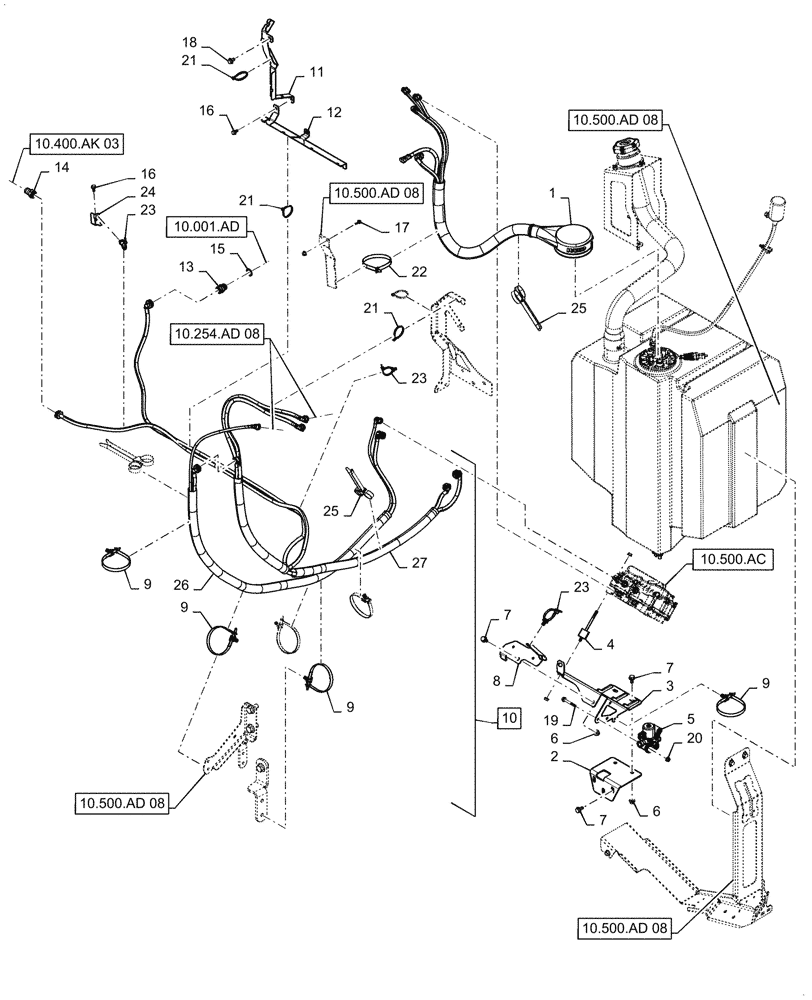

Запчасти Case IH 9240 (10.500.AD[07]) - DEF LINES, DEF TANK (10) - ENGINE

1

47967431

HOSE

Supply Tank to Supply Module

1шт.

2

47711068

BRACKET

Module Mount

1шт.

3

47711073

BRACKET

Supply Module

1шт.

4

47707670

DAMPER

Supply Module

3шт.

5

84483089

HEATER,12V

Valve, 12V

1шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

7

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

8

47974944

BRACKET

Hose Support

1шт.

9

84266055

PLASTIC

Tie Strap

9шт.

10

47967440

HOSE

DEF/Adblue™ Supply, Incl 9, 25 - 27

1шт.

11

47499048

BRACKET

Hose Support

1шт.

12

47499050

BRACKET

Hose Support

1шт.

13

47442847

ADAPTER,M22 x 1.5 x 21.5mm OD

1шт.

14

87270102

FITTING,1/2" NPTF to Quick Connect

1шт.

15

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

16

87681207

BOLT,M8 x 24.1mm, Cl 10.9

5шт.

17

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

18

87021006

BOLT,M10 x 26.4mm, Cl 10.9

1шт.

19

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

21

86566989

CABLE TIE,208mm L

13шт.

22

84266050

CABLE TIE,384mm L, Polyamide

2шт.

23

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

4шт.

24

47707392

BRACKET

Hose Support

1шт.

25

84386243

CLAMP,489mm L

3шт.

26

47974957

TUBE

Dosing Module to Supply Module

1шт.

27

47974958

TUBE

Dosing Module to Wema Valve

1шт.
