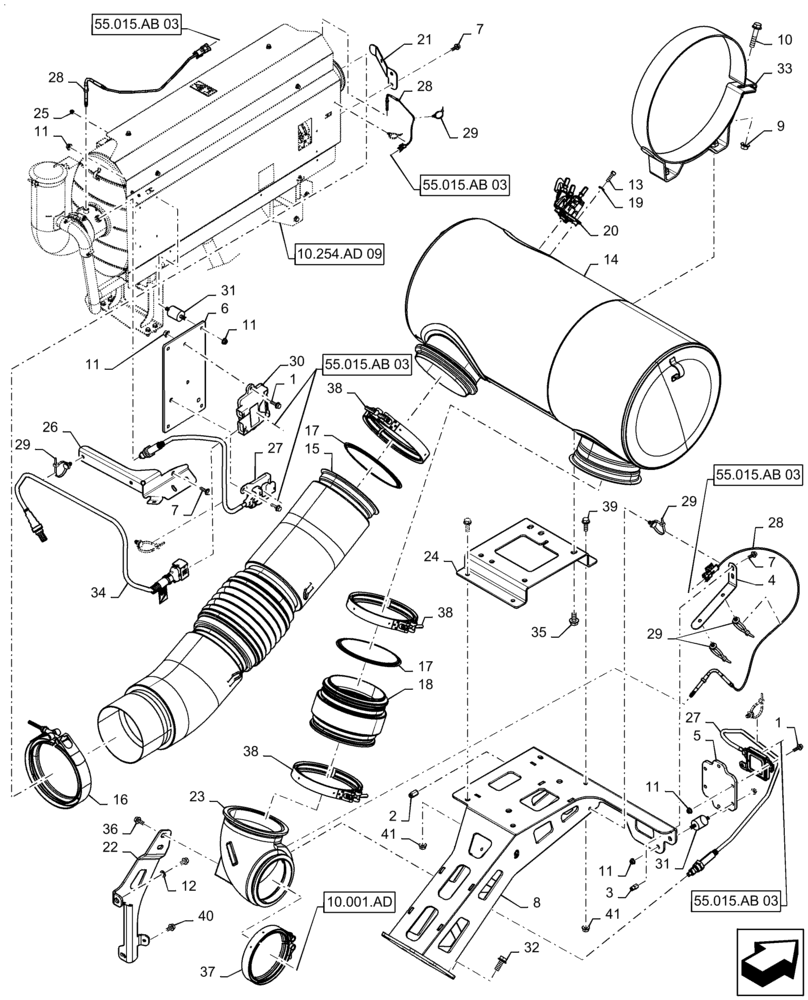

Запчасти Case IH 9240 (10.254.AD[08]) - EXHAUST SYSTEM (10) - ENGINE

1

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

6шт.

2

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

3шт.

3

84578718

RIVET,Flng, 9mm OD x 18mm L

2шт.

4

47703715

SUPPORT

Bracket, Wiring, NOX Sensor

1шт.

5

47687880

SUPPORT

Mounting Bracket, ECU, 134.6mm L x 108mm W

1шт.

6

47687878

SUPPORT

Bracket, ECU, 241.3mm L x 136.5mm W

1шт.

7

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

7шт.

8

47703809

SUPPORT

Mounting, Diesel Oxidation Catalyst

1шт.

9

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

10

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

2шт.

11

86050300

FLANGE NUT,M6 x 1.0, Cl 10

18шт.

12

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

13

14432221

HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8

3шт.

14

47475663

MUFFLER

Diesel Oxidation Catalyst

1шт.

15

47537383

TUBE

Exhaust, 797.3mm L

1шт.

16

47511343

CLAMP,156mm ID, T - Bolt, V - Band

Exhaust

1шт.

17

47684297

GASKET,157.2mm ID

Exhaust

2шт.

18

47475837

FLEXIBLE JOINT,133.6mm OD x 178mm OAL

1шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

20

47537810

INJECTOR, EMISSIONS,12 KG/HR

Denox, 2.2

1шт.

20

47537810R

REMAN-INJEC EMISSION

Denox

1шт.

20

47537810C

CORE-INJEC EMISSION

Return Number

1шт.

21

47604814

SUPPORT

Mounting, Exhaust Temperature Sensor

1шт.

22

47707923

BRACKET

Elbow Support

1шт.

23

47695617

ELBOW,Reducer, 144mm ID to 125mm ID, 90 Degree

1шт.

24

47647309

SUPPORT

Base, Bracket, DOC

1шт.

25

86610198

INSERT,M6 x 1

5шт.

26

47701714

SUPPORT

Bracket, Wiring, NOX Sensor

1шт.

27

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX

2шт.

28

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Temperature

3шт.

29

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

12шт.

30

47368959

ECU

NH3

1шт.

31

47671808

DAMPER,M6 x 1.0 x 15mm, 25mm OD x 60mm OAL

Sensor, ECU

6шт.

32

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

33

47647302

CLAMP,326mm ID, M10 x 1.5

DOC

2шт.

34

47520140

SENSOR,8 Pin

NOX

1шт.

35

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

36

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

37

47415585

CLAMP,153mm ID, T - Bolt

Turbo, Lower

1шт.

38

47390973

CLAMP,182mm ID, T - Bolt

Turbo, Upper

3шт.

39

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

40

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

41

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
