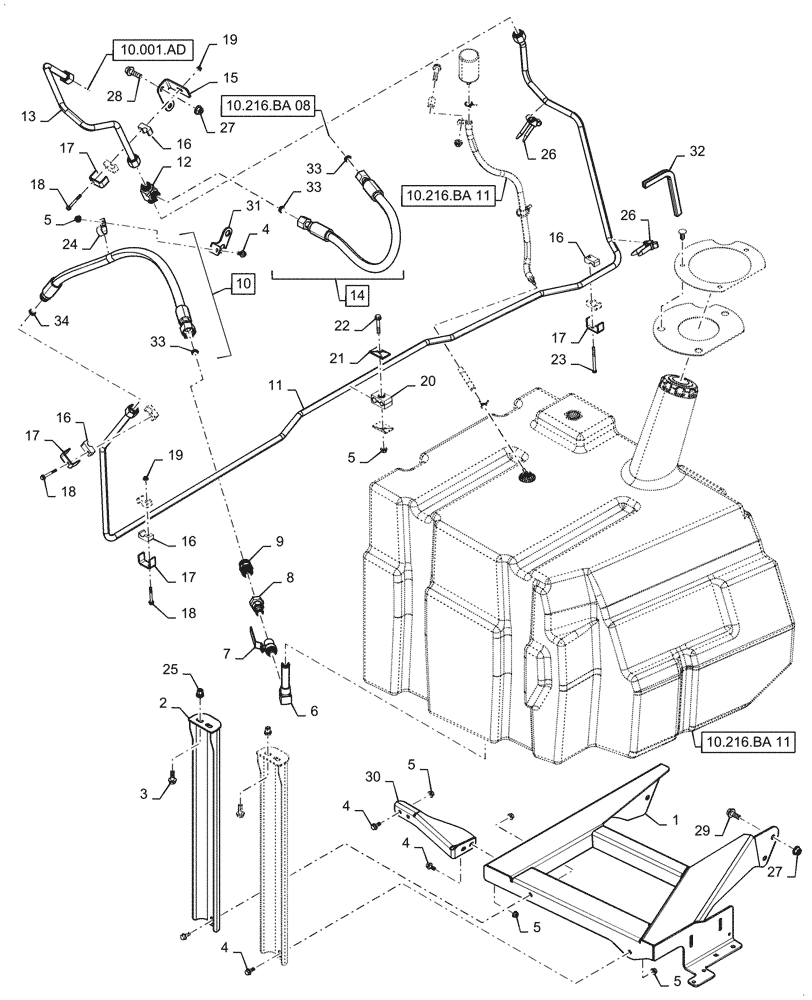

Запчасти Case IH 9240 (10.216.BA[12]) - FUEL LINE (10) - ENGINE

1

47713574

SUPPORT

Fuel Tank, LH

1шт.

2

47595569

BRACKET

Tank Support

2шт.

3

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

4

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

6

47393252

FILTER STRAINER

Fuel Suction

1шт.

7

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

1шт.

8

47559912

FITTING,3/4"-12 x 1/2" NPT

1шт.

9

47518136

CHECK VALVE

Fuel Supply

1шт.

10

47702827

HOSE

Fuel, LH Tank, Incl 33, 34

1шт.

11

47702819

TUBE

Fuel, LH to Tee

1шт.

12

201-415

TEE,1"-14 ORFS

1шт.

13

47645370

TUBE

Fuel, Tee to Filter

1шт.

14

47519569

HOSE

Fuel, RH Tank, Incl 33

1шт.

15

47702722

BRACKET

Tube Support

1шт.

16

433007

CLAMP

Hose

8шт.

17

433100

SUPPORT

Hose Clamp

4шт.

18

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

3шт.

19

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

20

87451102

CLAMP

Fuel Tube

1шт.

21

384870A1

PLATE

Clamp Cover

2шт.

22

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

23

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

1шт.

24

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

25

86976968

INSERT,Rivnut, M10 x 1.5 x 19mm OD

4шт.

26

84484346

STRAP,328mm L

2шт.

27

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

28

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

29

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

30

47665989

BRACKET

Fuel Tank

1шт.

31

47702810

BRACKET

Hose Support

1шт.

32

121574A1

SEAL PROTECTION

Edge Trim

1шт.

33

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
