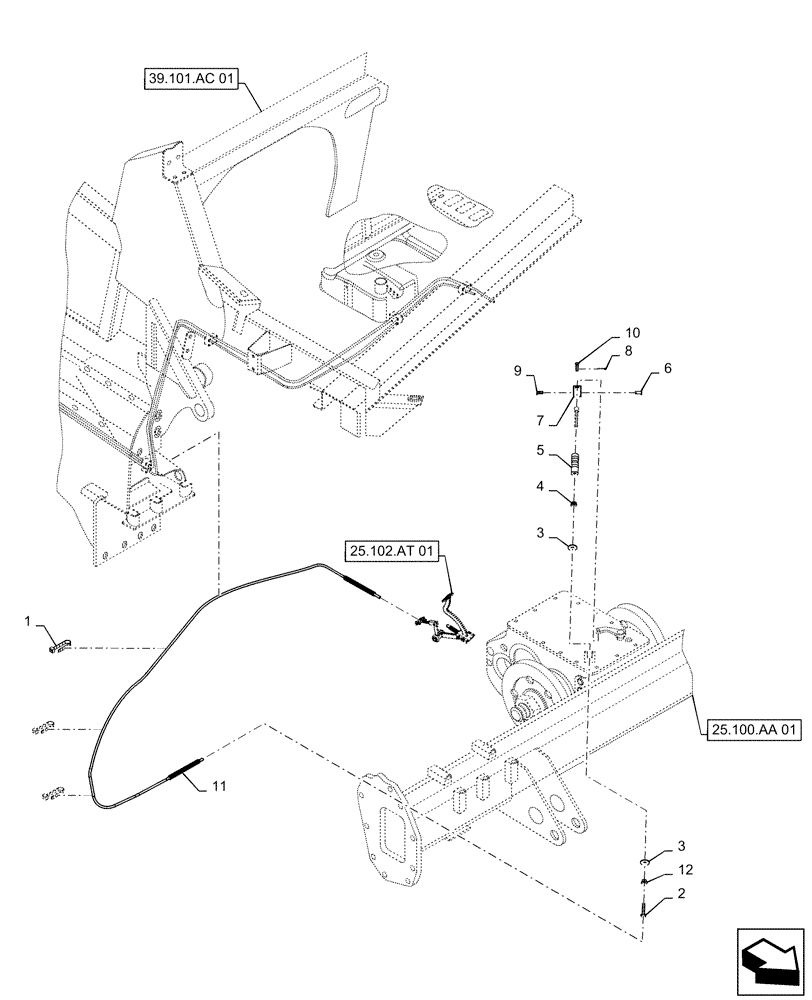

Запчасти Case IH 9230 (25.102.AT[02]) - CABLE, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

1

9818147

CLAMP

Retainer, 200mm L

1шт.

2

449469

SCREW,Hex, M10 x 50mm OAL

1шт.

3

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

2шт.

4

449470

NUT,M10 x 1.5

Retainer, Special

1шт.

5

9818291

BOOT

Bellows

1шт.

6

381140

CLAMP

M6 x 1 x 31mm L

1шт.

7

388340

YOKE

Universal Joint

1шт.

8

86977785

COTTER PIN,M1.6 x 20mm

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

10

376876

CLEVIS PIN,6mm OD x 30mm L

1шт.

11

9507812

CONDUIT

Cut From Bulk, Approx 0.75M

1шт.

12

100016

NUT,M10 x 1.5, Cl 8

1шт.
