Запчасти Case IH 9230 (21.140.AQ) - GEARBOX, INPUT SHAFT (21) - TRANSMISSION

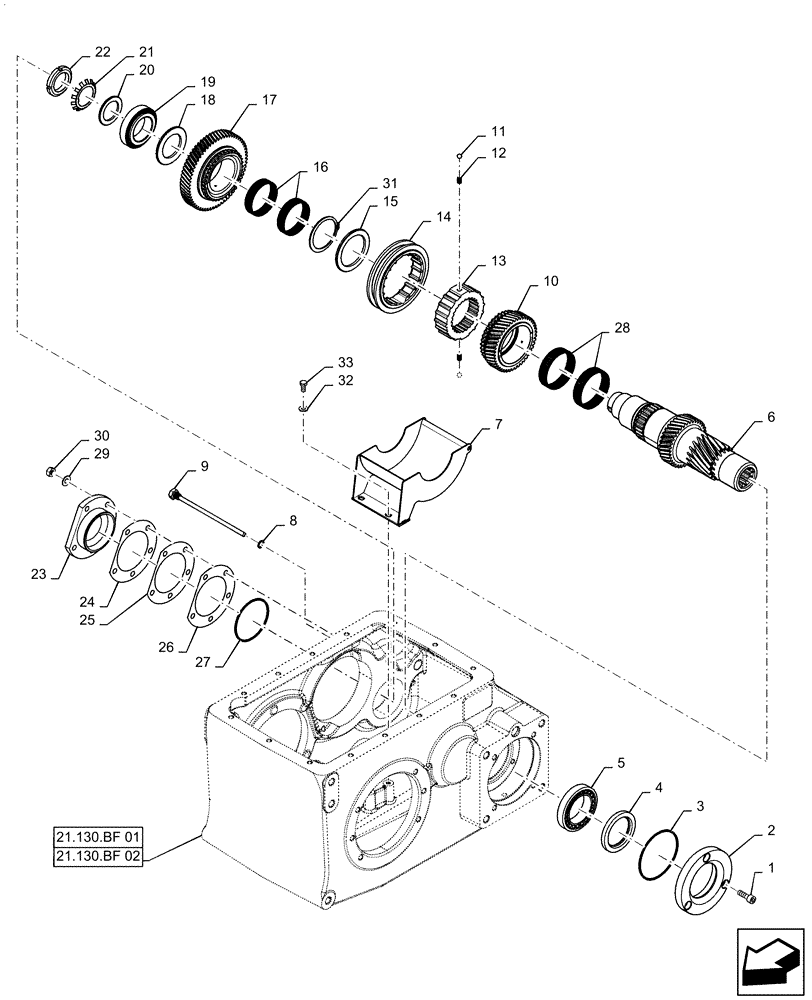

Схема запчастей Case IH 9230 - (21.140.AQ) - GEARBOX, INPUT SHAFT (21) - TRANSMISSION
16
11
28
7
5
9
4
18
21.130.bf 02
14
17
23
31
15
27
13
21.130.bf 01
21
20
24
33
3
1
2
26
29
22
32
12
19
10
8
6
25
30

Артикул

Название

Примечание

Количество

1

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

3шт.

2

84071648

FLANGED BEARING

80mm ID x 146mm OD x 29mm W

1шт.

3

84032297

O-RING,2mm Thk x 100mm ID, 72 Duro

1шт.

4

84045429

OIL SEAL,65mm ID x 90mm OD x 10mm Thk

1шт.

5

750347

BEARING ASSY,65 mm ID x 100 mm OD x 23 mm

1шт.

6

84071392

SHAFT

Input, 386mm L

1шт.

7

84435240

SHIELD

Guard

1шт.

8

84011379

SEAL,12.2mm ID x 16.9mm OD x 1.5mm Thk

1шт.

9

84334964

SET SCREW,Hex Soc, M12 x 205

1шт.

10

84433269

GEAR

Driving, 42T Helical Cut, 36T Straight Cut

1шт.

11

84041521

BALL

Check, 9mm OD

2шт.

12

84041522

SPRING,8.5mm OD x 23.1mm L

Tension

2шт.

13

84433352

GEAR

Driver Shifter, 25T Outer, 36T Internal

1шт.

14

84433358

SYNCHRONIZER

Collar Shifter, 36T

1шт.

15

84072052

THRUST WASHER,72mm ID x 95mm OD x 5.25mm Thk

1шт.

16

87317816

BEARING SET,68mm ID x 74mm OD x 40mm W

1шт.

2 Bearing Assy Per Set

1шт.

17

84435944

GEAR

Driving, 63T Helical Cut, 36T Straight Cut

1шт.

18

84071394

THRUST WASHER,55mm ID x 85mm OD x 4.75mm Thk

1шт.

19

853116

TAPERED BEARING

Conical, 55mm ID x 90mm OD x 23mm W

1шт.

20

84071395

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

1шт.

21

410880

LOCK WASHER

Lock Plate

1шт.

22

9615771

BEARING LOCK NUT,44.026 mm ID x 65 mm OD

1шт.

23

84071116

FLANGED BEARING

22mm ID x 140mm OD x 36mm W

1шт.

24

84072114

SHIM,90mm ID x 140mm OD x 0.05mm Thk

1шт.

25

84072113

SHIM,90mm ID x 140mm OD x 0.2mm Thk

1шт.

26

84072110

SHIM,90mm ID x 140mm OD x 0.5mm Thk

1шт.

27

84078053

O-RING,2mm Thk x 86mm ID, 72 Duro

1шт.

28

84071622

BEARING SET,80mm ID x 86mm OD x 40mm W

Needle

1шт.

2 Bearing Assy Per Set

1шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

30

100016

NUT,M10 x 1.5, Cl 8

5шт.

31

84078051

SNAP RING,M72, Ext

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

33

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

Выбрано товаров: 35
