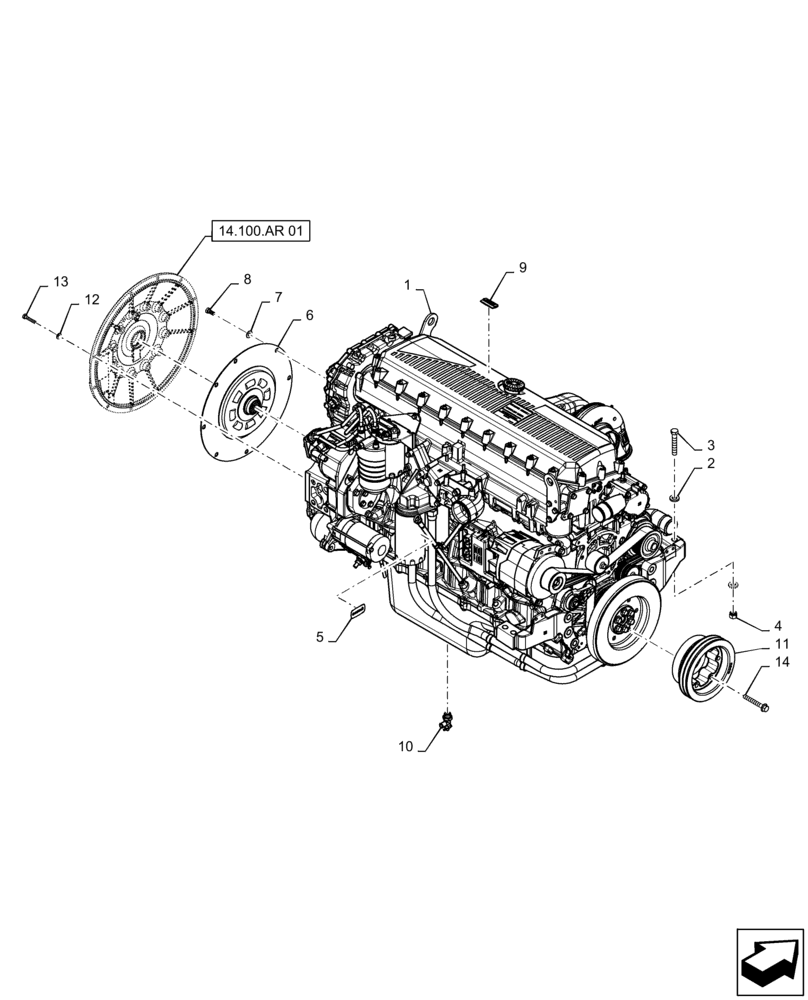

Запчасти Case IH 9230 (18.112.AC[03]) - DAMPER, FLYWHEEL, ENGINE (18) - CLUTCH

1

84393147

ENGINE

Cursor 13

1шт.

1

84393147R

REMAN-REPLACEMENT EN

Reman Engine -- Cursor 13

1шт.

1

84393147C

CORE-REPLACEMENT ENG

Return Number

1шт.

1

84393147ER

REMAN-REPLACEMENT EN

Cursor 13

1шт.

1

84393147EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

47867352R

REMAN-BASIC ENGINE

Reman Basic Engine Cursor 13

1шт.

1

47867352C

CORE-BASIC ENGINE

Return Number

1шт.

1

47454070R

REMAN-BASIC ENGINE

Cursor 13

1шт.

1

47454070C

CORE-BASIC ENGINE

Return Number

1шт.

2

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

8шт.

3

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

4шт.

4

412066

NUT,M16 x 2.0, Cl 8

4шт.

5

87679098

DECAL,37mm x 70mm

Case IH Filter

2шт.

6

87643110

COUPLING,466.67mm OD

Damper, Cursor 13

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

9

84373430

EMBLEM

Case IH Valve Cover

1шт.

10

87105048

DRAINCOCK/TAP SUPPLY

Engine Oil Drain

1шт.

11

87671289

PULLEY

Engine Fan Drive

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

13

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

12шт.

14

16681435

FLANGE BOLT,Hex, M14 x 2.0 x 113.7mm, Cl 10.9

6шт.
