Запчасти Case IH 9230 (14.100.AR[09]) - VAR - 425465, 425464, 425361, 425362 - OIL PAN, FILTER, PTO (14) - MAIN GEARBOX & DRIVE

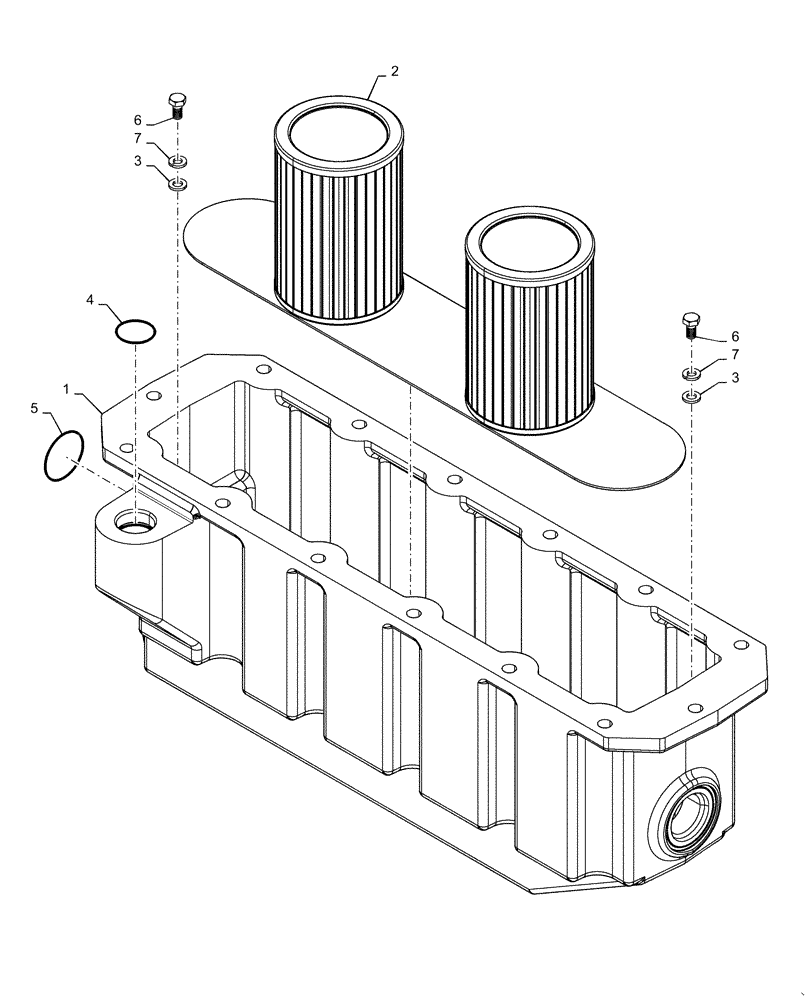

Схема запчастей Case IH 9230 - (14.100.AR[09]) - VAR - 425465, 425464, 425361, 425362 - OIL PAN, FILTER, PTO (14) - MAIN GEARBOX & DRIVE
4
3
3
7
1
7
2
6
5
6

Артикул

Название

Примечание

Количество

1

86998434

PAN

PTO

1шт.

2

87107440

FILTER STRAINER,100 Mesh

PTO Pan

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

5

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

6

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

7

892-11006

LOCK WASHER,M6

2шт.

Выбрано товаров: 7
