Запчасти Case IH 9230 (14.100.AR[07]) - VAR - 425465, 425464, 425361, 425362 - VALVE, UNLOADING & FLOW, DRIVE, ROTOR (14) - MAIN GEARBOX & DRIVE

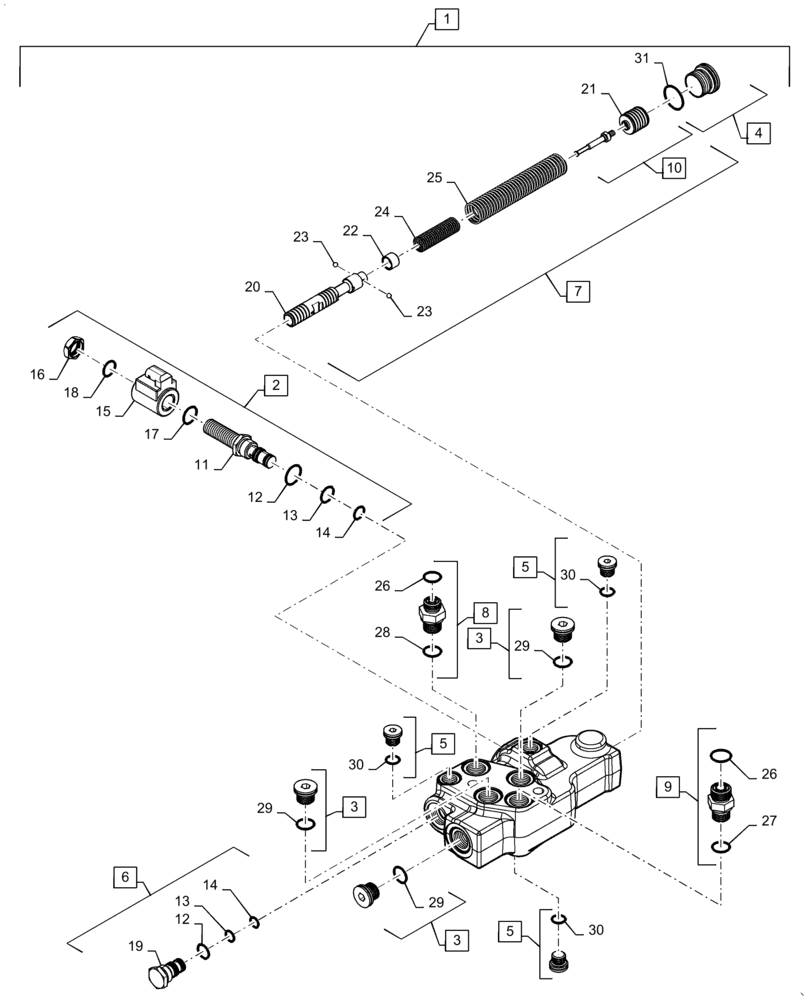

Схема запчастей Case IH 9230 - (14.100.AR[07]) - VAR - 425465, 425464, 425361, 425362 - VALVE, UNLOADING & FLOW, DRIVE, ROTOR (14) - MAIN GEARBOX & DRIVE
8
30
29
20
16
31
12
1
3
14
12
26
28
17
22
18
27
26
4
5
6
14
30
10
23
30
15
13
2
9
3
13
5
25
5
7
3
23
29
24
19
11
29
21

Артикул

Название

Примечание

Количество

1

86981234

HYDRAULIC VALVE

Unloading Clutch/Rotor Gearbox, Incl 2 - 31

1шт.

2

84167521

SOLENOID

Flow Control, Incl 11 - 18

1шт.

3

221578A1

PLUG,M18 x 1.5 ORB

Incl 29

3шт.

4

221580A1

PLUG,M27 x 2 ORB

Incl 31

1шт.

5

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 30

3шт.

6

47440188

SOLENOID

Plug, Incl 12 - 14, 19

1шт.

7

86981236

SPOOL

Modulation, Incl 10, 20 - 25

1шт.

8

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 26, 28

1шт.

9

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 26 - 27

1шт.

10

NSS

NOT SOLD SEPARAT

Pin, Locking, Incl in 7, 21

1шт.

11

84172351

CARTRIDGE

Valve, PWM

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

13

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

2шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

15

304834A1

SOLENOID

Coil

1шт.

16

304836A1

NUT

5/8" - 24

1шт.

17

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

18

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

19

177120A1

PLUG

Solenoid Valve

1шт.

20

86981237

SPOOL

Modulation

1шт.

21

NSS

NOT SOLD SEPARAT

Modulator Piston, Incl 10, Incl in 7

1шт.

22

NSS

NOT SOLD SEPARAT

Retaining Sleeve, Incl in 7

1шт.

23

511-1040

BALL,4mm Dia

2шт.

24

NSS

NOT SOLD SEPARAT

Spring, Light Modulation, Incl in 7

1шт.

25

NSS

NOT SOLD SEPARAT

Spring, Preload, Incl in 7

1шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

30

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

31

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 31
