Запчасти Case IH 9230 (14.100.AR[06]) - VAR - 425465, 425464, 425361, 425362 - VALVE, DRIVE, ROTOR (14) - MAIN GEARBOX & DRIVE

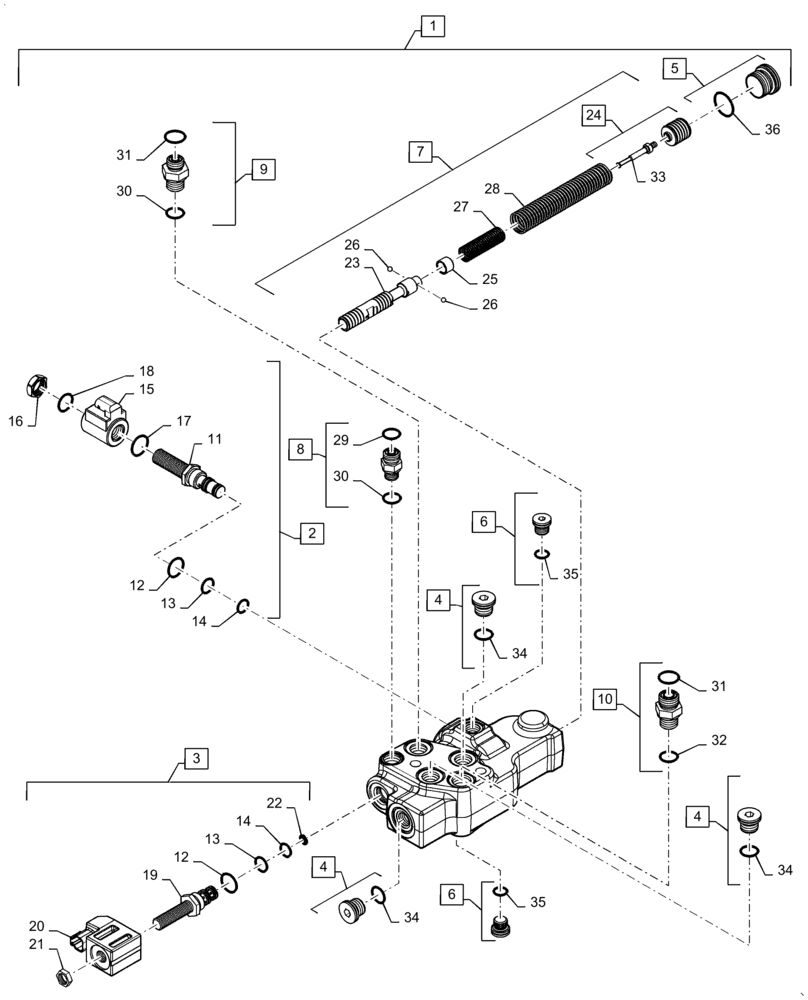

Схема запчастей Case IH 9230 - (14.100.AR[06]) - VAR - 425465, 425464, 425361, 425362 - VALVE, DRIVE, ROTOR (14) - MAIN GEARBOX & DRIVE
6
33
12
34
19
30
12
28
22
30
26
31
9
15
29
4
20
23
3
13
2
4
5
18
8
1
7
10
27
11
13
35
26
32
24
25
14
31
6
34
21
34
35
4
36
14
17
16

Артикул

Название

Примечание

Количество

1

86981235

CONTROL VALVE

Variable, Rotor Drive, Incl 2 - 36

1шт.

2

84167521

SOLENOID

Pulse Width Modulated, Incl 11 - 18

1шт.

3

349295A1

SOLENOID VALVE

Flow Control, 2 GPM, Incl 12 - 14, 19 - 22

1шт.

4

221578A1

PLUG,M18 x 1.5 ORB

Incl 34

3шт.

5

221580A1

PLUG,M27 x 2 ORB

Incl 36

1шт.

6

86598044

PLUG,Hex, M14 x 1.5 ORB

Incl 35

2шт.

7

86981236

SPOOL

Modulation, Incl 23 - 28, 33

1шт.

8

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 29 - 30

1шт.

9

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

Incl 30 - 31

1шт.

10

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 31 - 32

1шт.

11

84172351

CARTRIDGE

Valve, PWM

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

13

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

2шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

15

304834A1

SOLENOID

Valve Coil, PWM

1шт.

16

304836A1

NUT

5/8" - 24

1шт.

17

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

18

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

19

349291A1

CARTRIDGE

Valve

1шт.

20

298614A1

SOLENOID

Coil, 2 GPM

1шт.

21

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1/2" - 20

1шт.

22

NSS

NOT SOLD SEPARAT

Screen, Relief Valve, Incl in 3

1шт.

23

86981237

SPOOL

Modulation

1шт.

24

NSS

NOT SOLD SEPARAT

Modulator Piston, Incl 33, Incl in 7

1шт.

25

NSS

NOT SOLD SEPARAT

Retaining Sleeve, Incl in 7

1шт.

26

87016940

BALL,4mm OD, Gr 28

2шт.

27

NSS

NOT SOLD SEPARAT

Spring, Light Modulation, Incl in 7

1шт.

28

NSS

NOT SOLD SEPARAT

Spring, Preload, Incl in 7

1шт.

29

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

31

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

33

NSS

NOT SOLD SEPARAT

Pin, Locking, Incl in 7, 24

1шт.

34

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

35

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

36

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 36
