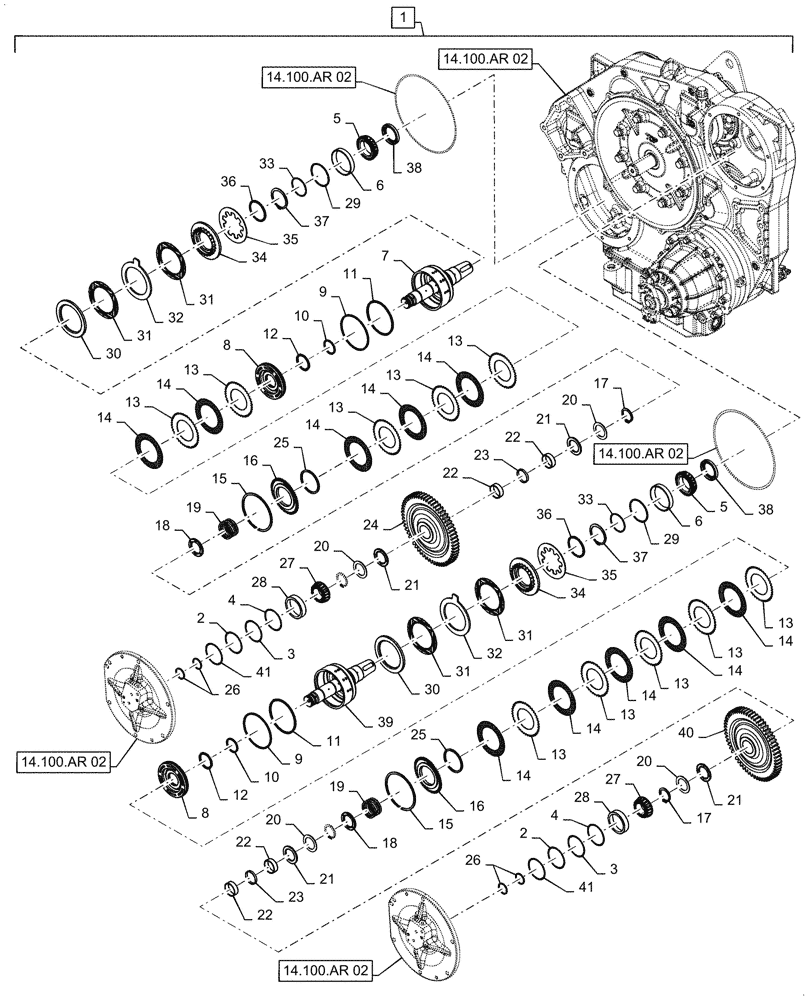

Запчасти Case IH 9230 (14.100.AR[04]) - VAR - 425465, 425464, 425361, 425362 - PTO, BEATER, UNLOADING & FLOW (14) - MAIN GEARBOX & DRIVE

1

47590627

PTO

Assy, Incl 2 - 41

1шт.

7240

1шт.

1

47590628

PTO

Assy, Incl 2 - 41

1шт.

8240

1шт.

1

47590629

PTO

Assy, Incl 2 - 41

1шт.

9240

1шт.

2

378155A1

SHIM,0.178mm Thk

75mm ID x 82mm OD x 0.178mm Thk

1шт.

3

378156A1

SHIM,0.203mm Thk

75mm ID x 82mm OD x 0.203mm Thk

1шт.

4

378157A1

SHIM,0.508mm Thk

75mm ID x 82mm OD x 0.508mm Thk

1шт.

5

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

2шт.

6

105497H

BEARING CUP,96.85mm OD x 15.77mm W

2шт.

7

87394766

SHAFT

Beater Chopper Drive, 314mm L

1шт.

8

329889A1

PISTON

PTO Clutch, 48.5mm ID x 134.15mm OD x 18.8mm W

2шт.

9

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

Clutch Piston, External

2шт.

10

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

Clutch Piston, Internal

2шт.

11

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

2шт.

12

272778

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

13

345335A2

PLATE

Steel, Separator, 66T, 89.5mm ID x 142.18mm OD

10шт.

14

345334A1

FACING

Friction Plate, 40T, 82.1mm ID x 134mm OD x 2.9mm Thk

10шт.

15

345337A1

RING

Backing Plate Retainer, 134.4mm ID x 147.1mm OD x 3.28mm Thk

2шт.

16

345336A1

CLUTCH DRIVING PLATE

Backing, 66T, 89.5mm ID x 141.69mm OD x 10.925mm Thk

2шт.

17

100-16175

SNAP RING,#175, Ext

2шт.

18

A188044

RETAINER

Piston Return Spring, 45.38mm ID

2шт.

19

A188080

SPRING

Piston Return, 4 Coils, 71.12mm Free Length

2шт.

20

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

4шт.

21

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

4шт.

22

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

4шт.

23

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

2шт.

24

87332117

GEAR

PTO Clutch, 60T

1шт.

25

257277A1

SEALING RING,Locking, 79.8mm ID x 89.2mm OD x 3.5mm Thk

Clutch Lube

2шт.

26

84205621

SEALING RING

37.64mm ID x 41.2mm OD x 2.3mm Thk

4шт.

27

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

2шт.

28

130503H

BEARING CUP

82.931mm OD

2шт.

29

87105116

SEALING RING,82.22mm ID x 87.45mm OD x 2.62mm Thk

2шт.

30

87105109

CLUTCH PLATE,105mm ID x 141mm OD x 7mm Thk

Clutch Shift

2шт.

31

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction, Shift Clutch, 48T

4шт.

32

87109365

PLATE

Steel, Separator, 106.5mm ID x 143mm OD x 5mm Thk

2шт.

33

87105115

SEALING RING,64.77mm ID x 70mm OD x 2.62mm Thk

2шт.

34

87105676

PISTON

Clutch, 70.4mm ID

2шт.

35

87105113

SPRING

Clutch Return, 75.9mm ID x 135mm W

2шт.

36

87105114

RING

70.2mm ID x 80mm OD x 3.8mm W

2шт.

37

300636

SNAP RING,M70, External

2шт.

38

619585C91

SEAL,51.94mm ID x 76.33mm OD x 9.5mm Thk

2шт.

39

87107563

SHAFT

Unload Drive, 314mm L

1шт.

40

87105111

GEAR

PTO Clutch, 60T

1шт.

41

378154A1

SHIM,0.127mm Thk

75mm ID x 82mm OD x 0.127mm Thk

1шт.
