Запчасти Case IH 9230 (14.100.AR[03]) - VAR - 425465, 425464, 425361, 425362 - PTO, VARIATOR, ROTOR (14) - MAIN GEARBOX & DRIVE

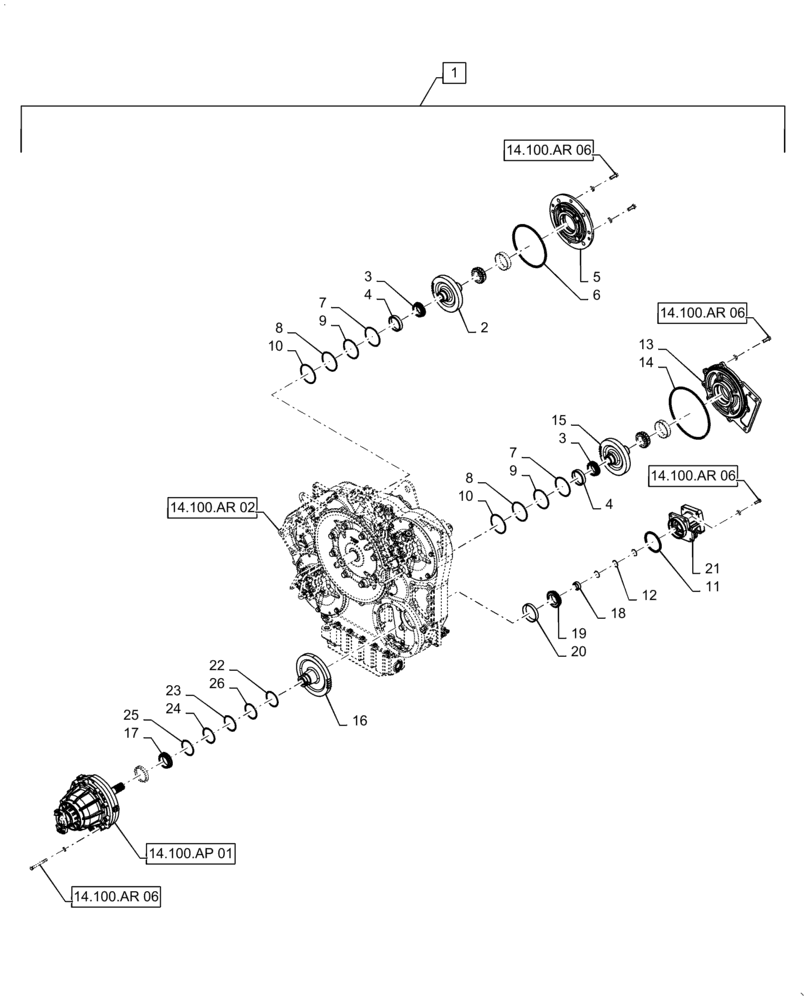

Схема запчастей Case IH 9230 - (14.100.AR[03]) - VAR - 425465, 425464, 425361, 425362 - PTO, VARIATOR, ROTOR (14) - MAIN GEARBOX & DRIVE
11
3
18
9
2
4
19
12
3
14.100.ar 06
14.100.ap 01
7
15
10
14.100.ar 06
17
14
8
6
24
25
20
21
14.100.ar 06
26
5
23
9
14.100.ar 02
14.100.ar 06
1
13
22
16
7
10
4
8

Артикул

Название

Примечание

Количество

1

47590627

PTO

Assy, Incl 2 - 26

1шт.

2

86975203

GEAR

Pump Drive, 42T

1шт.

3

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

4шт.

4

105497H

BEARING CUP,96.85mm OD x 15.77mm W

4шт.

5

47375770

FLANGE

Hydrostatic Pump Drive

1шт.

6

238-5171

O-RING,0.103" Thk x 8" ID, -171, Cl 5, 75 Duro

1шт.

7

378158A1

SHIM

89mm ID x 96.25mm OD x 0.127mm Thk

1шт.

8

378159A1

SHIM

89mm ID x 96.25mm OD x 0.203mm Thk

1шт.

9

378160A1

SHIM

89mm ID x 96.25mm OD x 0.178mm Thk

1шт.

10

378161A1

SHIM

89mm ID x 96.25mm OD x 0.508mm Thk

1шт.

11

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

12

84205621

SEALING RING

37.64mm ID 41.2mm OD x 2.3mm Thk

3шт.

13

86997812

FLANGE

Feeder/Header Shaft

1шт.

14

238-5274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

1шт.

15

86975205

GEAR

Feeder/Header Drive, 51T

1шт.

16

86975206

GEAR

Rotor Drive, 57T

1шт.

17

86998145

BEARING ASSY,65mm ID x 100mm OD x 23mm W

1шт.

18

86996784

NEEDLE BEARING,39.99mm ID x 46.98mm OD x 15.85mm W

1шт.

19

298197R91

BEARING ASSY,63.5 mm ID x 21.996 mm

1шт.

20

29214H

BEARING CUP,110mm OD x 18.82mm W

1шт.

21

397700A1

PROTECTIVE SLEEVE

Rotor Variator

1шт.

22

359242A1

SHIM,0.1mm Thk

1шт.

23

359243A1

SHIM,0.15mm Thk

1шт.

24

359244A1

SHIM,0.3mm Thk

1шт.

25

359251A1

SHIM,0.5mm Thk

1шт.

26

87282628

SHIM,87mm ID x 98mm OD x 0.13mm Thk

1шт.

Выбрано товаров: 26
