(90.102.AZ) - SIDE PANEL, REAR

Запчасти Case IH 9230 (90.102.AZ) - SIDE PANEL, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

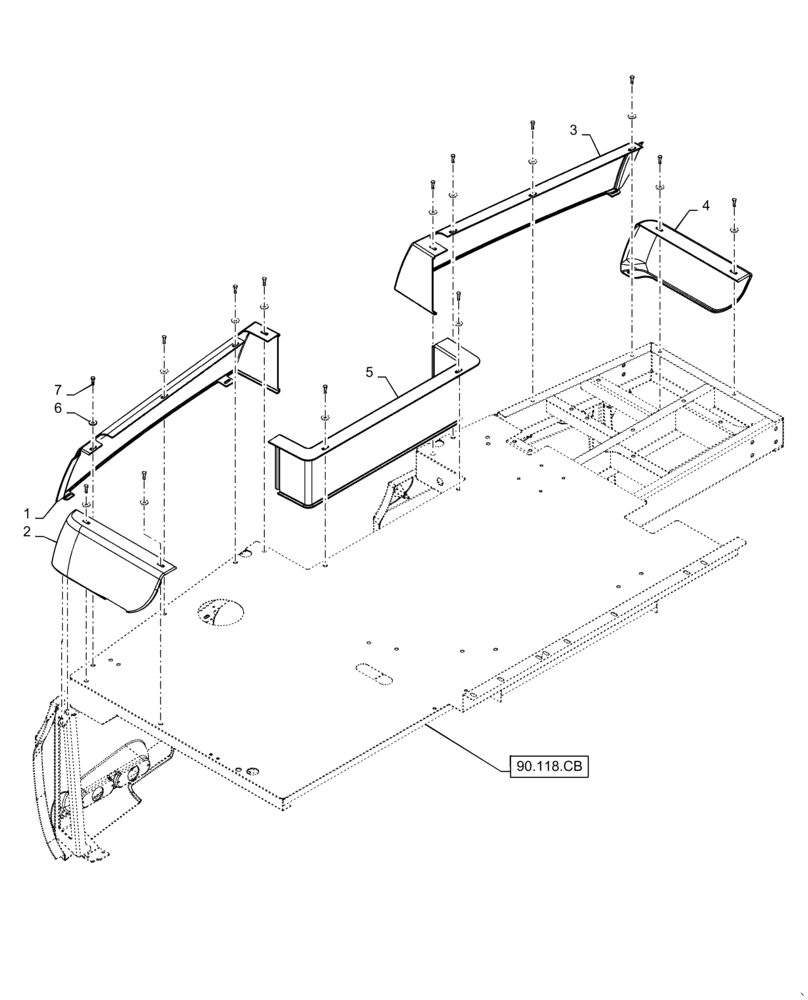

Схема запчастей Case IH 9230 - (90.102.AZ) - SIDE PANEL, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
4
6
5
1
2
90.118.cb
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84170100

PANEL ASSY.

Upper Skirt, Rear, RH

1шт.

2

84211910

PANEL ASSY.

Upper Skirt, Rear Outer, RH

1шт.

3

47672807

PANEL

Upper Skirt, Rear, LH

1шт.

4

47671774

SHIELD

Upper Skirt, Rear Outer, LH

1шт.

5

87728326

SHIELD

Upper Skirt, Center

1шт.

6

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

14шт.

7

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

14шт.
