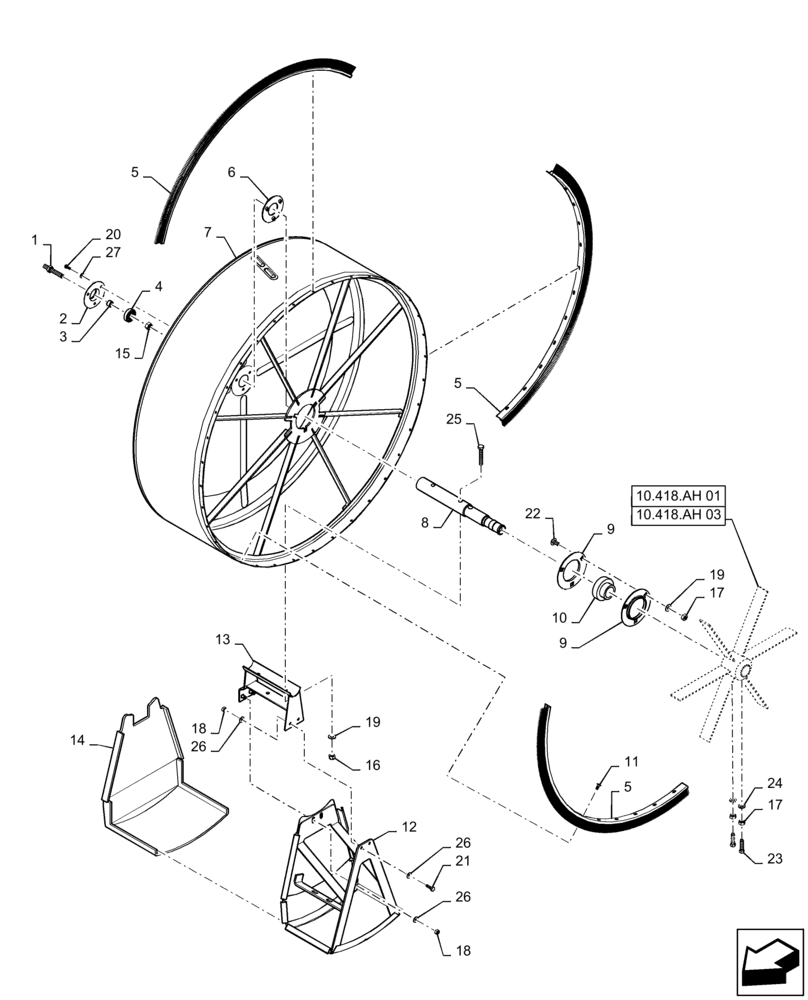

Запчасти Case IH 9230 (10.418.BD) - ROTARY AIR SCREEN DUST SCREEN (10) - ENGINE

1

84032079

BOLT,M12 x 77.50mm, Cl 8.8

1шт.

2

365018

BEARING HOUSING

Support

1шт.

3

434182

BUSHING,12mm ID x 17mm OD x 12.1mm L

Support

1шт.

4

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

5

84057430

BRUSH

Sucrose

3шт.

6

84071581

PLATE

Bearing

1шт.

7

47389724

SCREEN

Rotray Air

1шт.

8

47389726

SHAFT

Rotary Air Screen

1шт.

9

36403

BEARING HOUSING

Support

2шт.

10

84814912

BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm

1шт.

11

425519

RIVET,Pop, 3.96mm OD x 8.6mm L

36шт.

12

84454748

CHUTE

Rotary Air Screen Support

1шт.

13

84454780

SUPPORT

Screen Shaft

1шт.

14

87601729

ENVELOPE

Dust Cover

1шт.

15

9706685

NUT,M12 x 1.75, Cl 8

1шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

17

100016

NUT,M10 x 1.5, Cl 8

5шт.

18

9706690

NUT,M8 x 1.25, Cl 8

4шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

20

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

22

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

3шт.

23

391136

SET SCREW,Hex, M10 x 40mm, Cl 8.8

2шт.

24

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

25

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.
