Запчасти Case IH 9230 (10.414.AC[02]) - FAN DRIVE 8230/9230 (10) - ENGINE

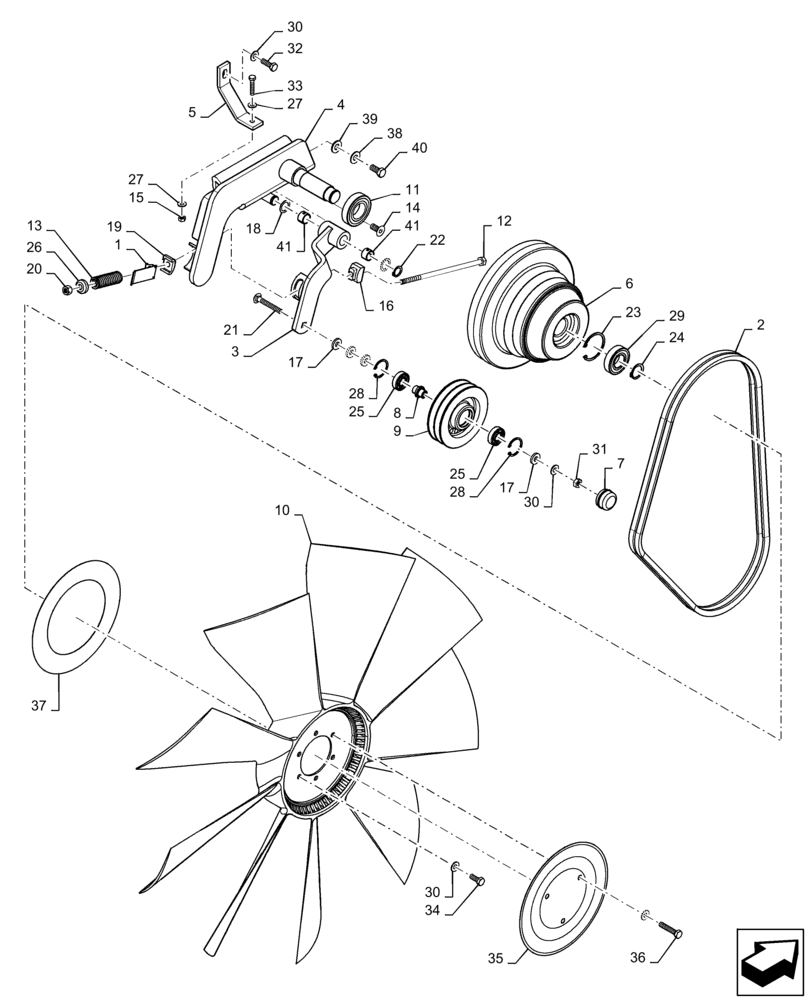

Схема запчастей Case IH 9230 - (10.414.AC[02]) - FAN DRIVE 8230/9230 (10) - ENGINE
34
17
18
27
30
20
32
16
31
38
21
28
25
7
40
6
1
2
41
3
14
35
28
10
17
29
39
27
13
12
15
30
24
26
41
11
8
9
23
22
33
5
36
19
30
37
4
25

Артикул

Название

Примечание

Количество

1

84465874

INDICATOR

Belt Tension

1шт.

2

87671291

SET OF BELTS,12.70 mm W x 1697.40 mm L

V-Belt

1шт.

3

87665166

ARM ASSY.

Belt Tensioner

1шт.

4

84189081

SUPPORT ASSY.

Fan Belt Tensioner Mount

1шт.

5

87665142

BRACKET

Bracket Support

1шт.

6

84306126

PULLEY

2 Groove, 280mm OD

1шт.

7

87540959

CAP

Dust, 40.22mm OD

1шт.

8

87538002

BUSHING,10.2mm ID x 25mm OD x 29.4mm L

1шт.

9

87533880

PULLEY,144mm OD

2 Groove, 147.9mm OD

1шт.

10

84457703

FAN,9 Blades, 965.2mm OD

Engine

1шт.

11

84438926

BALL BEARING,35mm ID x 72mm OD x 17mm W

35mm Id x 72mm OD x 17mm W

1шт.

12

84077701

BOLT,Hex, M10 x 250mm, Cl 8.8, Full Thd

1шт.

13

84069932

COMPRESSION SPRING,25mm OD x 100mm L

1шт.

14

84037971

HEX SOC SCREW,Flat, M12 x 25mm, Cl 8.8

2шт.

15

9706690

NUT,M8 x 1.25, Cl 8

1шт.

16

754131

GUIDE

Belt Tensioner Mount

1шт.

17

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

4шт.

18

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

2шт.

19

442398

GUIDE

Belt Tensioner Mount

1шт.

20

412141

NUT,M10 x 1.5, Cl 8

1шт.

21

374894

CARRIAGE BOLT,Sq Nk, M10 x 70mm, Cl 8.8

1шт.

22

370024

CIRCLIP,M20, Ext

1шт.

23

370012

RING,M62, Internal

1шт.

24

370003

SNAP RING,M30, External

1шт.

25

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

2шт.

26

356728

CUP

Belt Tension Mount

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

28

300644

SNAP RING,M40, Internal

2шт.

29

274198

BALL BEARING,30mm ID x 62mm OD x 16mm W

30m ID x 62mm OD x 16mm W

1шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

31

100016

NUT,M10 x 1.5, Cl 8

1шт.

32

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

33

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

34

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

35

84120714

PROTECTING COVER

Fan Dust Shield, Inner

1шт.

36

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

3шт.

37

84267202

DISC

Fan Dust Shield, Outer

1шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

39

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

40

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

41

382974

BUSHING,20.05mm ID x 23mm OD x 15mm L

2шт.

Выбрано товаров: 41
