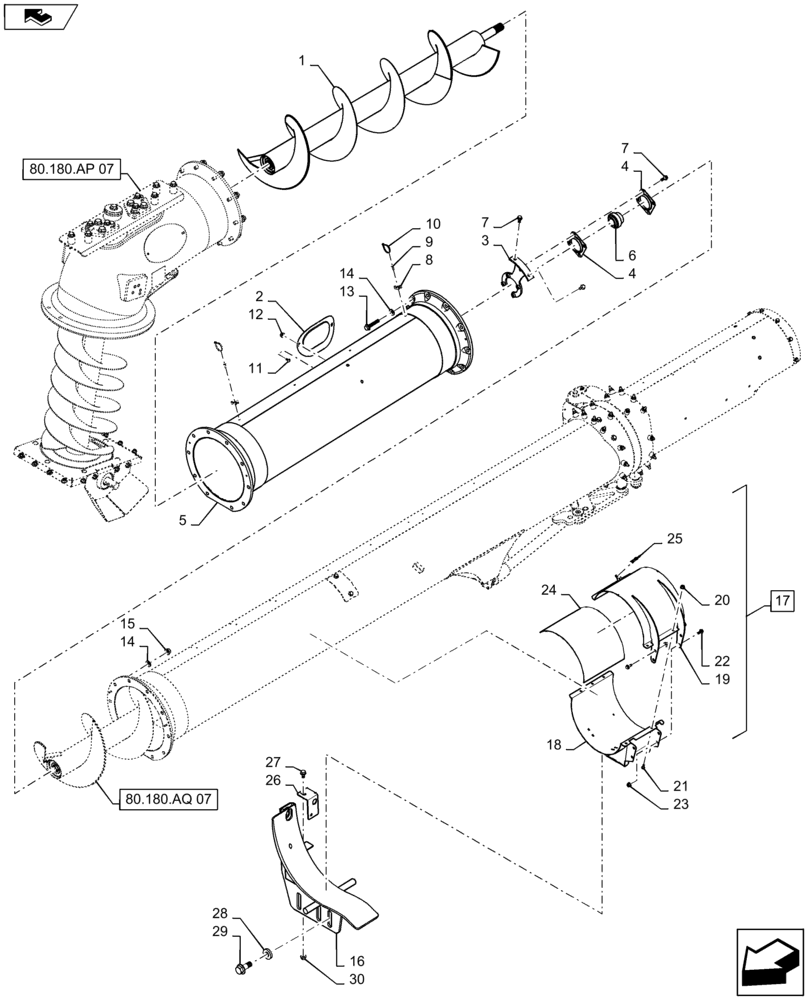

Запчасти Case IH 9230 (80.180.AP[08]) - VAR - 425353, 425356 - UNLOADING TUBE, HIGH SPEED, EXTENSION, ASSY (80) - CROP STORAGE/UNLOADING

1

47395186

AUGER

Extended Wear, High Capacity, Folding Tube Extension

1шт.

2

84307048

CAP COVER

Side Tube

1шт.

3

47392729

BRACKET

Bearing Support

1шт.

4

86979948

FLANGE

85mm Spherical Housing

2шт.

5

84536432

UNLOADING TUBE

High capacity, Folding Tube Extension

1шт.

6

84416910

BALL BEARING,41.27mm ID x 85mm OD x 22mm W

41mm ID

1шт.

7

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

6шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

10

86566989

CABLE TIE,208mm L

5шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

47411044

FLANGE BOLT,M16 x 95.4mm, Full Thd, Cl 10.9

10шт.

14

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

20шт.

15

86512498

FLANGE NUT,M16 x 2, Cl 10

10шт.

16

84485433

CRADLE

Tube Saddle

1шт.

17

84478902

CLAMP,391.6mm ID

Unload Tube Support, Incl 18 - 25

1шт.

18

84478886

CLAMP

Red

1шт.

19

47405788

CLAMP

Red

1шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

21

87030775

BOLT,M8 x 38.1mm, Cl 10.9

7шт.

22

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

24

84487455

RUBBER PAD

1шт.

25

87106279

PIN,6.4mm OD

Klik, Quick Connect

1шт.

26

47360554

BRACKET

Supporting

1шт.

27

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

28

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

3шт.

29

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

3шт.

30

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.
