Запчасти Case IH 9230 (80.175.AG[04]) - VAR - 425365, 425366 - TENSIONER,DUAL DRIVE (80) - CROP STORAGE/UNLOADING

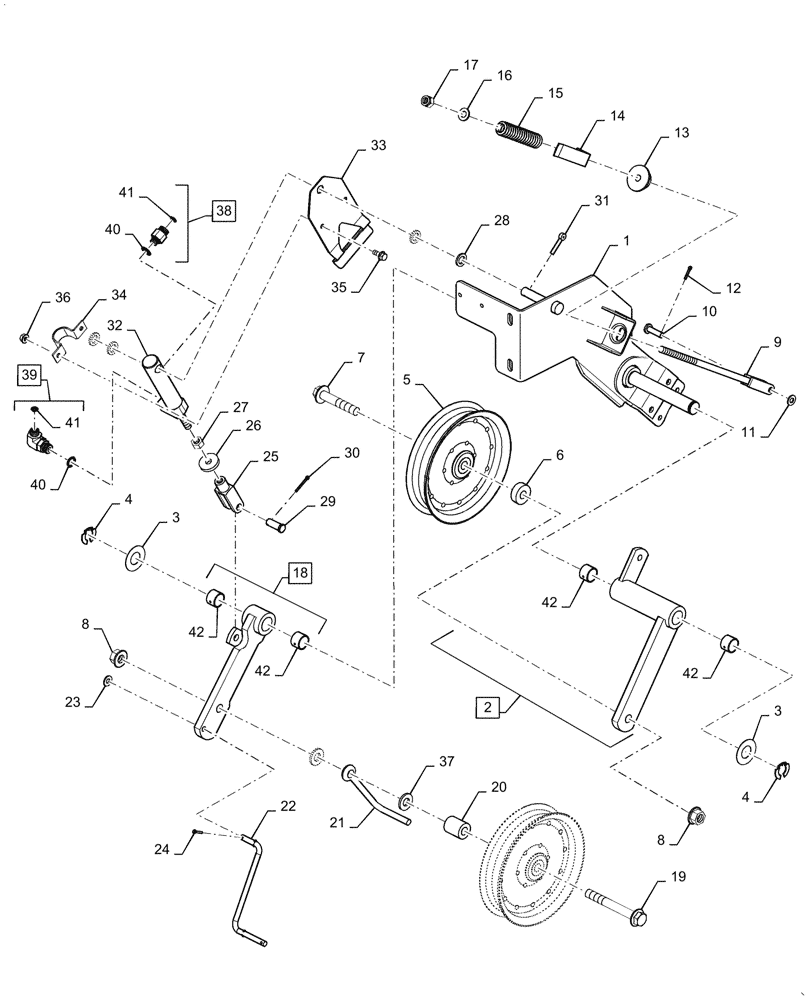

Схема запчастей Case IH 9230 - (80.175.AG[04]) - VAR - 425365, 425366 - TENSIONER,DUAL DRIVE (80) - CROP STORAGE/UNLOADING
31
1
23
12
30
6
40
20
22
25
40
37
11
10
16
32
36
14
8
19
35
2
33
28
41
8
42
4
41
27
4
26
34
29
15
42
39
17
7
13
38
18
42
42
24
9
3
5
21
3

Артикул

Название

Примечание

Количество

1

84486241

PLATE

Tensioner Support

1шт.

2

84233227

ARM

Tensioner, Front, Incl 42

1шт.

3

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

2шт.

4

579497

CIRCLIP,M20

2шт.

5

86588003

IDLER,51.6mm W x 228.6mm OD

Wheel

2шт.

6

86598190

BUSHING,16.25mm ID x 40mm OD x 17mm OAL

1шт.

7

86511847

BOLT,M16 x 90mm, Cl 8.8

1шт.

8

9804280

FLANGE NUT,Hex, M16, Cl 8

2шт.

9

86587035

ROD

Tensioner Adjuster

1шт.

10

390040

COTTER PIN,10mm OD x 39mm L

1шт.

11

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

13

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

1шт.

14

86601493

INDICATOR

Belt Tension

1шт.

15

87540186

SPRING,129.3mm Free Length

1шт.

16

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

17

412126

NUT,M12 x 1.75

1шт.

18

84474938

ARM

Tensioner, Rear, Incl 42

1шт.

19

87028051

BOLT,Hex Flg, M16 x 130, 10.9

1шт.

20

84470572

SPACER

16.26mm ID x 31.8mm OD x 38.8mm Thk

1шт.

21

84470570

ADJUSTMENT ROD

Unloader Belt, Upper

1шт.

22

84270061

ROD

Unloader Drive Belt, Upper

1шт.

23

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

24

80756

COTTER PIN,1/8" x 3/4"

1шт.

25

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

26

189153A1

WASHER

Unloader Clutch Retainer

1шт.

27

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

28

87613215

WASHER,0.66" ID x 1" OD x 0.12" Thk

4шт.

29

86636813

CLEVIS PIN,1/2" OD x 1-9/25" OAL

1шт.

30

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

31

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

1шт.

32

84300068

CYLINDER

Unload Clutch

1шт.

33

84172259

RETAINER

Unload Belt Idler Arm

1шт.

34

84226332

CLAMP

Unloader Retaining Plate

1шт.

35

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

36

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

37

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

38

84330955

VALVE

Orifice, Incl 40, 41

1шт.

39

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

Incl 40, 41

1шт.

40

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

41

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

42

84057311

BUSHING,25mm ID x 28mm OD x 20mm L

4шт.

Выбрано товаров: 42
