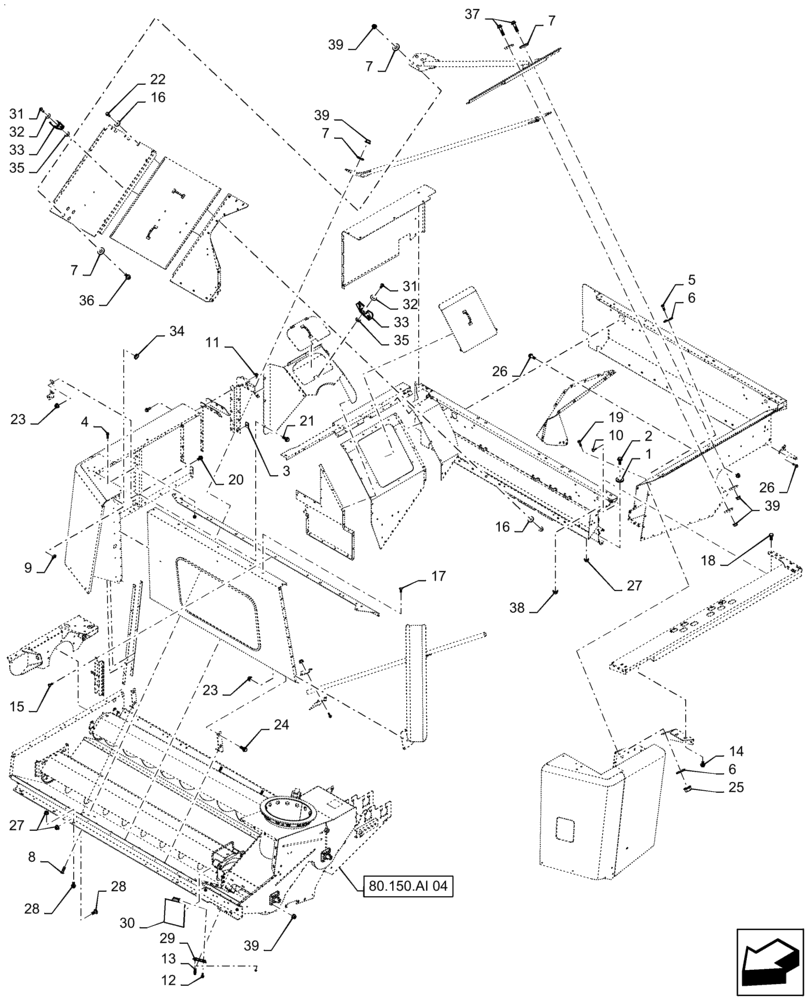

Запчасти Case IH 9230 (80.150.AR[08]) - VAR - 425367, 425371, 425373 - GRAIN TANK, FASTENER, ASN YDG222004 (80) - CROP STORAGE/UNLOADING

1

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

2

87698849

BOLT,M16 x 50mm, Cl 10.9

6шт.

3

87605597

WASHER,11mm ID x 6mm Thk

11mm Hole, 25mm x 40mm x 7.1mm W

1шт.

4

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

3шт.

5

87698834

BOLT,M8 x 48.1mm, Cl 10.9

1шт.

6

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

63шт.

7

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

24шт.

8

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

4шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

10

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

1шт.

11

87681210

FLANGE NUT,M8 x 1.25, Cl 10

13шт.

12

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

13

66809

SPRING,Compression, 19.05mm OD x 63.5mm L

Compression

1шт.

14

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

15

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

16

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

10шт.

17

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

5шт.

18

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

3шт.

19

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

20

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

21

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

12шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

158шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

20шт.

24

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

8шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

196шт.

26

87698833

BOLT,M8 x 33.1mm, Cl 10.9

51шт.

27

87016581

FLANGE NUT,M16 x 2, CI 10

10шт.

28

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

4шт.

29

84077042

BRACKET

Duct Cover

1шт.

30

87551345

DOOR

Cover

1шт.

31

445394

RIVET,Pop, 3/16" x 1/2" OAL

14шт.

32

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

13шт.

33

362786

FASTENER

Wing Nut

13шт.

34

86625130

PLUG,Dome, 1.250" hole, Nylon

1шт.

35

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

13шт.

36

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

4шт.

37

87670764

BOLT,M12 x 61.8mm, Cl 10.9

6шт.

38

43436

FLANGE NUT,M12

3шт.

39

86512497

FLANGE NUT,M12 x 1.75, Cl 10

14шт.
