Запчасти Case IH 9230 (80.150.AR[03]) - VAR - 425367, 425371, 425373 - GRAIN TANK, BSN YDG222004 (80) - CROP STORAGE/UNLOADING

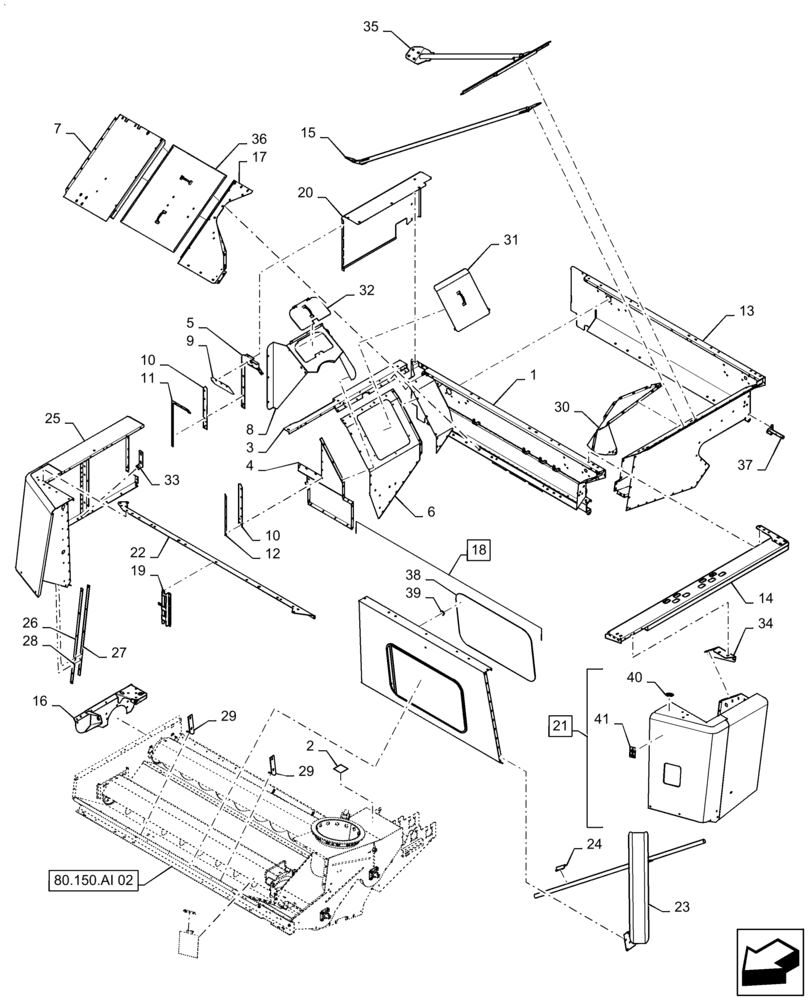

![Схема запчастей Case IH 9230 - (80.150.AR[03]) - VAR - 425367, 425371, 425373 - GRAIN TANK, BSN YDG222004 (80) - CROP STORAGE/UNLOADING](https://partsell.ru/storage/images/caseih/5313194.png)
№
Артикул
Название
Примечание
Количество
1
84536822
PANEL
Rear Wall
1шт.
2
84541747
DECAL
Auger Timing
1шт.
3
84355671
CHANNEL
Top, RH
1шт.
4
87551391
SHEET ASSY.
Bubble Up Tube Support
1шт.
5
87634778
SHEET ASSY.
Clean Grain Elevator Support
1шт.
6
84399498
SHEET
Bubble Up Tube Mount
1шт.
7
84399501
FLOOR
Rear, RH
1шт.
8
87551404
SHIELD
Bubble Up Tube Support
1шт.
9
87634844
SEAL,63.5mm W x 318mm L x 3.3mm Thk
Rear Corner, LH
1шт.
10
87524453
SEAL,50mm W x 512mm L x 2.5mm Thk
Clean Grain Elevator, Side
2шт.
11
87634845
STRIP
Strap, RH
1шт.
12
87551673
SHEET
Strap, LH
1шт.
13
84390801
SHEET
Rear Wall/ LH Support
1шт.
14
84394599
BEAM
Grain Tank, LH
1шт.
15
84376428
TUBE
Cross Brace
1шт.
16
84524970
SUPPORT
Bubble Up Tube Mount
1шт.
17
84390784
FLOOR
Rear, LH
1шт.
18
84376433
SERVICE KIT
Front Sheet, Incl 38, 39
1шт.
19
87551580
BRACKET
Mount
1шт.
20
84187764
COVER
Top, RH
1шт.
21
84510313
PANEL
Cover, Front, LH, Incl 40, 41
1шт.
22
84510283
ANGLE
Grain Tank Support, Front, Lower
1шт.
23
84376427
CHUTE
Front Angle
1шт.
24
87551606
CLIP
Securing Strap
1шт.
25
84387543
PANEL
Cover, Front, RH
1шт.
26
87551410
STRAP,830mm L
Panel Retainer, Rear, Upper
1шт.
27
87551411
STRAP,1035mm L
Panel Retainer, Front
1шт.
28
87551412
STRAP,230mm L
Panel Retainer, Rear, Lower
1шт.
29
47385576
ANGLE
Front Panel Support
2шт.
30
84390790
COVER
Rear Corner, LH
1шт.
31
87551397
COVER
Clean Grain Elevator
1шт.
32
87551406
COVER
Bubble Up Auger
1шт.
33
87657054
STRAP
Tie Down
1шт.
34
84343240
BRACKET
Top, Front, LH
1шт.
35
84361997
TUBE
Cross Brace
1шт.
36
84536821
DOOR
Rear, Center
1шт.
37
84326900
MOUNT
Cover
1шт.
38
86566851
GLASS
Front Panel
1шт.
39
9992358
ELASTIC STOP
Bumper
16шт.
40
84432904
DECAL
No Step
1шт.
41
84004740
DECAL
Warning, Auger Entanglement
1шт.
Выбрано товаров: 41
