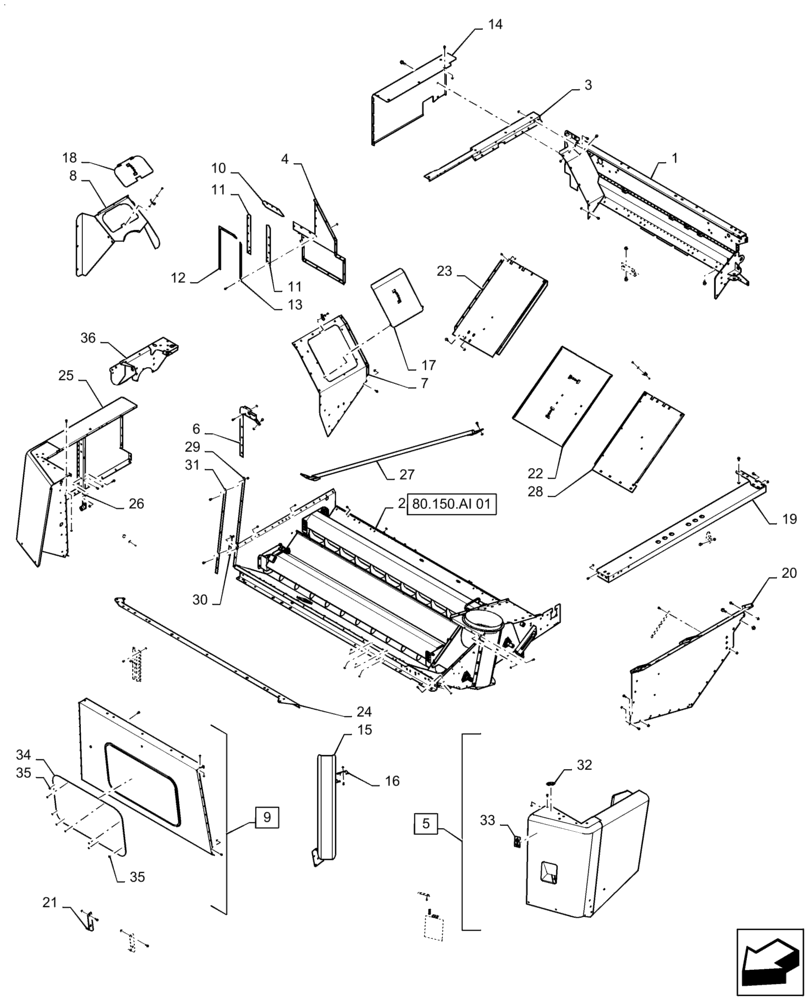

Запчасти Case IH 9230 (80.150.AR[01]) - VAR - 425252, 425369, 722513, 722763 - GRAIN TANK, STANDARD, BSN YDG222004 (80) - CROP STORAGE/UNLOADING

1

84403639

PANEL

Grain Tank, Rear

1шт.

2

84147065

ANGLE

Rear, LH

1шт.

3

84355671

CHANNEL

Top, RH

1шт.

4

87551391

SHEET ASSY.

Clean Grain Elevator Support, Rear

1шт.

5

84386328

PANEL

Cover, Front, LH, Incl 32, 33

1шт.

6

87634778

SHEET ASSY.

Clean Grain Elevator Support

1шт.

7

84399498

SHEET

Bubble Up Auger Support

1шт.

8

87551404

SHIELD

Bubble Up Tube Support

1шт.

9

84376433

SERVICE KIT

Front Wall, Incl 34, 35

1шт.

10

87634844

SEAL,63.5mm W x 318mm L x 3.3mm Thk

Clean Grain Elevator, Top

1шт.

11

87524453

SEAL,50mm W x 512mm L x 2.5mm Thk

Clean Grain Elevator, Side

2шт.

12

87634845

STRIP

Strap, RH

1шт.

13

87551673

SHEET

Strap, LH

1шт.

14

84187764

COVER

Cover, Top, RH

1шт.

15

87106204

CHUTE

Grain Tank

1шт.

16

87551606

CLIP

Securing Strap

1шт.

17

87551397

COVER

Clean Grain Elevator

1шт.

18

87551406

COVER

Bubble Up Access

1шт.

19

47420819

PROFILE

Top Rail, Rear, LH

1шт.

20

84373630

SHEET

Side, LH

1шт.

21

47385576

ANGLE

Front Panel Support

2шт.

22

84536821

DOOR

Rear Gearbox Access

1шт.

23

84399501

FLOOR

Rear, RH

1шт.

24

84510283

ANGLE

Rail, Bottom, Front

1шт.

25

84387543

PANEL

Cover, Front, RH

1шт.

26

87657054

STRAP

Tie Down

1шт.

27

84373643

SUPPORT TUBE

Cross Brace

1шт.

28

84403650

FLOOR

Rear, LH

1шт.

29

87551410

STRAP,830mm L

Panel Retainer, Rear, Upper

1шт.

30

87551412

STRAP,230mm L

Panel Retainer, Rear, Lower

1шт.

31

87551411

STRAP,1035mm L

Panel Retainer, Front

1шт.

32

84432904

DECAL

No Step

1шт.

33

84004740

DECAL

Warning, Auger Entanglement

1шт.

34

86566851

GLASS

Front Panel

1шт.

35

9992358

ELASTIC STOP

Bumper

16шт.

36

87720826

SUPPORT

Bubble Up Auger Mount

1шт.
