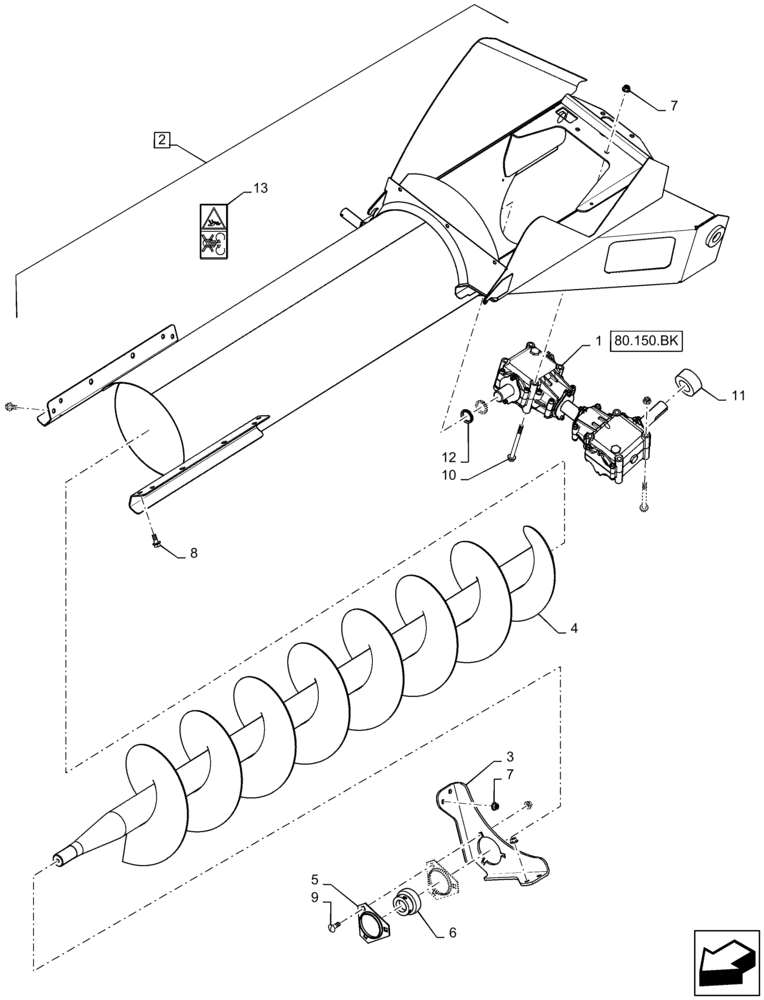

Запчасти Case IH 9230 (80.101.BK) - BUBBLE-UP TUBE (80) - CROP STORAGE/UNLOADING

1

87721343

GEARBOX

Bubble Up Drive

1шт.

1

87721343R

REMAN-GEARBOX

Bubble Up Drive

1шт.

1

87721343C

CORE-GEARBOX

Return Number

1шт.

2

84386327

BUBBLE-UP

Tube, Standard Wear, Incl 13 - VAR - 722481, 425241, Serial Range: -YDG222004

1шт.

2

84577855

BUBBLE-UP

Tube, Standard Wear, Incl 13 - VAR - 722481, 425241, Start Serial: YDG222004

1шт.

2

84403642

BUBBLE-UP

Tube. Extended Wear, Incl 13 - VAR - 425363, Serial Range: -YDG222004

1шт.

2

84577856

BUBBLE-UP

Tube, Extended Wear, Incl 13 - VAR - 425363, Start Serial: YDG222004

1шт.

3

86998682

BRACKET

Bubble Up Support

1шт.

4

87106615

AUGER

Standard Wear - VAR - 722481, 425241

1шт.

4

87733275

AUGER

Extended Wear - VAR - 425363

1шт.

5

84414985

FLANGED BEARING

72mm Spherical, 3 Hole

2шт.

6

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

15шт.

8

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

9

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

3шт.

10

87698843

FLANGE BOLT,M10 x 120mm, Cl 10.9

8шт.

11

87282653

SEAL,38mm ID x 68mm OD x 32mm Thk

Bubbler Shaft/ Grain Tank

1шт.

12

87280933

SEAL,28.96mm ID x 37.08mm OD x 7.62mm Thk

Gearbox Shaft

2шт.

13

84004736

DANGER DECAL

Caution

1шт.
