Запчасти Case IH 9230 (74.136.AO) - VAR - 425528 - DRIVE, FAN (74) - CLEANING

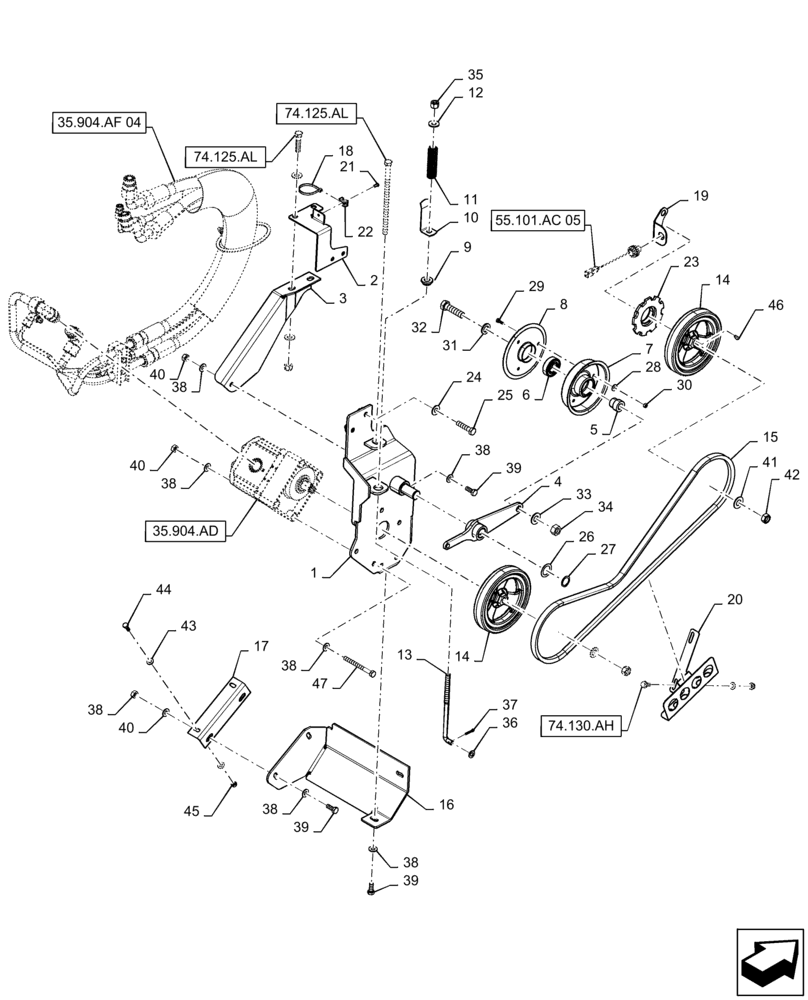

Схема запчастей Case IH 9230 - (74.136.AO) - VAR - 425528 - DRIVE, FAN (74) - CLEANING
38
26
55.101.ac 05
2
39
32
39
4
34
16
38
33
24
38
35.904.af 04
21
42
38
38
74.130.ah
74.125.al
46
39
1
22
40
23
40
38
45
43
38
44
20
35
15
18
35.904.ad
27
6
74.125.al
5
25
37
9
19
17
8
14
10
29
3
31
7
36
13
40
12
47
30
11
28
41
14

Артикул

Название

Примечание

Количество

1

87497372

SUPPORT ASSY.

Cleaning Fan Drive Pulley Mount

1шт.

2

84419505

BRACKET

Cleaning Fan Drive Belt Retainer

1шт.

3

87497003

SUPPORT ASSY.

Cleaning Fan Drive Belt Guide

1шт.

4

87572171

LEVER

Cleaning Fan Drive Belt Tensioner Arm

1шт.

5

9515145

BUSHING,17mm ID x 30mm OD x 29mm L

1шт.

6

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

7

84441735

HALF-PULLEY

Cleaning Fan Drive Belt Tensioner, Outer

1шт.

8

84441841

HALF-PULLEY

Cleaning Fan Drive Belt Tensioner, Inner

1шт.

9

439857

BUSHING,15mm ID x 23mm OD x 10mm L

1шт.

10

87498878

BRACKET

Belt Tension Indicator

1шт.

11

440651

SPRING

Belt Tension, 111mm Free Length, 17 Coils

1шт.

12

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

13

87573545

ROD

Belt Tensioner, M12 x 210mm OAL

1шт.

14

87750927

PULLEY,180mm OD

Fan Drive, 18.7mm ID x 180mm OD x 38.5mm Thk

2шт.

15

87484708

V-BELT,1805mm Nominal Length

Cleaning Fan Drive

1шт.

16

87497174

SUPPORT ASSY.

Lower Motor

1шт.

17

87632991

FIXING PLATE

Lower Mount, Rear

1шт.

18

86566989

CABLE TIE,208mm L

1шт.

19

87581722

BRACKET

Cleaning Fan Speed Sensor Mount

1шт.

20

84151730

BRACKET

Cleaning Fan Drive Belt Shield

1шт.

21

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

22

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

23

87399163

SPROCKET

Cleaning Fan Speed Reluctor

1шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

25

120122

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

26

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

1шт.

27

370002

CIRCLIP,M25, External

1шт.

28

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

29

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

30

9706755

NUT,M6, Cl 8

3шт.

31

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

32

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

1шт.

33

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

34

100020

NUT,M16 x 2.0, Cl 8

1шт.

35

412126

NUT,M12 x 1.75

1шт.

36

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

37

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

38

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

39

2975077

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

5шт.

40

100016

NUT,M10 x 1.5, Cl 8

7шт.

41

86900752

WASHER

17.42mm ID x 33.83mm OD x 2.21mm Thk

1шт.

42

84814897

NUT,M12 x 1.5, Cl 8

1шт.

43

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

44

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

45

824-1408

NUT,M8 x 1.25, Cl 10

2шт.

46

170004

KEY

Woodruff, 4mm x 6.5mm

1шт.

47

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

4шт.

Выбрано товаров: 47
