Запчасти Case IH 9230 (74.125.AL[03]) - AUGER BED, CLEAN GRAIN ELEVATOR, SEAL, REAR, BSN YDG222004 (74) - CLEANING

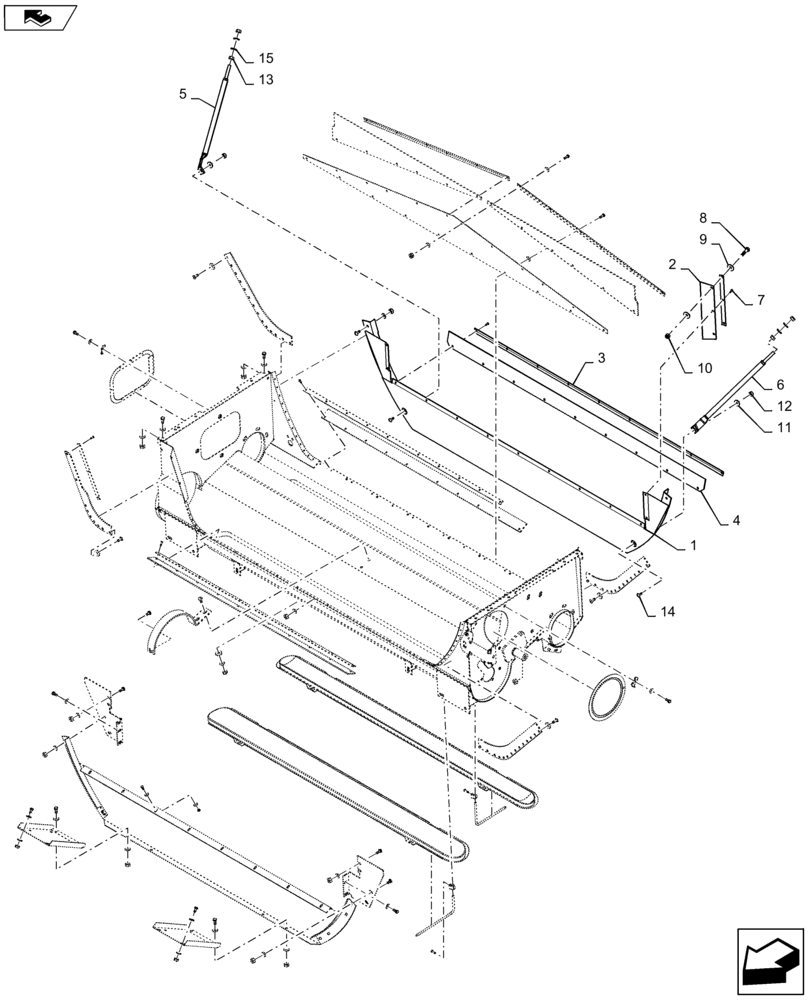

Схема запчастей Case IH 9230 - (74.125.AL[03]) - AUGER BED, CLEAN GRAIN ELEVATOR, SEAL, REAR, BSN YDG222004 (74) - CLEANING
15
6
2
3
12
7
9
14
5
13
4
8
10
1
11

Артикул

Название

Примечание

Количество

1

84320102

PLATE

Rear Housing

1шт.

2

922272

SEAL PROTECTION

Rear Housing, 70mm W x 322mm OAL x 3mm Thk

2шт.

3

84320105

STRIP

Rear Housing, 20mm W x 1580mm OAL x 1.65mm Thk

1шт.

4

84818311

SEAL PROTECTION

Rear Housing, 70mm W x 1630mm OAL x 3.16mm Thk

1шт.

5

444439

SUPPORT

Tube, RH

1шт.

6

444438

SUPPORT

Tube, LH

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

13шт.

8

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

9

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

353308

NUT,M6 x 1.0, Cl 8

2шт.

11

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

4шт.

12

9706690

NUT,M8 x 1.25, Cl 8

4шт.

13

9706685

NUT,M12 x 1.75, Cl 8

4шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

Выбрано товаров: 15
