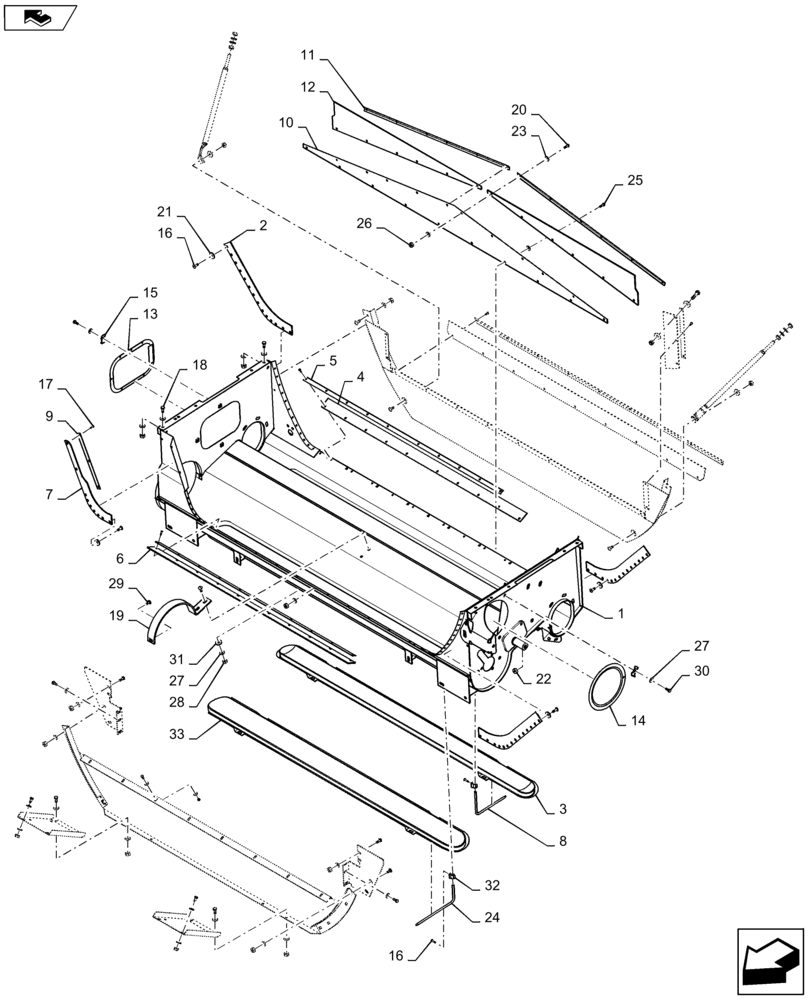

Запчасти Case IH 9230 (74.125.AL[01]) - HOUSING, CLEAN GRAIN ELEVATOR, LOWER, SELF-LEVELLING, STANDARD, BSN YDG222004 (74) - CLEANING

1

84525091

HOUSING

Auger Bed Assy

1шт.

2

87282881

SEAL PROTECTION

Side Housing, 50mm W x 333mm OAL x 4mm Thk

3шт.

3

84078027

COVER

Auger Trough, 1589mm OAL

1шт.

3

84429238

COVER

Return Tailings, Round Holes

1шт.

3

740667

COVER

Return Tailings, Slotted Holes

1шт.

4

451792

SEAL PROTECTION

Rear Housing, 50mm W x 1249mm OAL x 4mm Thk

1шт.

5

84320089

STRIP

Seal Retaining, 20mm W x 1255mm OAL x 1.65mm Thk

2шт.

6

451794

SEAL PROTECTION,50mm W x 1275mm OAL x 4mm Thk

Front Housing

1шт.

7

87282880

SEAL

Side Housing, Front, 50mm W x 415.9mm OAL x 4mm Thk

1шт.

8

9819720

PIN,7.94mm OD

90°, 135mm W x 191mm OAL

2шт.

9

84320082

SLAT

Front, Seal Securing, 20mm W x 280mm OAL

3шт.

10

87696056

MOUNTING PLATE

Rear Seals

1шт.

11

84320079

STRIP

Seal Securing, Rear

2шт.

12

87552399

SEAL PROTECTION

Rear Auger Housing

2шт.

13

84320078

DOOR

Housing Cleanout, RH

1шт.

14

84320087

DOOR

Housing Cleanout, LH

1шт.

15

425093

CLAMP

Door, 20mm W x 45mm OAL

6шт.

16

87658114

SUPPORT

Front Housing

52шт.

17

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

25шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

19

84072271

SUPPORT

Auger Cover

1шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

21

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

48шт.

22

9706755

NUT,M6, Cl 8

8шт.

23

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

36шт.

24

9819719

PIN,7.94mm OD

90°, 95mm W x 425mm OAL

2шт.

25

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

26

353308

NUT,M6 x 1.0, Cl 8

10шт.

27

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

29шт.

28

9706690

NUT,M8 x 1.25, Cl 8

13шт.

29

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

13шт.

31

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

32

323307

CLAMP

Spring, 25mm OAL

4шт.

33

87693856

COVER

Auger, RFC

1шт.

33

84429240

COVER

Round Holes

1шт.

33

740666

COVER

Slotted Holes

1шт.
