Запчасти Case IH 9230 (74.118.AO) - VAR - 722731, 722733 - REMOTE CONTROL, SIEVE, LOWER (74) - CLEANING

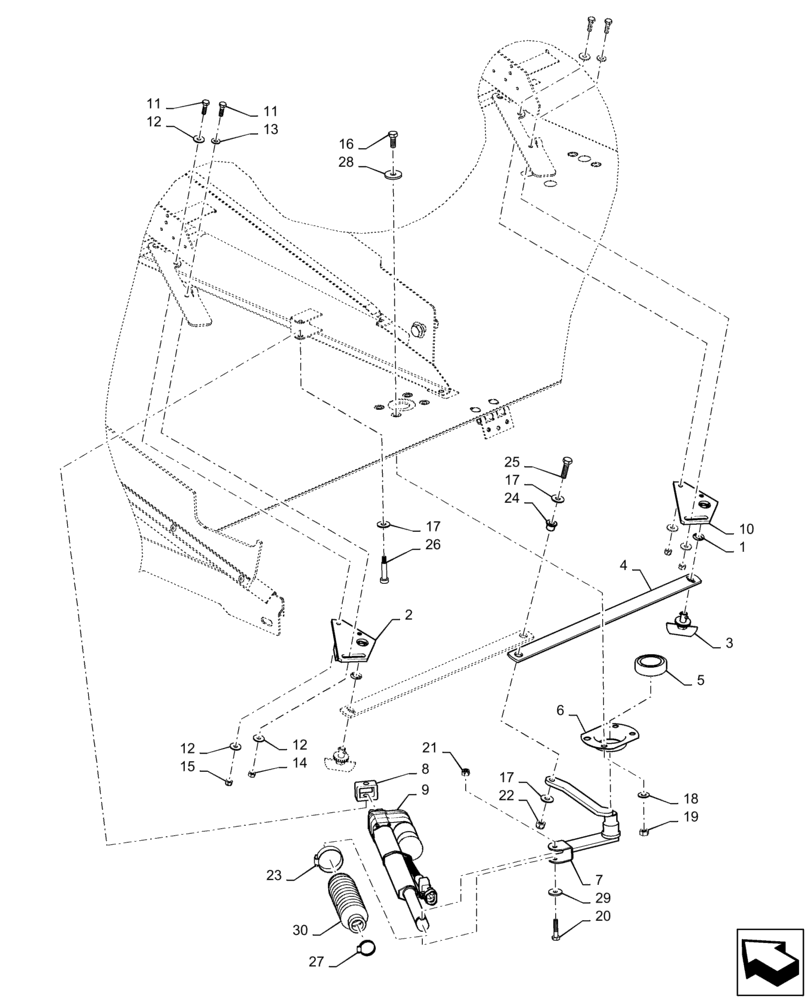

Схема запчастей Case IH 9230 - (74.118.AO) - VAR - 722731, 722733 - REMOTE CONTROL, SIEVE, LOWER (74) - CLEANING
25
28
18
14
22
1
2
9
16
23
12
17
27
8
15
26
7
19
17
17
11
5
3
24
29
11
20
30
4
10
6
21
12
13
12

Артикул

Название

Примечание

Количество

1

9514605

LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk

2шт.

2

84062611

PLATE

Adjustment Linkage

1шт.

3

9831581

LOCK

Quick Turn

2шт.

4

87011102

LEVER

Adjustment Linkage

2шт.

5

34439

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

1шт.

6

87526988

HOUSING

Housing

1шт.

7

87011804

LEVER

Arm

1шт.

8

87711044

BLOCK,16.8mm ID x 26mm OD x 34mm OAL x 26mm Thk

Actuator Mount

1шт.

9

47448585

ACTUATOR

Sieve Adjustment

1шт.

10

84053677

PLATE

Coupling

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

12

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

14

9706755

NUT,M6, Cl 8

2шт.

15

353308

NUT,M6 x 1.0, Cl 8

2шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

17

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

3шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

9706690

NUT,M8 x 1.25, Cl 8

4шт.

20

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

21

280129

NUT,1/4"-20

1шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

23

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

1шт.

24

87013640

BUSHING,8mm ID x 12.75mm OD x 12.26mm L

Brone, 12.75mm OD x 8mm ID x 12.26mm OAL

1шт.

25

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

26

87471830

STEP BOLT,M6 x 1.0 x 46.5mm, Gr 12.9

1шт.

27

326082

CLAMP,18mm - 25mm

Band, 17mm Adjustment

1шт.

28

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

4шт.

29

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

1шт.

30

84053431

BELLOWS

Rubber Boot

1шт.

Выбрано товаров: 30
