Запчасти Case IH 9230 (74.118.AA[01]) - LOWER SHOE DRIVE, BSN YDG222004 (74) - CLEANING

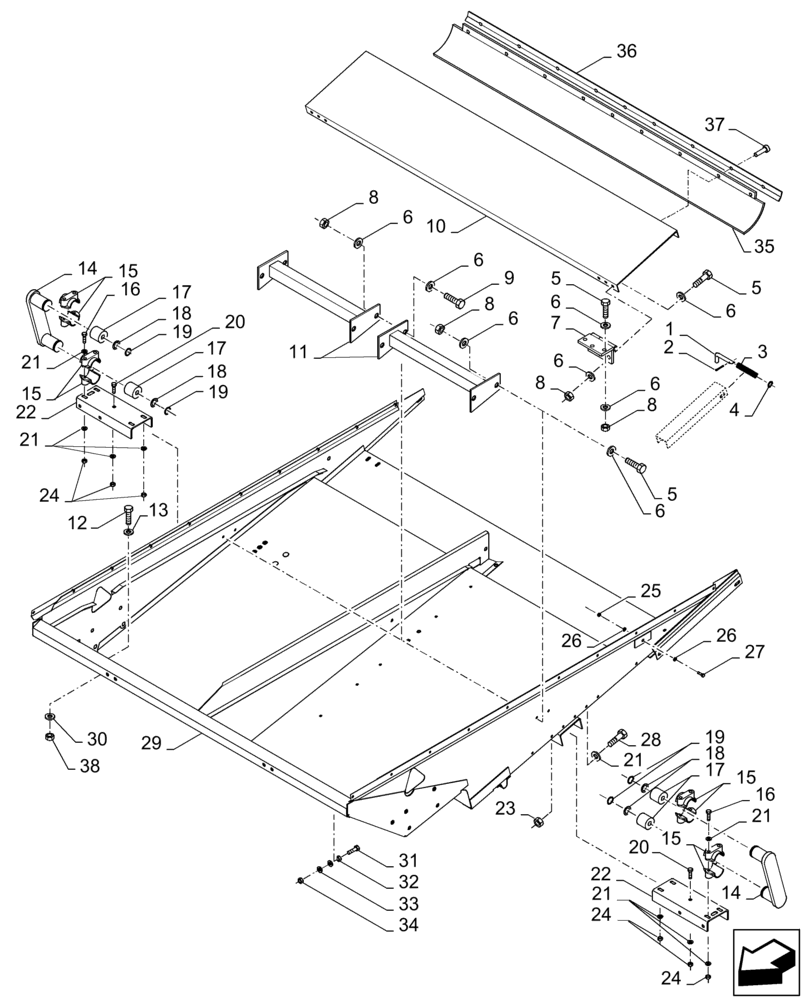

Схема запчастей Case IH 9230 - (74.118.AA[01]) - LOWER SHOE DRIVE, BSN YDG222004 (74) - CLEANING
17
6
6
6
23
20
7
20
8
11
14
19
27
18
1
6
26
22
15
24
21
8
25
4
2
8
16
6
19
26
5
13
24
36
24
28
12
21
5
10
21
14
6
6
17
31
18
32
30
8
9
34
21
15
33
16
3
35
37
17
19
15
5
6
18
38
15
29
22
21

Артикул

Название

Примечание

Количество

1

394549

HANDLE,12mm OD

Panel Retainer

2шт.

2

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

3

84814911

SPRING

Compression

2шт.

4

140223

WASHER,M13 x 25mm OD x 2mm Thk

2шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

6

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

7

86529373

HINGE

Shoe Cleanout

3шт.

8

9706755

NUT,M6, Cl 8

14шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

10

84390706

COVER

Shoe Cleanout

1шт.

11

84320452

PROFILE

Lower Shoe Support

2шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

2шт.

14

87562561

ARM

Grain Pan Drive

2шт.

15

320033

BEARING HALF

Half Bearing

8шт.

16

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

4шт.

17

84000052

RUBBER BUSHING,14mm ID x 40mm OD x 38mm L

14mm ID x 40mm OD x 38mm OAL

4шт.

18

84032520

WASHER,19.5mm ID x 29mm OD x 1mm Thk

4шт.

19

300627

SNAP RING,M19, External

4шт.

20

412597

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

22

747826

SUPPORT

Drive Arm Mount

2шт.

23

9706690

NUT,M8 x 1.25, Cl 8

1шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

25

9706685

NUT,M12 x 1.75, Cl 8

1шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

27

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

M12 x 40

1шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

29

84393491

SHAKER SHOE

Lower

1шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

31

86977775

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

32

320648

NUT,M10, Cl 8

1шт.

33

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

34

100016

NUT,M10 x 1.5, Cl 8

1шт.

35

87105832

CANVAS,250mm W x 1585mm OAL

Rubber

1шт.

36

87000280

STRIP

Seal Retainer

1шт.

37

84446204

RIVET,Pop, 6.28mm OD x 19.5mm L

10шт.

38

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

Выбрано товаров: 38
