Запчасти Case IH 9230 (74.110.AD) - GRAIN PAN (74) - CLEANING

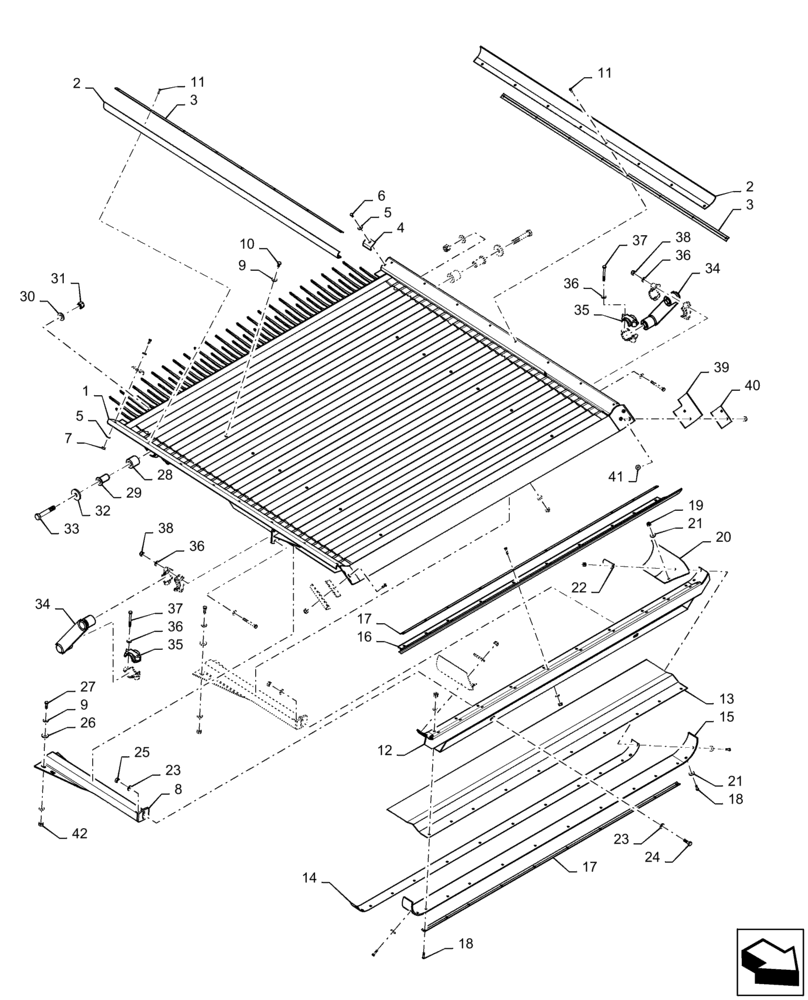

Схема запчастей Case IH 9230 - (74.110.AD) - GRAIN PAN (74) - CLEANING
34
36
29
9
23
36
16
2
8
20
26
40
32
5
18
4
3
22
36
9
21
31
14
15
2
27
1
25
11
19
28
11
39
17
37
18
37
30
24
7
12
36
38
35
35
42
6
13
41
38
23
3
5
21
10
34
17
33

Артикул

Название

Примечание

Количество

1

87742812

GRAIN PAN

1578mm W x 1542mm OAL

1шт.

2

87318666

SEAL PROTECTION

Pan Edge, 80mm W x 1397mm OAL x 3mm Thk

2шт.

3

87318665

STRIP

Securing, 20mm W x 1340mm OAL x 1.65mm Thk

2шт.

4

429635

MOUNTING PLATE

Front Corner

2шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

24шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

9706755

NUT,M6, Cl 8

2шт.

8

87318664

SUPPORT

Rear Seal Mount

2шт.

9

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

28шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

12шт.

11

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

16шт.

12

84462472

SUPPORT

Rear Seal

1шт.

13

87376934

CANVAS

Rubber, 250mm W x 1540mm OAL x 1.3mm Thk

1шт.

14

84462460

SEALING STRIP

Poly, 857mm W x 1714mm OAL x 1.5mm Thk

1шт.

15

87333212

RUBBER SEAL,70mm W x 1816mm OAL

1шт.

16

84005167

RUBBER SEAL,70mm W x 1677mm OAL

1шт.

17

84000704

STRIP

Securing, 20mm W x 1515mm OAL

2шт.

18

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

26шт.

19

353308

NUT,M6 x 1.0, Cl 8

32шт.

20

87323001

CANVAS

Rear Edge, 156mm W x 215mm OAL x 2mm Thk

2шт.

21

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

8шт.

22

84007182

BRACKET

Securing Strap, Corner

2шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

24

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

25

100016

NUT,M10 x 1.5, Cl 8

2шт.

26

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

8шт.

27

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

28

338222

RUBBER BUSHING,21mm ID x 40mm OD x 38mm L

21mm ID x 40mm OD x 38mm OAL

2шт.

29

84052651

BUSHING,16.2mm ID x 35mm OD x 52mm L

16.2mm ID x 25mm OD x 52mm OAL

2шт.

30

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

2шт.

31

86000441

NUT,M16 x 2.0, Cl 8

2шт.

32

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

2шт.

33

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

2шт.

34

87486176

ARM

Grain Pan Drive

2шт.

35

320033

BEARING HALF

76mm OAL x 47mm Thk

8шт.

36

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

37

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

8шт.

38

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

39

84462428

PLATE

Nylon, 100mm W x 115mm OAL x 2.67mm Thk

2шт.

40

84462477

PLATE

Mounting

2шт.

41

14441321

HEX SOC SCREW,M6 x 16mm, Cl 8.8

6шт.

42

9706690

NUT,M8 x 1.25, Cl 8

8шт.

Выбрано товаров: 42
