Запчасти Case IH 9230 (74.101.BF[02]) - SUSPENSION, CLEANER, LINKAGE (74) - CLEANING

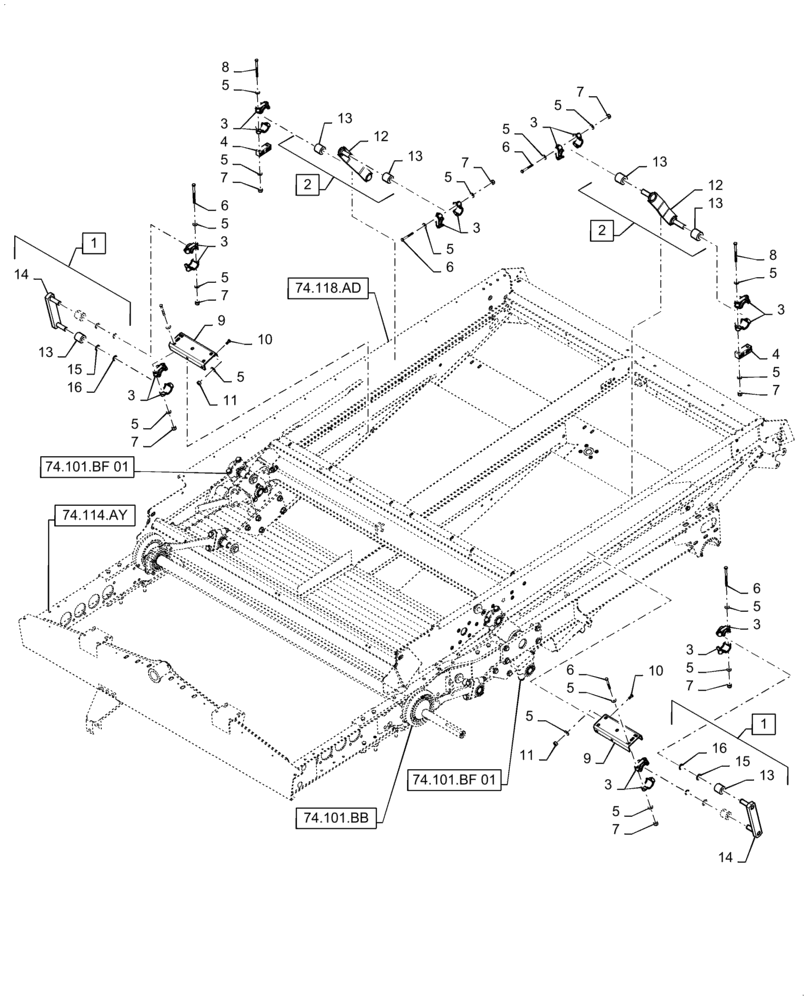

Схема запчастей Case IH 9230 - (74.101.BF[02]) - SUSPENSION, CLEANER, LINKAGE (74) - CLEANING
5
9
74.101.bf 01
74.101.bb
3
5
7
5
10
74.118.ad
8
3
15
11
7
7
13
5
5
5
14
13
6
5
7
5
6
3
6
3
1
13
6
12
5
9
15
3
5
4
5
6
7
8
2
14
5
2
74.114.ay
12
3
5
3
7
7
7
13
3
4
74.101.bf 01
16
5
16
10
5
11
13
5
13
5
1
3

Артикул

Название

Примечание

Количество

1

87565948

SERVICE KIT

Linkage, Center, Incl 13 - 16

2шт.

2

84203882

SERVICE KIT

Linkage, Rear, Incl 12 - 13

2шт.

3

320033

BEARING HALF

78mm OAL x 47mm Thk

16шт.

4

87314695

SPACER

Block, 9mm ID x 25mm W x 80mm OAL x 26.5mm Thk

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

42шт.

6

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

12шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

16шт.

8

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

4шт.

9

747826

SUPPORT

Bracket

2шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

9706690

NUT,M8 x 1.25, Cl 8

10шт.

12

87314041

ARM

Upper Shoe Pivot

2шт.

13

84000052

RUBBER BUSHING,14mm ID x 40mm OD x 38mm L

14mm ID x 40mm OD x 38mm Thk

8шт.

14

87562561

ARM

Center

2шт.

15

84032520

WASHER,19.5mm ID x 29mm OD x 1mm Thk

4шт.

16

300627

SNAP RING,M19, External

4шт.
