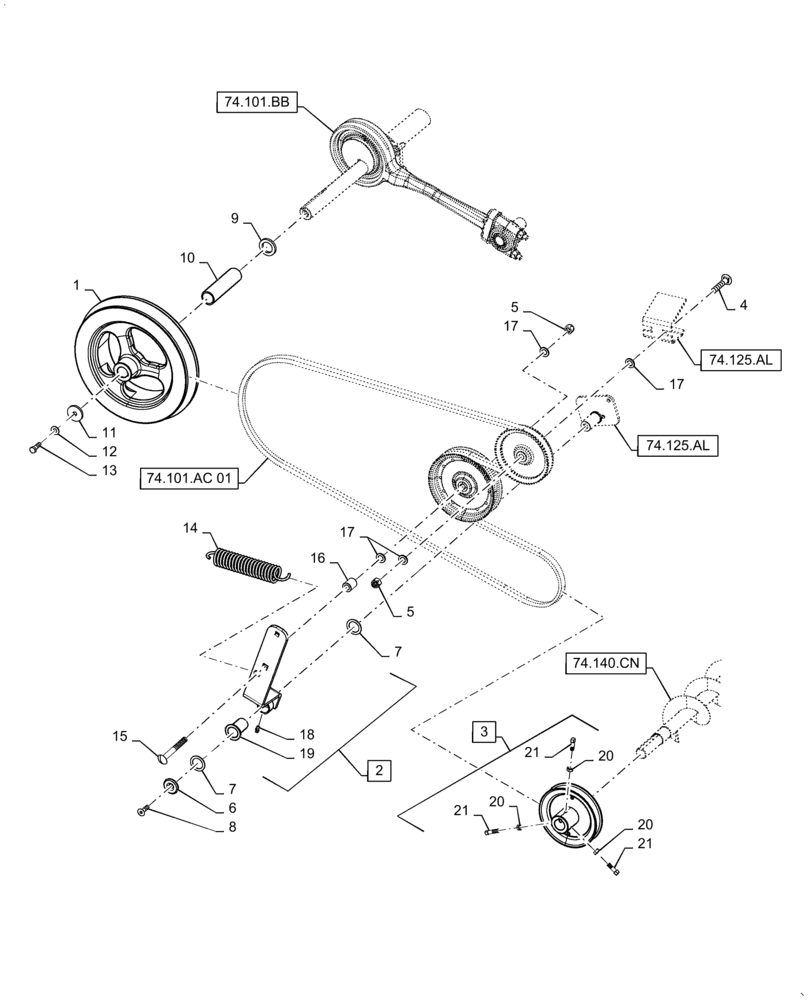

Запчасти Case IH 9230 (74.101.AC[02]) - VAR - 425528, 425529, 425399 - DRIVE, SHAKER (74) - CLEANING

1

84395269

PULLEY,419.4mm OD

Driven, Shaker Drive

1шт.

2

84423657

ARM

Belt Tension, Incl 18 - 19

1шт.

3

84395277

PULLEY,205mm OD

Tailings Auger Drive, Incl 20 - 21

1шт.

4

120047

CARRIAGE BOLT,M16 x 70mm, Cl 8.8

1шт.

5

86512555

NUT,M16 x 2, Cl 10

2шт.

6

84423521

THRUST WASHER,25mm ID x 50mm OD x 6.1mm Thk

15.3mm ID x 50mm OD x 4.6mm Thk

1шт.

7

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

2шт.

8

80412525

SCREW,FLAT, M12 x 1.75 x 35mm, Cl 8.8

1шт.

9

9832773

SPACER,36mm ID x 55mm OD x 7mm L

1шт.

10

87545449

SPACER

36.5mm ID x 44.45mm OD x 165mm OAL

1шт.

11

87023036

WASHER,0.53" ID x 2" OD x 0.25" Thk

1шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

13

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

14

86980549

SPRING

Shaker Pivot Idler, 201mm OAL, 19.5 Coils

1шт.

15

300663

CARRIAGE BOLT,M16 x 2.0 x 120mm, Cl 8.8

1шт.

16

86999741

SPACER,16.5mm ID x 30mm OD x 35mm L

16.5mm ID x 30mm OD x 35mm OAL

1шт.

17

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

18

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

19

87629473

BUSHING,34.45mm ID x 43.42mm OD x 56mm L

34.445mm ID x 54mm OD x 56mm OAL

1шт.

20

100016

NUT,M10 x 1.5, Cl 8

3шт.

21

393599

SET SCREW,M10 x 25mm, Cl 12.9

3шт.
