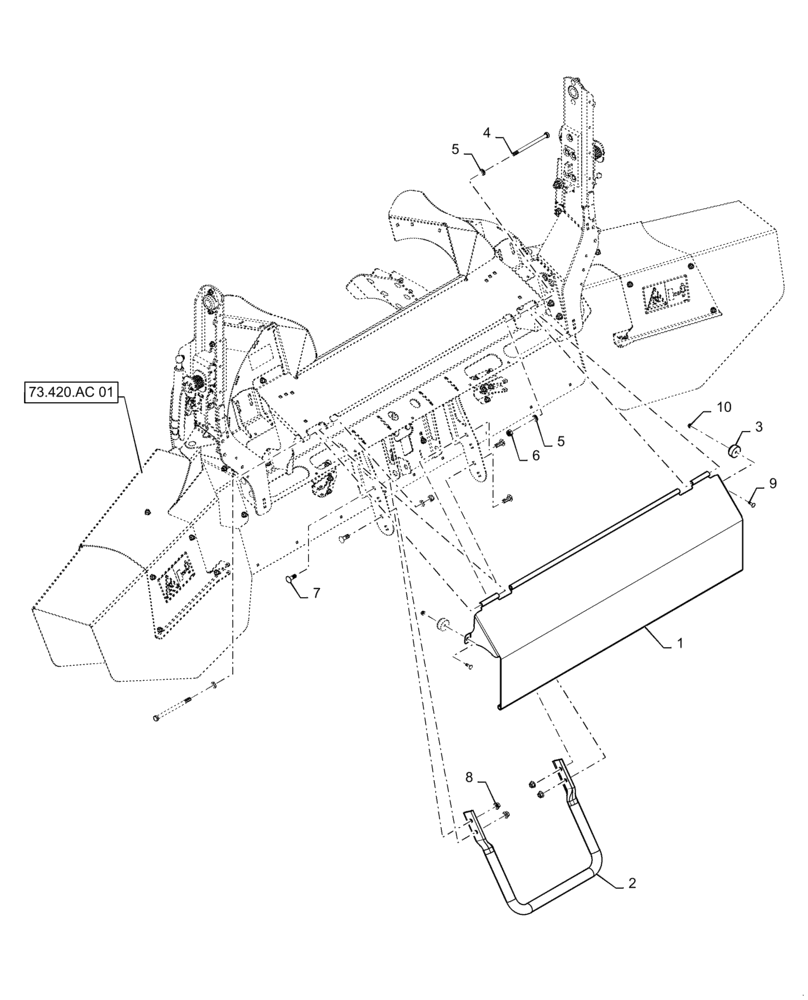

Запчасти Case IH 9230 (73.430.AA[02]) - VAR - 425489 - GUARD, SPREADER HOOD (73) - RESIDUE HANDLING

1

84313595

ACCESS COVER

Spreader

1шт.

2

87746671

HANDLE

Spreader Access

1шт.

3

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

2шт.

4

86624000

BOLT,M10 x 1.5 x 156.58mm, Cl 8.8

2шт.

5

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

7

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

4шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

9

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

2шт.

10

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.
