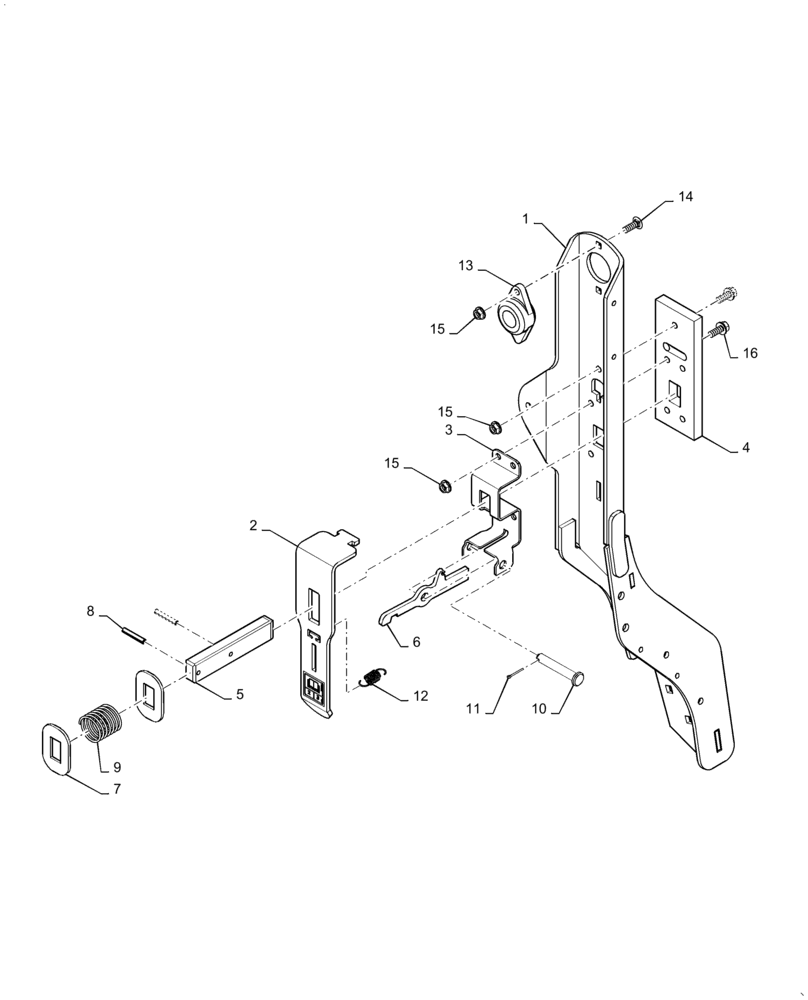

Запчасти Case IH 9230 (73.420.AC[02]) - VAR - 425339, 425340 - LATCH, CHAFF SPREADER, VERTICAL, BSN YDG222003 (73) - RESIDUE HANDLING

1

84401249

ARM

LH

1шт.

1

84385804

ARM

RH

1шт.

2

84495336

HANDLE

Release

1шт.

3

87283065

BRACKET

Mount

1шт.

4

87283070

SLIDING PAD

Poly

1шт.

5

87283063

LOCKING BAR

Spreader Latch

1шт.

6

87283062

TRIGGER

Spreader Latch

1шт.

7

87283069

LOCK WASHER

Spreader Lock

2шт.

8

86625115

PIN,M6 x 40mm OAL

2шт.

9

87283233

SPRING

Compression

1шт.

10

87301316

CLEVIS PIN,M12 x 75mm OAL

1шт.

11

87016659

COTTER PIN,M2.5 x 20mm OAL

1шт.

12

84420748

SPRING,Extension, 15.9mm OD x 38.1mm L

1шт.

13

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

1шт.

14

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

15

87681210

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

5шт.
