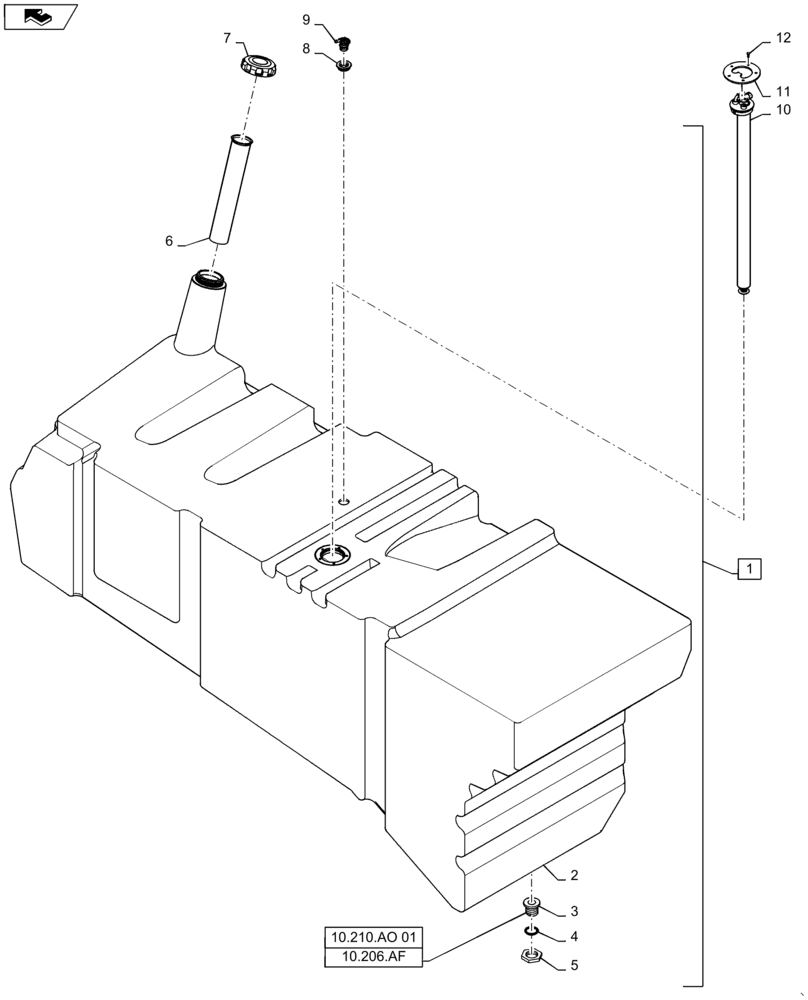

Запчасти Case IH 9230 (10.216.AI ) - TANK, MAIN FUEL (10) - ENGINE

1

84591543

FUEL TANK

1000L, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Fuel Tank, Incl in 1

1шт.

3

87676820

BUSHING

Brass

1шт.

4

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

5

87676821

NUT

Brass, LH Thread

1шт.

6

87676819

FUEL FILTER

Strainer

1шт.

7

87324388

FILLER CAP

Fuel

1шт.

8

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

Vent

1шт.

9

86999948

SAFETY VALVE

Rollover

1шт.

10

84591540

SENDER UNIT

Fuel Level

1шт.

11

84297949

RETAINER COLLAR,65mm ID x 115mm OD, 5 Holes

Fuel Tank Sender

1шт.

12

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

5шт.
