Запчасти Case IH 9230 (10.210.AO) - FUEL FILTER/PUMP (10) - ENGINE

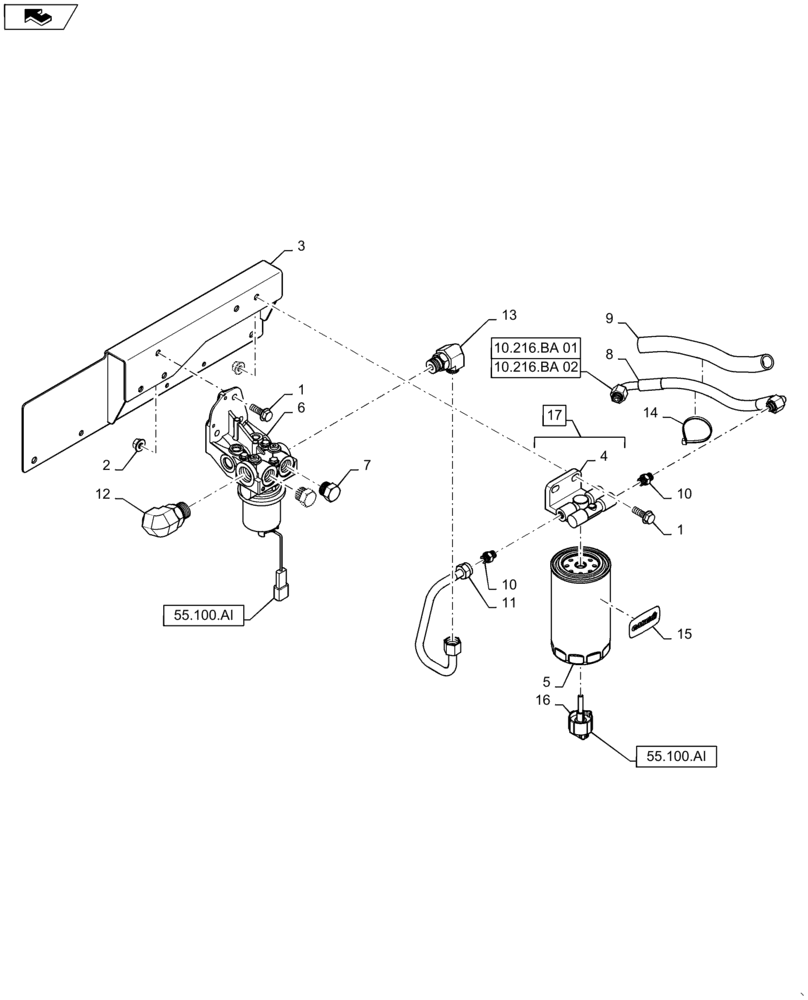

Схема запчастей Case IH 9230 - (10.210.AO) - FUEL FILTER/PUMP (10) - ENGINE
16
55.100.ai
3
10.216.ba 01
10.216.ba 02
55.100.ai
11
1
12
1
10
17
13
2
8
5
10
7
9
4
14
15
6

Артикул

Название

Примечание

Количество

1

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

5шт.

2

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

3

87734863

PLATE ASSY.

Fuel Filter/ Fuel Pump Mount

1шт.

4

87607877

HEAD

Fuel Filter

1шт.

5

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Service Only

1шт.

6

87676818

FUEL PUMP,12V, 4.5A

1шт.

7

86512512

PLUG,7/8" - 14 ORB

2шт.

8

87728315

HOSE

Fuel Tank To Fuel Filter

1шт.

9

87743277

CONDUIT

Hose Covering

1шт.

10

84431916

FITTING

M18 Male x M14 Male

2шт.

11

87728316

FUEL TUBE,.5" OD

1шт.

12

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

13

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

14

86566989

CABLE TIE,208mm L

1шт.

15

87679098

DECAL,37mm x 70mm

Case IH

1шт.

16

87519307

SENSOR

Water In Fuel

1шт.

17

84357723

FUEL FILTER

Incl 4, 5, 16

1шт.

Выбрано товаров: 17
