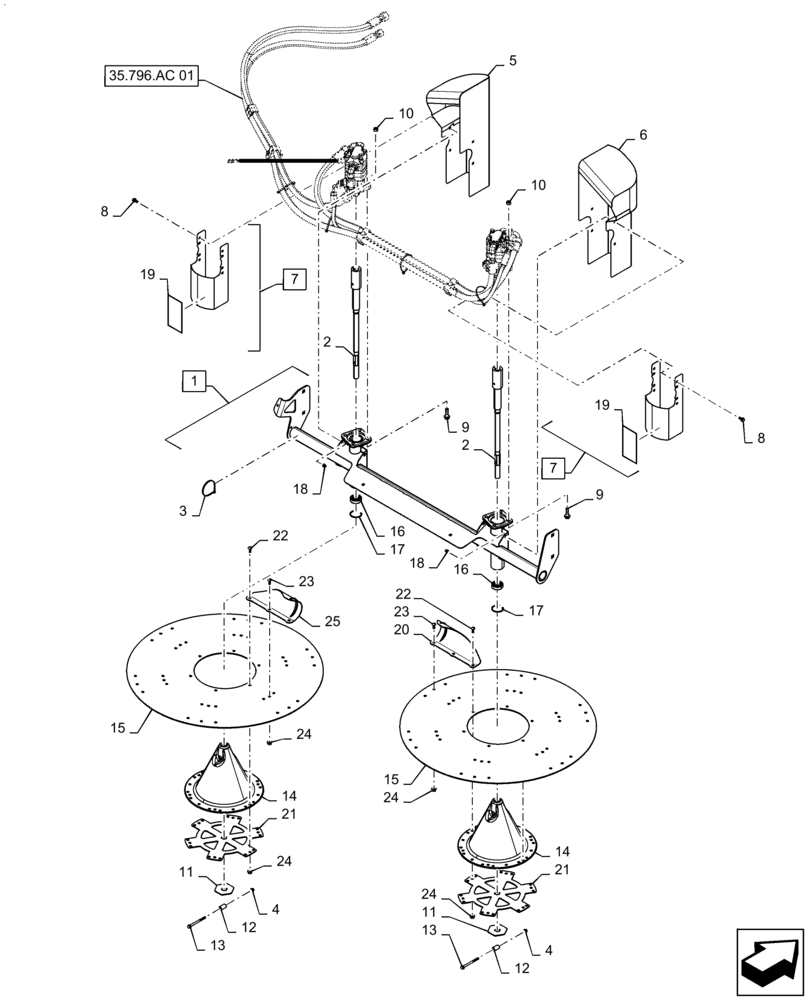

Запчасти Case IH 9230 (73.335.AB[06]) - VAR - 425488 - DISC, CHAFF SPREADER, HORIZONTAL, ASN YDG222004 (73) - RESIDUE HANDLING

1

47635299

FRAME

90CC Motor, Incl 16 - 18

1шт.

2

47462083

SHAFT

90CC Motor

2шт.

3

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

4

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

5

84596416

SHIELD

LH, 606.4mm OAL

1шт.

6

84596415

SHIELD

RH, 606.4mm OAL

1шт.

7

47468290

SHIELD

Hydraulic Motor, Incl 19

2шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

9

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

8шт.

10

337475

NUT,M12, Cl 10

8шт.

11

84550714

WASHER

80mm OD x 22.3mm ID

2шт.

12

13606211

SPACER,8.5mm ID x 18mm OD x 30mm OAL

4шт.

13

87301686

BOLT,M8 x 108.1mm, Cl 10.9

2шт.

14

47442301

SUPPORT

Straw Spreader Cone

2шт.

15

140189A1

DISC

Straw/ Chaff Spreader

2шт.

16

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

17

370011

CIRCLIP,M52 x 2mm Thk, Internal

2шт.

18

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

8шт.

19

47468276

DECAL

Caution Flying Debris, Vertical

1шт.

20

47467424

BAT

RH, High Wear

3шт.

21

84535671

DISC

Bottom Support

2шт.

22

847-3825

SERRATED SCREW,M8 x 25mm, Cl 10.9

12шт.

23

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

12шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

24шт.

25

47467427

BAT

LH, Curved Spreader

3шт.
