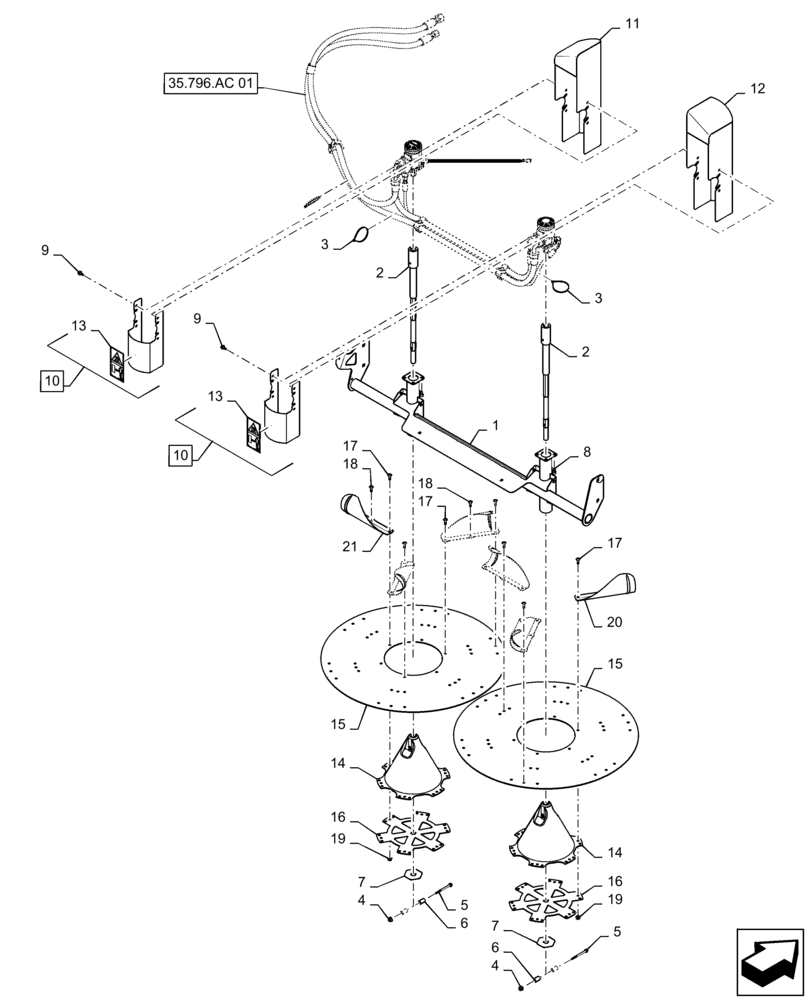

Запчасти Case IH 9230 (73.335.AB[02]) - VAR - 425488 - DISC, CHAFF SPREADER, SUPPORT TUBE, BSN YDG222003 (73) - RESIDUE HANDLING

1

47440914

SERVICE KIT

Frame, Disc Spreader

1шт.

2

47462081

SHAFT

Disc Drive

2шт.

3

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

4

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

5

87301686

BOLT,M8 x 108.1mm, Cl 10.9

2шт.

6

13606211

SPACER,8.5mm ID x 18mm OD x 30mm OAL

4шт.

7

84550714

WASHER

Hex

2шт.

8

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

8шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

10

47468290

SHIELD

Incl 13

2шт.

11

84531386

SHIELD

LH

1шт.

12

84531388

SHIELD

RH

1шт.

13

47468276

DECAL

Caution, Flying Debris

2шт.

14

188218C6

CONE,Spreader Support

Spreader Disc

2шт.

15

140189A1

DISC

Spreader

2шт.

16

84535671

DISC

Bottom

2шт.

17

847-3825

SERRATED SCREW,M8 x 25mm, Cl 10.9

12шт.

18

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

12шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

24шт.

20

47467424

BAT

High Wear, RH

3шт.

21

47467427

BAT

High Wear, LH

3шт.
