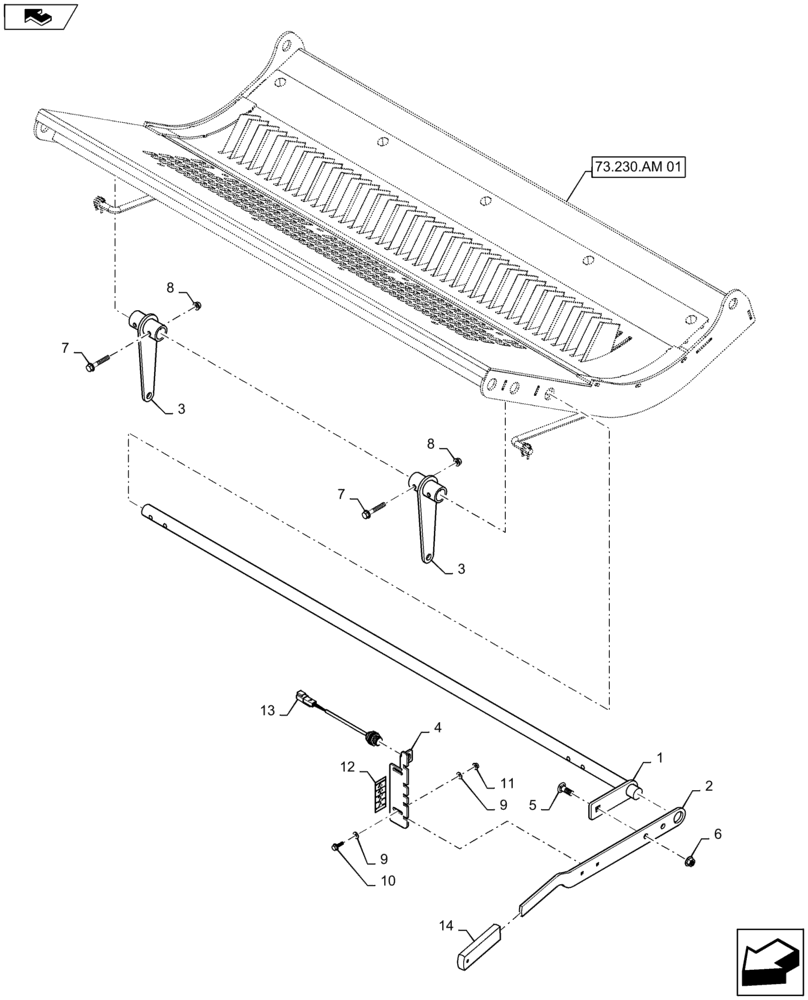

Запчасти Case IH 9230 (73.230.AP[01]) - LINKAGE, KNIFE HOLDER, MECHANICAL (73) - RESIDUE HANDLING

1

87670411

BAR

Pivot

1шт.

2

87670413

HANDLE

Knife Bar Adjustment

1шт.

3

87670419

ARM ASSY.

Pivot

2шт.

4

87670416

PLATE

Adjustment Lock

1шт.

5

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

1шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

7

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

4шт.

8

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

10

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

11

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

12

87280049

DECAL

Chopper Knife Position

1шт.

13

87342073

SENSOR

Knife Block Disengage

1шт.

14

357545

HANDLE GRIP

Rubber

1шт.
