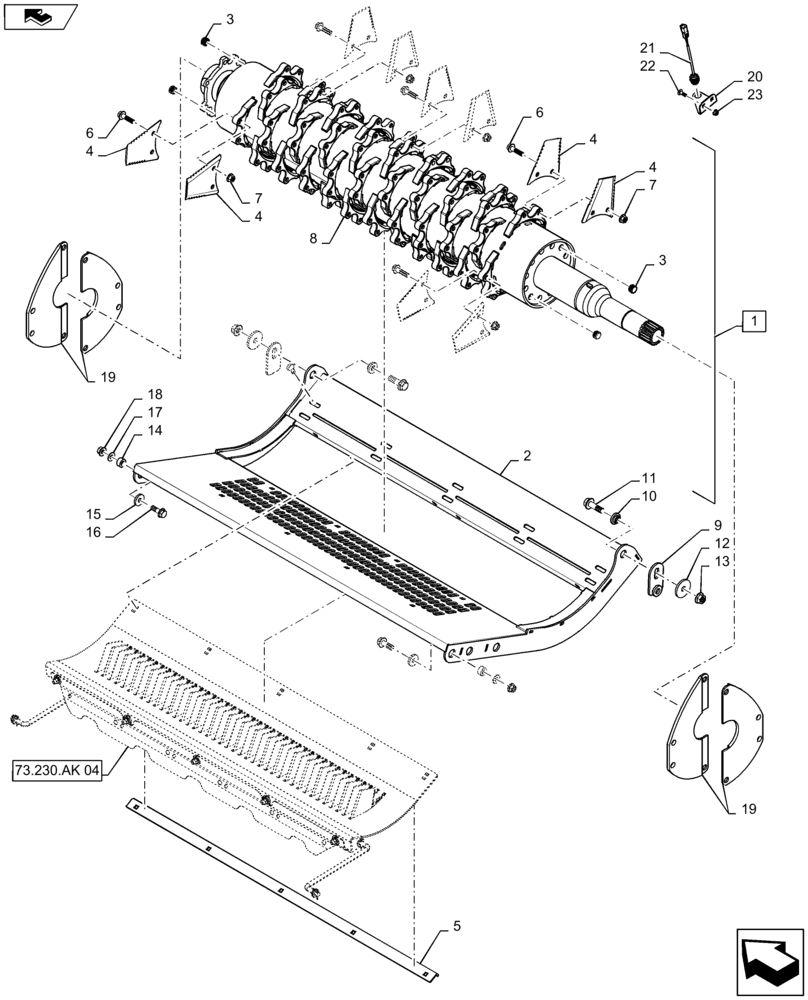

Запчасти Case IH 9230 (73.230.AM[02]) - CHOPPER BODY ASSY, MAGNACUT, 120 KNIVES (73) - RESIDUE HANDLING

1

84203959

CHOPPER BODY ASSY,120 Knives

120 Knife, Incl 3, 4, 6 - 8

1шт.

2

84187500

PAN ASSY.

Deflector

1шт.

3

87284568

PLUG

Plastic

24шт.

4

84232968

SERVICE KIT

Incl 6 Blades

1шт.

5

87687121

SLAT

Support

1шт.

6

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

120шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

120шт.

8

NS

NOT SERVICED

Body, Incl in 1

1шт.

9

84192820

GUIDE

Adjuster

2шт.

10

87000251

BUSHING,17mm ID x 34mm OD x 12mm L

2шт.

11

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

12

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

2шт.

13

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

14

699963

SPACER

12.7mm Tall

2шт.

15

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

16

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

18

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

19

87282748

SEAL

Chopper End Shaft

4шт.

20

87651216

SUPPORT ASSY.

Bracket

1шт.

21

87342073

SENSOR

Chopper RPM Speed Sensor

1шт.

22

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
