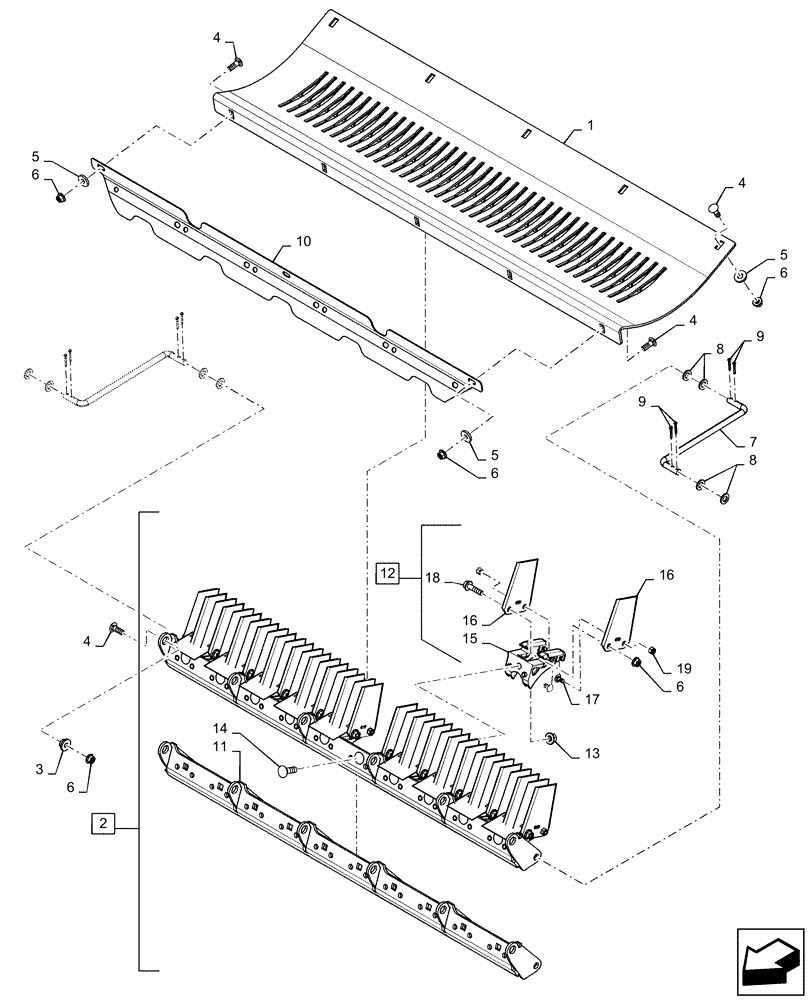

Запчасти Case IH 9230 (73.230.AK[04]) - KNIFE ASSY, DELUXE, 40 BLADE, MAGNACUT (73) - RESIDUE HANDLING

1

47453079

KNIFE GUIDE

Chopper, 40 Blade

1шт.

2

47465204

KNIFE ASSY

Chopper, 40 Blade, Incl 6, 11 - 19

1шт.

3

84231043

BUSHING,10.5mm ID x 27mm OD x 12mm Thk

6шт.

4

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

16шт.

5

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

10шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

18шт.

7

84191697

ROD,12.7mm OD x 277.7mm OAL

Connecting

2шт.

8

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

9

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

8шт.

10

47418699

GUIDE

Deflector

1шт.

11

47453083

BAR

Knife Mounting

1шт.

12

47418345

KNIFE ASSY

Fine Cut, 40 Blade, Incl 6, 15 - 19

10шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

14

87698852

CARRIAGE BOLT,M12 x 40mm, Cl 10.9

10шт.

15

47373783

KNIFE HOLDER

Fine Cut

1шт.

16

84376117

BLADE

Stationary

4шт.

17

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

18

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

2шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.
