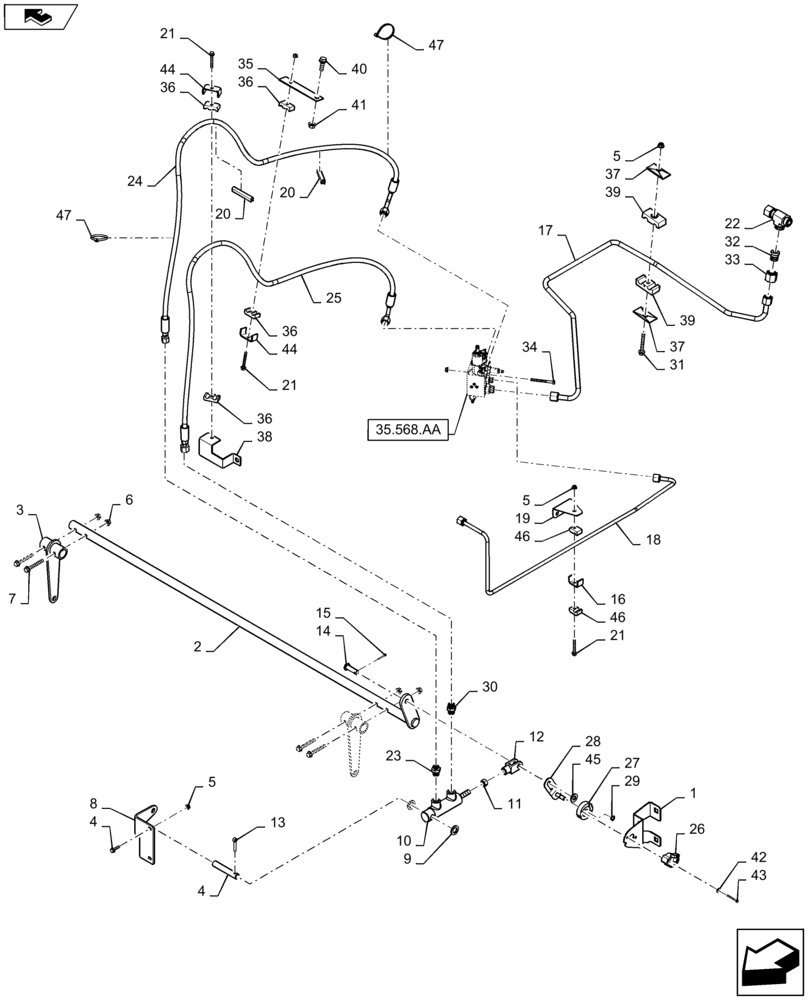

Запчасти Case IH 9230 (73.230.AK[02]) - ADJUSTER, HYDRAULIC SYSTEM, KNIFE ASSY (73) - RESIDUE HANDLING

1

84367648

BRACKET

Pivot

1шт.

2

84353544

SHAFT

Pivot Adjustment

1шт.

3

87670419

ARM ASSY.

Pivot

2шт.

4

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

5

86050300

FLANGE NUT,M6 x 1.0, Cl 10

7шт.

6

87681210

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

7

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

4шт.

8

47404879

BRACKET

Adjustment Cylinder Mount

1шт.

9

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

2шт.

10

84333218

LIFT CYLINDER,Double Acting, 16mm Rod, 45mm Stroke

Knife Bank Adjustment

1шт.

11

337475

NUT,M12, Cl 10

1шт.

12

84333575

CLEVIS,M12 x 1.75

Short M12 x 24mm

1шт.

13

412687

COTTER PIN,6.3mm OD x 32mm OAL

1шт.

14

321018

CLEVIS PIN,12mm OD x 44mm L

1шт.

15

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

16

433101

SUPPORT

Clamp

1шт.

17

47405122

HYD TUBE

Counter Knife Return

1шт.

18

47394727

HYD TUBE

Counter Knife Supply

1шт.

19

47408148

BRACKET

Valve Support

1шт.

20

291186

PROTECTION STRIP,9.9mm W

Edge Channel

1шт.

21

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

3шт.

22

84989850

3 WAY CONNECTION

Swivel, 16mm

1шт.

23

84294527

HYD CONNECTOR,M16 x 1.5 ORB x 9/16" - 18 ORFS

6mm ORFS x M16 ORB

1шт.

24

47393228

HYDRAULIC HOSE,6.35mm ID x 1625mm L, SAE 100R17

Counter Knife Cylinder "B" Port

1шт.

25

47393231

HYDRAULIC HOSE,6.35mm ID x 1585mm L, SAE 100R17

Counter Knife Cylinder "A" Port

1шт.

26

87330286

SENSOR

Knife Block Position

1шт.

27

87362420

MOUNT

Position Sensor Pickup

1шт.

28

84349122

BRACKET

Position Sensor Linkage

1шт.

29

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

30

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

31

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

32

84989629

HYD CONNECTOR,13/16" - 16 ORB x 1" ORFS

ORFS 5/8" x 1/2"

1шт.

33

85802819

TUBE NUT,1"-14 x 24mm L

ORFS 16mm

1шт.

34

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

35

84342783

BRACKET

Counter Knife Tube

1шт.

36

430357

CLAMP

Rubber, 42mm x 20mm x 12mm

4шт.

37

87000230

PLATE

Clamp

2шт.

38

47393223

BRACKET

Counter Knife Hoses

1шт.

39

87000139

CLAMP

1/2" x 5/8"

1шт.

40

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

41

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

42

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

43

87384106

BOLT,M4 x 42.92mm, Cl 8.8

2шт.

44

431941

SUPPORT

Tube

2шт.

45

86588502

WASHER,13mm ID x 25mm OD x 3mm Thk

1шт.

46

433008

CLAMP

Rubber

2шт.

47

86566989

CABLE TIE,208mm L

2шт.
