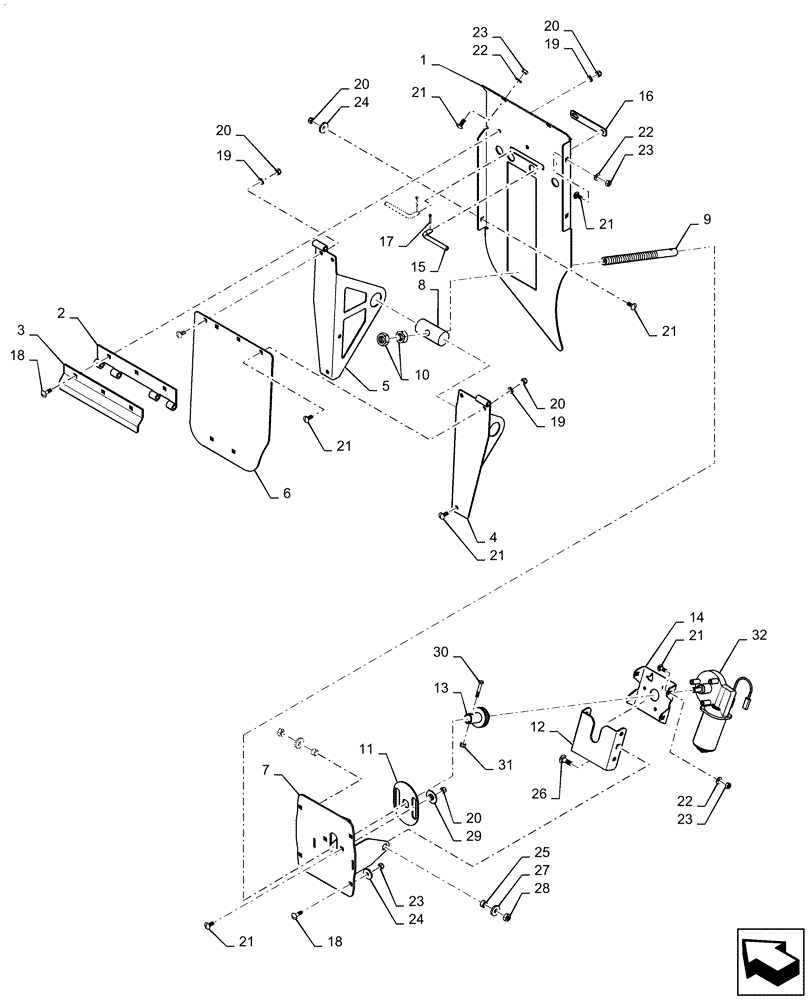

Запчасти Case IH 9230 (73.230.AG[02]) - DEFLECTOR, CHOPPING UNIT, REMOTE CONTROL (73) - RESIDUE HANDLING

1

87726081

BULKHEAD

Discharge

1шт.

2

87325654

HINGE

Plate

1шт.

3

87726083

WEAR PLATE

1шт.

4

87485544

HINGE

Triangular Cutouts, LH

1шт.

If 87485544 fails, replace with 47775345 x1, 47775347 x1, 47841454 x1, 47775343 x1, 12644931 x1, 87334 x1, 87682383 x2, 86505868 x2.

1шт.

5

87485542

HINGE

Triangular Cutouts, RH

1шт.

If 87485544 fails, replace with 47775345 x1, 47775347 x1, 47841454 x1, 47775343 x1, 12644931 x1, 87334 x1, 87682383 x2, 86505868 x2.

1шт.

6

87732857

PLATE

Deflector

1шт.

7

87485540

SUPPORT ASSY.

Plate

1шт.

8

719335

PIN,38.1mm OD x 82.6mm L

1шт.

9

87552966

WORM SCREW

1шт.

10

717506

NUT,3/4"-6

2шт.

If double nut 717506 backs off worm screw, replace with 47775345 x1, 47775347 x1, 47841454 x1, 47775343 x1, 12644931 x1, 87334 x1, 87682383 x2, 86505868 x2.

1шт.

11

87485545

SPACER

Slide

1шт.

12

87485535

BRACKET

Pivot

1шт.

13

87553176

SHAFT ASSY.

Hub

1шт.

14

87479642

MOUNTING PLATE

Motor

1шт.

15

87325655

PIN,9.53mm OD x 91.8mm OAL

Securing

2шт.

16

87726088

STRAP

Retaining

1шт.

17

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

18

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

5шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

20

86629542

NUT,M8 x 1.25, Cl 8.8

14шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

17шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

23

9706690

NUT,M8 x 1.25, Cl 8

8шт.

24

140041

WASHER,M8 x 28mm OD x 3mm Thk

3шт.

25

86615036

SPACER

10.2mm ID x 9mm

2шт.

26

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

27

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

2шт.

28

100016

NUT,M10 x 1.5, Cl 8

2шт.

29

87374162

BUSHING,9mm ID x 35mm OD x 6mm L

Support

2шт.

30

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

31

353308

NUT,M6 x 1.0, Cl 8

1шт.

32

87488680

ELECTRIC MOTOR

In Cab Adjust

1шт.

32

87488680R

REMAN-ELECTRIC MOTOR

In Cab Adjust

1шт.

32

87488680C

CORE-ELECTRIC MOTOR

Return Number

1шт.
