Запчасти Case IH 9230 (73.210.AV) - VAR - 425359, 425360, 425427, 425428 - STRAW CHOPPER, SPLINED, COUPLING (73) - RESIDUE HANDLING

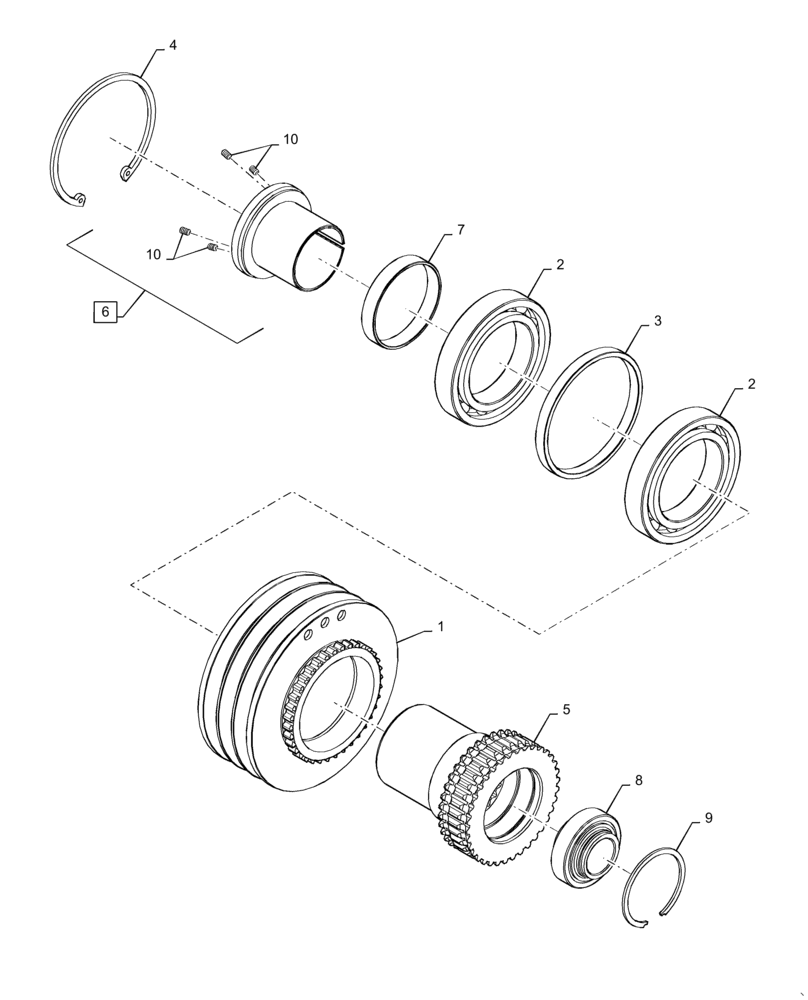

Схема запчастей Case IH 9230 - (73.210.AV) - VAR - 425359, 425360, 425427, 425428 - STRAW CHOPPER, SPLINED, COUPLING (73) - RESIDUE HANDLING
8
5
4
9
6
10
10
2
3
7
1
2

Артикул

Название

Примечание

Количество

1

87510526

PULLEY,185mm OD

3 Groove, W/O Remote Shift

1шт.

1

84220768

PULLEY

3 Groove, W/ Remote Shift

1шт.

2

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

2шт.

3

87510529

SPACER,114.3mm ID x 124.5mm OD x 11mm L

1шт.

4

388294

SNAP RING,M125 x 4mm Thk, Internal

1шт.

5

84169026

SPLINED COUPLING,36 Tooth

W/ O Remote Shift

1шт.

5

84220767

HUB

W/ Remote Shift

1шт.

6

84194916

HUB ASSY.

Concentric, Incl 10

1шт.

7

84169027

SPACER,80.5mm ID x 86mm OD x 15mm L

1шт.

8

86976370

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

1шт.

9

131692

SNAP RING,2.8" ID x 3" OD x 0.095" Thk, External

1шт.

10

87019103

SET SCREW,M6 x 10mm

M6 x 10mm OAL

4шт.

Выбрано товаров: 12
