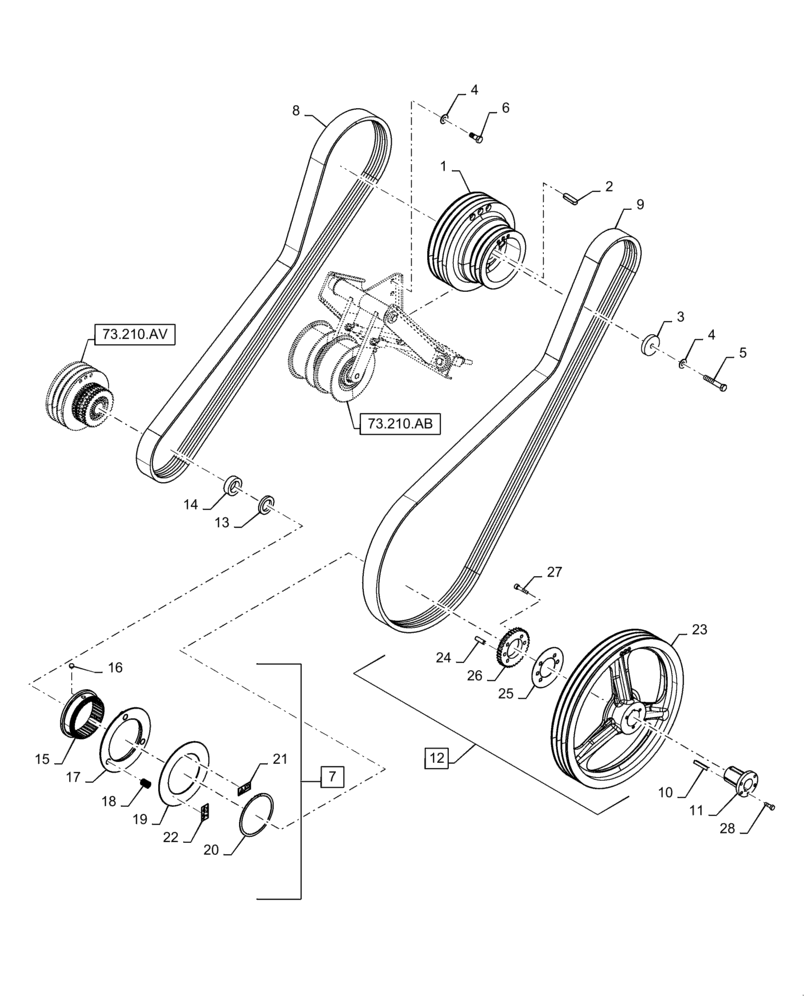

Запчасти Case IH 9230 (73.210.AD[01]) - VAR - 722761 - DRIVE, STRAW CHOPPER, BELT (73) - RESIDUE HANDLING

1

87281239

PULLEY,275mm OD

Drive

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

5

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

6

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

7

47581446

COLLAR

Assy, Chopper Shift, Incl 15 - 22

1шт.

8

86976208

V-BELT,3 Rib, 2720mm Nominal Length

1шт.

9

86517680

V-BELT,3 Rib, 3045mm Nominal Length

1шт.

10

87485

KEY,50.8mm OAL x 7.96mmThk

1шт.

11

87107341

BUSHING,34.9mm ID x 74.6mm Thk

1шт.

12

87283588

PULLEY

Chopper, Incl 23 - 27

1шт.

13

84223290

SPACER,35.5mm ID x 54mm OD x 7.5mm OAL

1шт.

14

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

Locking

1шт.

15

87283579

COLLAR,36T

Shifter, 36 Teeth, 145mm OD x 111.252mm Minor, 117.602mm Major

1шт.

16

87038215

BALL,10mm OD, Gr 200

3шт.

17

87283580

RING,131.25mm ID x 15mm Thk

Release

1шт.

18

87283583

COMPRESSION SPRING,12.44mm ID x 31.75mm Free Length

3шт.

19

87283581

PLATE,125.25mm ID x 200mm OD x 3.025mm Thk

1шт.

20

87283582

RETAINER,119.253mm ID x 125.603mm OD x 1.829mm Thk

Ring

1шт.

21

87282352

DECAL

Hot

2шт.

22

87282418

DECAL

High / Low

2шт.

23

87283586

PULLEY,467.7mm OD

Chopper, Splined

1шт.

24

87301554

PIN,10mm OD x 35mm OAL

2шт.

25

87325137

PLATE

Chopper Shift

1шт.

26

87283587

GEAR,36T

36 Teeth

1шт.

27

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

4шт.

28

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.
