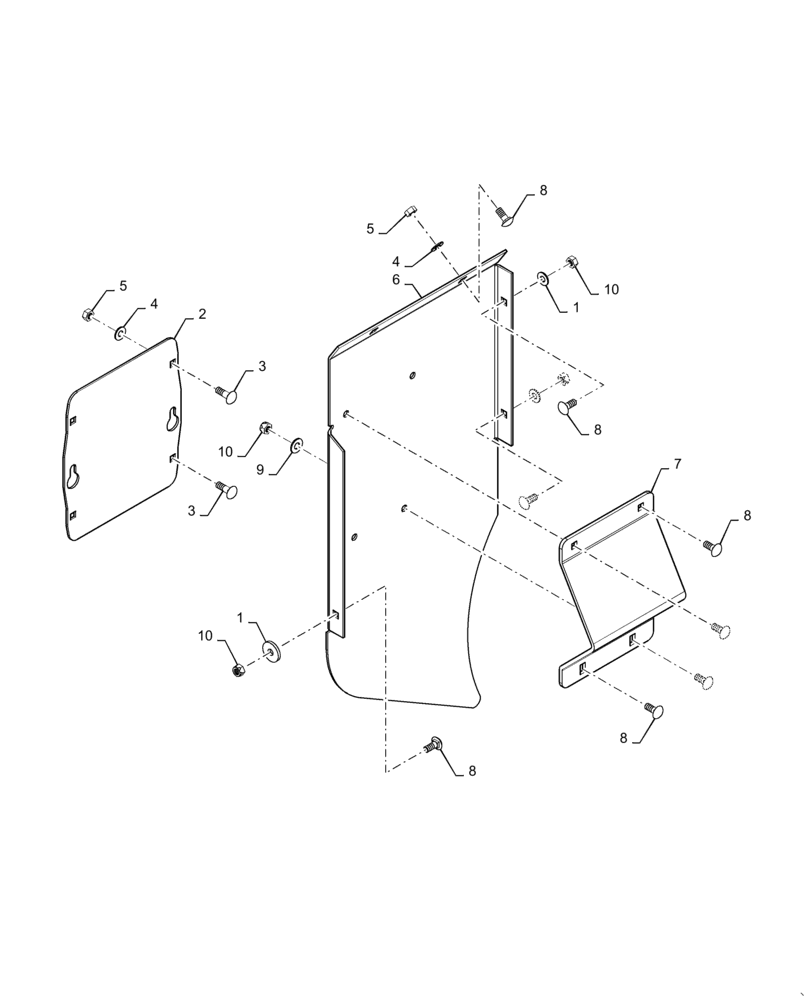

Запчасти Case IH 9230 (72.350.AJ[03]) - VAR - 722759 - DEFLECTOR, CHOPPING UNIT (72) - SEPARATION

1

140041

WASHER,M8 x 28mm OD x 3mm Thk

1шт.

2

87727894

COVER PLATE

Discharge Deflector

1шт.

3

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

5

9706690

NUT,M8 x 1.25, Cl 8

6шт.

6

87550492

BULKHEAD

RH, Rotor Discharge

1шт.

7

87550493

DEFLECTOR

Rotor Discharge

1шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.
