Запчасти Case IH 9230 (72.350.AI[01]) - VAR - 722759 - DRIVE SHAFT, BEATER, BSN YDG218540 (72) - SEPARATION

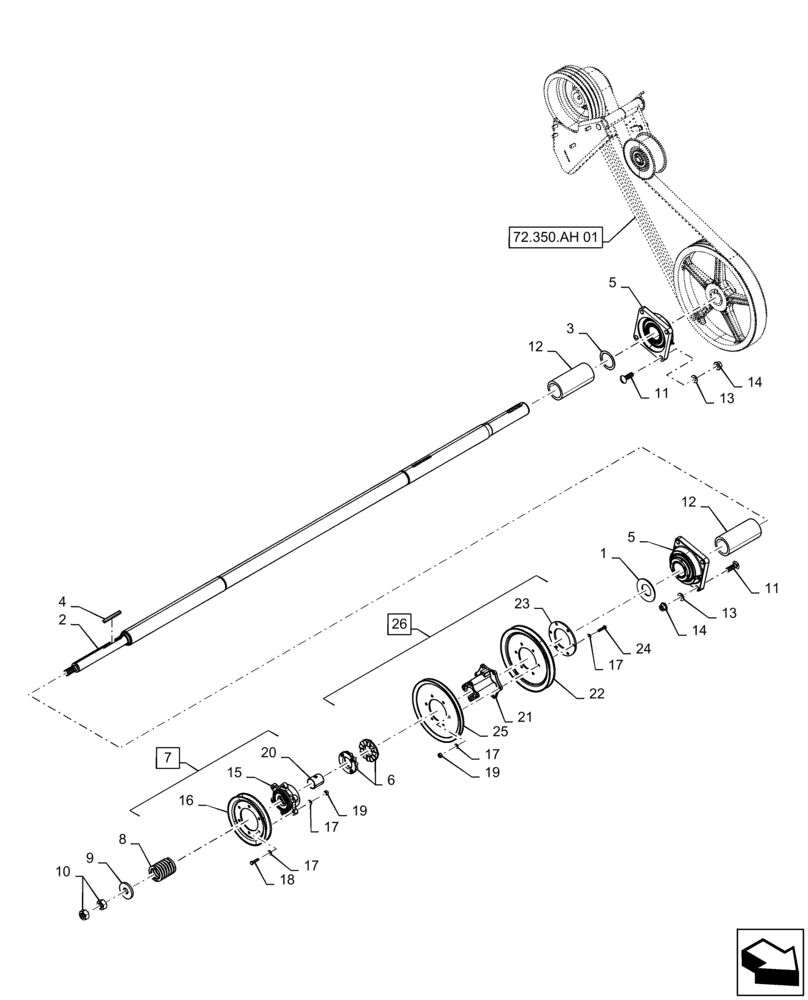

Схема запчастей Case IH 9230 - (72.350.AI[01]) - VAR - 722759 - DRIVE SHAFT, BEATER, BSN YDG218540 (72) - SEPARATION
1
24
13
14
13
14
5
2
3
10
15
72.350.ah 01
17
18
11
17
11
6
26
25
12
19
16
4
8
22
23
5
12
21
7
17
17
20
9
19

Артикул

Название

Примечание

Количество

1

87011857

BELLEVILLE WASHER,51mm ID x 100mm OD x 3mm Thk

1шт.

2

47505622

SHAFT

Beater Drive

1шт.

3

87397720

SHIM

63.5mm ID x 82.55mm OD x 1mm Thk

1шт.

4

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

1шт.

5

47663490

BEARING ASSY

61.913mm ID x 175mm OD x 70mm Thk

2шт.

6

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

2шт.

7

87629096

PULLEY,218mm OD

Tailings Drive, Incl 15 - 20

1шт.

8

420927

SPRING,110mm Free Length

1шт.

9

86997063

GROOVED BUSHING,50.04mm ID x 94.49mm OD x 20.83mm Thk

1шт.

10

9848973

NUT,M24 x 3.0, Cl 10

2шт.

11

87698768

CARRIAGE BOLT,M16 x 60.9mm, Cl 10.9

8шт.

12

87397716

BUSHING

63.5mm ID x 82.55mm OD x 181mm OAL

2шт.

13

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

14

86512498

FLANGE NUT,M16 x 2, Cl 10

8шт.

15

87619879

HUB,44.0125mm ID x 62mm Thk

Tailings Drive

1шт.

16

86999341

PULLEY,218mm OD

Tailings Drive

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

18

86639209

BOLT,M8 x 1.25 x 40.45mm, Cl 10.9

6шт.

19

43362

NUT,M8 x 1.25, Cl 10

12шт.

20

86997496

BUSHING,40.09mm ID x 44.09mm OD x 50mm L

1шт.

21

84544453

HUB

Clean Grain Elevator Drive, 40.012mm ID x 109.6mm Thk

1шт.

22

84128455

PULLEY ASSY.

Clean Grain Elevator Drive, Single Speed,100mm ID x 281mm OD x 30mm Thk

1шт.

22

86999007

PULLEY,335mm OD

Clean Grain Elevator Drive, 2 - Speed, 100mm ID x 344.8mm OD

1шт.

23

84252607

RING,90mm ID x 150mm OD x 6mm Thk

1шт.

24

84042348

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

6шт.

25

84533567

PULLEY,269mm OD

Clean Grain Elevator Drive

1шт.

26

84556993

PULLEY

Clean Grain Elevator Drive, Single Speed, Incl 17, 19, 21 - 25

1шт.

26

84556994

PULLEY

Clean Grain Elevator, 2 - Speed, Incl 17, 19, 21 - 25

1шт.

Выбрано товаров: 28
