Запчасти Case IH 9230 (66.331.AB[04]) - GEARBOX, ROTOR, GEAR SHAFT (66) - THRESHING

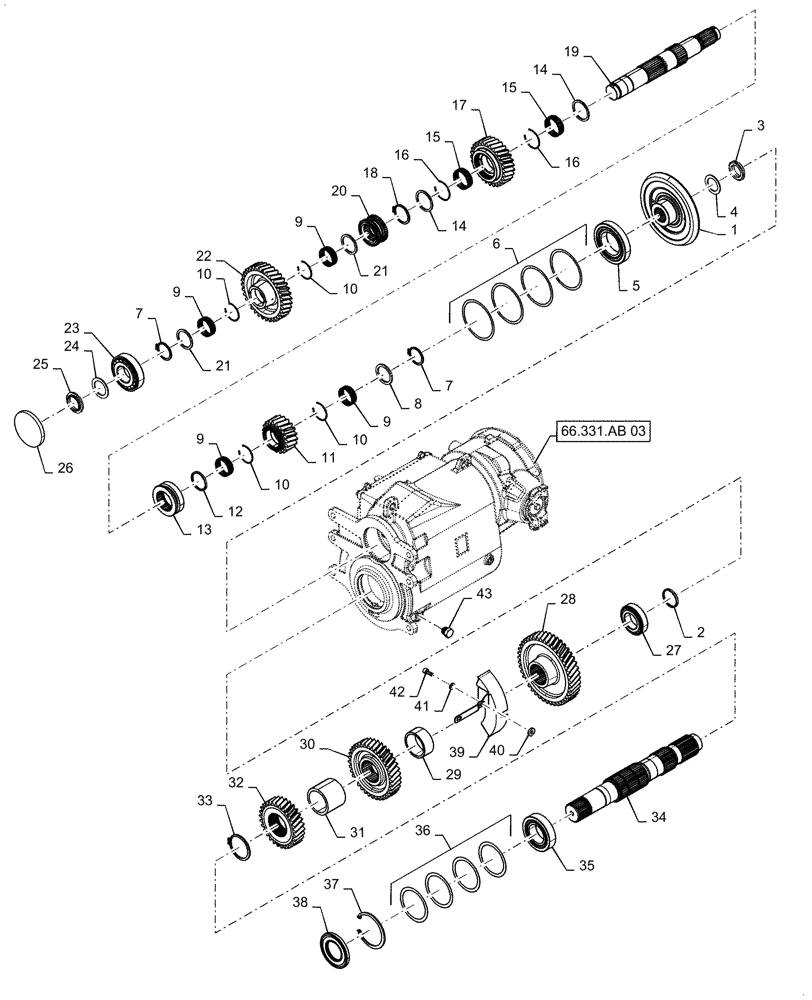

Схема запчастей Case IH 9230 - (66.331.AB[04]) - GEARBOX, ROTOR, GEAR SHAFT (66) - THRESHING
8
10
43
39
34
9
36
26
9
20
13
28
4
40
10
16
38
6
23
17
9
15
1
18
12
24
22
33
16
3
14
15
5
41
31
7
27
10
30
7
42
32
2
21
29
9
14
10
11
25
37
19
66.331.ab 03
35
21

Артикул

Название

Примечание

Количество

1

87688722

GEAR SET,Bevel, 41 Tooth/18 Tooth

1шт.

2

87280587

PLUG

Cover

2шт.

3

87031062

BEARING LOCK NUT,M45 x 1.5

1шт.

4

87281243

THRUST WASHER

Gear

1шт.

5

87280579

BEARING ASSY,80mm ID x 140mm OD x 28.25mm W

1шт.

6

87743037

SHIM KIT

Gearbox

1шт.

7

800-5155

SNAP RING,M55 x 3mm Thk, External

2шт.

8

87684703

THRUST WASHER

Bearing

1шт.

9

87282441

KIT,55 mm ID x 60 mm OD x 20 mm

Bearing

4шт.

10

87280998

SNAP RING,59.9mm ID x 1.5mm Thk, Internal

4шт.

11

87684701

GEAR

Driver, 1st, 19T

1шт.

12

87684704

THRUST WASHER,55.2mm ID x 64.8mm OD x 5mm Thk

1шт.

13

87282384

COLLAR,31T / 38T

1шт.

14

87282385

THRUST WASHER

Bearing

2шт.

15

87282440

KIT,60 mm ID x 65 mm OD x 20 mm

Bearing

2шт.

16

87280999

SNAP RING,60mm ID x 65mm OD x 20mm Thk

2шт.

17

87282386

GEAR

Driver, 2nd, 28T

1шт.

18

86625143

RING,M60 x 3mm Thk, External

1шт.

19

87684680

SHAFT

Intermediate

1шт.

20

87280583

COLLAR,28T Internal / 40T External

1шт.

21

87282496

THRUST WASHER

Bearing

2шт.

22

87684677

GEAR

Driver, 3rd, 34T

1шт.

23

86509784

BEARING ASSY,55mm ID x 120mm OD x 31.5mm W

1шт.

24

87031063

THRUST WASHER

Bearing

1шт.

25

87020897

BEARING LOCK NUT,M50 x 1.5

1шт.

26

375413A1

CAP

Cover Plug

1шт.

27

87280588

BEARING ASSY,55mm ID x 100mm OD x 26.75mm W

1шт.

28

87280589

GEAR

Driven, 1st, 43T

1шт.

29

87280590

SPACER

1st & 2nd Gear

1шт.

30

87280591

GEAR

2nd, 36T

1шт.

31

87280592

SPACER

2nd & 3rd Gear

1шт.

32

87684678

GEAR

Driven, 3rd, 29T

1шт.

33

800-5180

SNAP RING,M80 x 3mm Thk, External

1шт.

34

87280595

SHAFT

Output

1шт.

35

87281035

BEARING ASSY,65mm ID x 120mm OD x 32.75mm W

1шт.

36

87281006

SHIM KIT

Output Shaft

1шт.

37

412270

SNAP RING,M120 x 4mm Thk, Internal

1шт.

38

87020821

OIL SEAL,65mm ID x 120mm OD x 10mm Thk

1шт.

39

87280599

WRAPPER

Assembly

1шт.

40

87281116

SPACER

Wrapper

1шт.

41

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

42

86625209

HEX SOC SCREW,M10 x 35mm, Cl 12.9

2шт.

43

87108781

PLUG

Magnetic

1шт.

Выбрано товаров: 43
